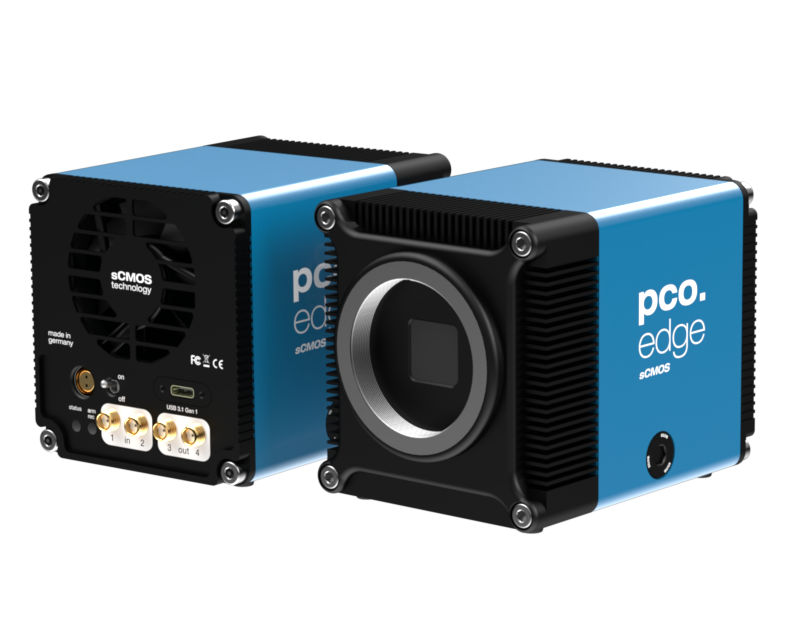

pco.edge USB-sCMOS-Kameras

Excelitas pco.edge 26 USB sCMOS camera features a 5120 x 5120 pixel resolution with 2.5 x 2.5 µm pixel size to achieve highest spatial resolution critical for imaging in microscopy, quality control, high throughput screening, and other mesoscopic applications. The pco.edge 26 camera also offers optimal performance for microscopy imaging with low magnification. In addition, its true charge domain global shutter allows for an exceptionally low readout noise and dark current. Combined with its adjustable cooling feature, the pco.edge 26 allows extended exposure times of up to 60 seconds.

The pco.edge 5.5 USB camera is equipped with a well-established scientific CMOS (sCMOS) sensor that provides crisp images and precise measurements. The pco.edge 5.5 sCMOS camera features an option to upgrade with a water-cooling system and is ideally suited for applications that require high resolution, high frame rates, best 16-bit dynamic range, selectable shutter variants and an optional color sensor.

The pco.edge 4.2 LT scientific camera features a scientific CMOS (sCMOS) sensor to achieve crisp images and precise measurements. With 2048 x 2048 pixel high resolution and 6.5 µm pixel size, this sCMOS camera is most suitable for users who require highest quantum efficiency, best 16-bit dynamic range, and extremely low readout noise.

The pco.edge 4.2 USB scientific camera is equipped with an innovative scientific CMOS (sCMOS) sensor that allows exceptional image quality and precise measurements. With the ability to capture crisp images, the pco.edge 4.2 USB sCMOS camera system is ideal for applications requiring highest quantum efficiency, best 16-bit dynamic range, high frame rates, long exposure times, and extremely low readout noise.

The pco.edge 4.2 bi sCMOS camera features back-illuminated sensor technology with a quantum efficiency of up to 95 %. This compact sCMOS camera provides 2048 x 2048 pixel resolution and 6.5 μm pixel size for achieving highest image quality. Its adjustable cooling system offers flexibility in the use of either air or water to cool the sensor down to -25 °C and reduce dark current to 0.2 e^-/pixel/s for maximum imaging performance. The pco.edge 4.2 bi camera comes with an input window available for either UV or VIS wavelength ranges to best suit your application.

The pco.edge 4.2 bi UV is built on the trusted pco.edge series of scientific CMOS cameras with modern back-illuminated sensor technology. It offers a 2048 x 2048 pixel high resolution and 6.5 x 6.5 μm² pixel size for high quality imaging. Featuring a specialized input window, this UV sensitive sCMOS camera can achieve high quantum efficiency in the ultraviolet wavelength range.

The pco.edge 4.2 bi XU features a back-illuminated sCMOS sensor with extremely specific coating ideally suited for use in applications in the visible light down to extreme UV (EUV) and soft X-ray radiation. Featuring 2048 x 2048 pixel resolution and 6.5 μm pixel size, the pco.edge 4.2 bi XU allows full frame acquisitions at 40 fps with a dynamic range of 88 dB at a noise level of 1.9 e^-.

The pco.edge 3.1 USB camera is equipped with an innovative scientific CMOS sensor to achieve crisp images and precise measurements. This camera features a high-resolution of 2048 x 1536 pixels, high frame rates, best 16-bit dynamic range, selectable shutter variants and an optional color sensor. Furthermore, the pco.edge 3.1 features outstanding low read-out noise of 1.1 electrons median even at the maximum speed of 50 fps at full resolution for superior image quality.
