MWIR Thermal Cameras

Excelitas offers a variety of MWIR thermal cameras that provide exceptional optical performance within a compact space envelope. Ranging from long range, High Definition solutions outputting digital video, to medium range, standard definition variants with a selection of output types, our MWIR thermal cameras offer system designers and end users with greatest flexibility to best meet performance and budget requirements. The MWIR waveband is suitable for imaging in marine or tropical environments, making Excelitas MWIR cameras well suited for border and coastal surveillance, C-UAS applications and naval and maritime applications.

Product List

Part Number
120300

OrcIR Long Range High Definition Thermal Imager

OrcIR is a High-Definition (HD) Mid-Wave-Infrared (MWIR) Thermal Imaging Camera. The camera combines a ruggedized x14 continuous zoom capability with the very latest in High-Operating Temperature (HOT) MWIR detector technology providing exceptional imagery. OrcIR has been developed to provide extended range performance for applications including Counter-UAS and Surveillance platforms. An optional tilted window makes it particularly suited for marine/naval applications including surveillance and fire control applications.
Part Number
--

RaptIR High-Definition MWIR Camera

RaptIR is a High-Definition (HD) Mid-Wave-Infrared (MWIR) Thermal Imaging Camera utilizing state-of-the-art small pixel pitch technology. The camera combines a ruggedized x14 continuous zoom capability with the very latest 8µm High Operating Temperature (HOT) detector to provide exceptional image clarity and range performance. RaptIR delivers long-range surveillance and target identification in a low SWaP package including long life linear cooler and low noise operation.
Part Number
--

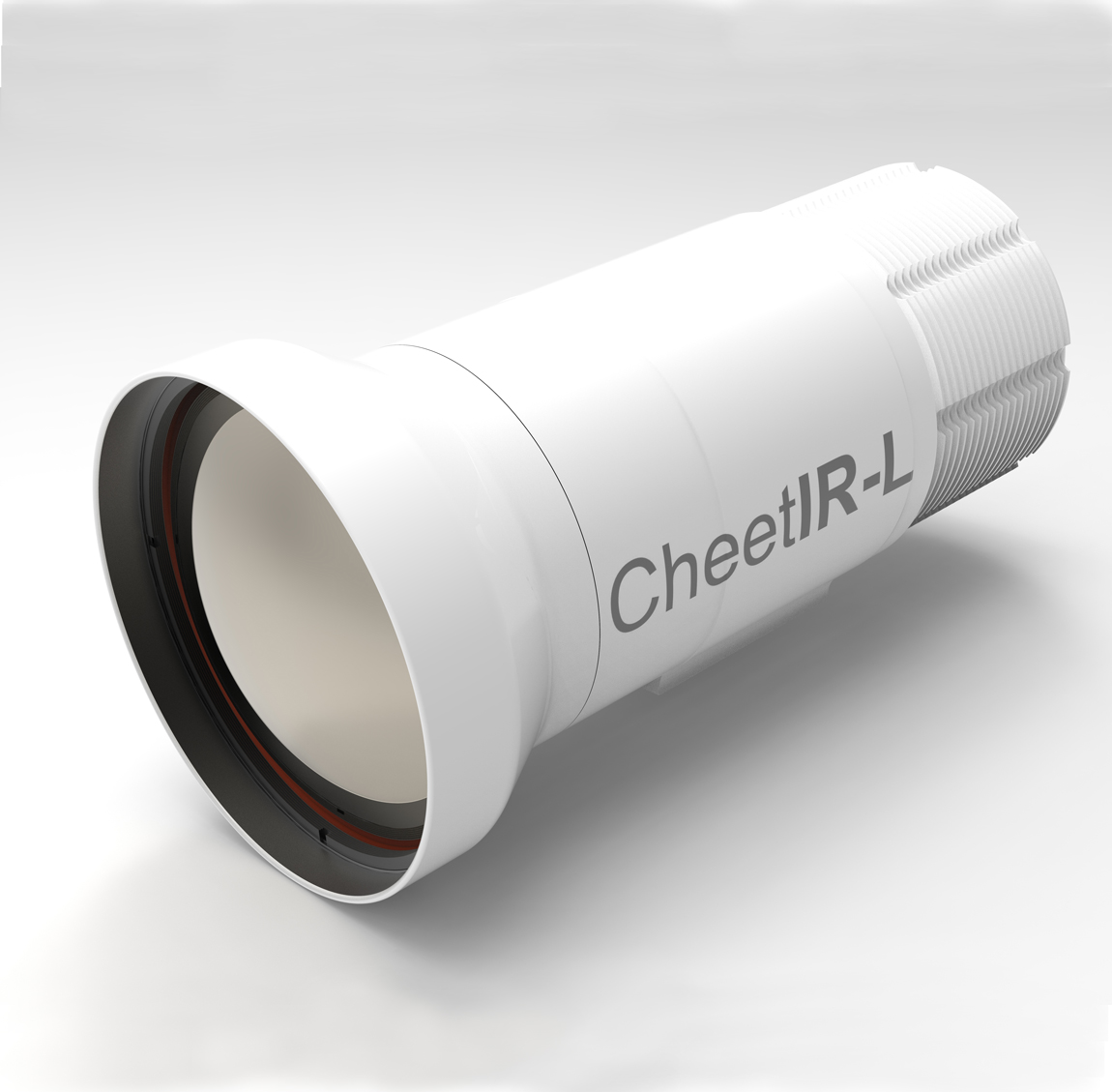

CheetIR-L High-Definition, Long Range MWIR Camera

CheetIR-L is a High-Definition (HD) Mid-Wave-Infrared (MWIR) Thermal Imaging Camera. The camera combines a ruggedized x13.5 continuous zoom capability with the very latest in High-Operating Temperature (HOT) MWIR detector technology providing exceptional imagery. CheetIR-L delivers long-range surveillance and target identification in a compact volume. CheetIR-L has numerous applications including Anti-drone, Mobile Short-Range Air Defense (M-Shorad), Targeting and Surveillance.
Part Number
--

CheetIR-C Compact, High Definition MWIR Camera

CheetIR-C is a High Definition (HD) Mid-Wave Infrared (MWIR) thermal imaging camera. The camera combines a x13.5 continuous zoom capability with the very latest in High-Operating Temperature (HOT) MWIR detectors to provide exceptional imagery in a compact form. The combination of performance and size makes it ideally suited as a stand alone camera or for integration within sighting system upgrades including under armor, or other OEM applications.
Part Number
--

CheetIR-Cub Compact, Standard Definition MWIR Camera

CheetIR-Cub provides an affordable, low weight, low power MWIR thermal imaging camera. With analogue video output (PAL), the CheetIR-Cub thermal camera can be retrofitted into existing platforms as an upgrade solution, enhancing system performance. The CheetIR-Cub incorporates a 640 x 512 10μm focal plane array (FPA) providing enhanced resolution for better target discrimination. Additionally, the integrated linear cooler results in a quieter solution for applications where low audibility is essential.
