Excelitas Blue Chip Detonators
PART/ 327920, 327912, 324490, 324236, 332123, 324337, 324638

Blue Chip Detonators

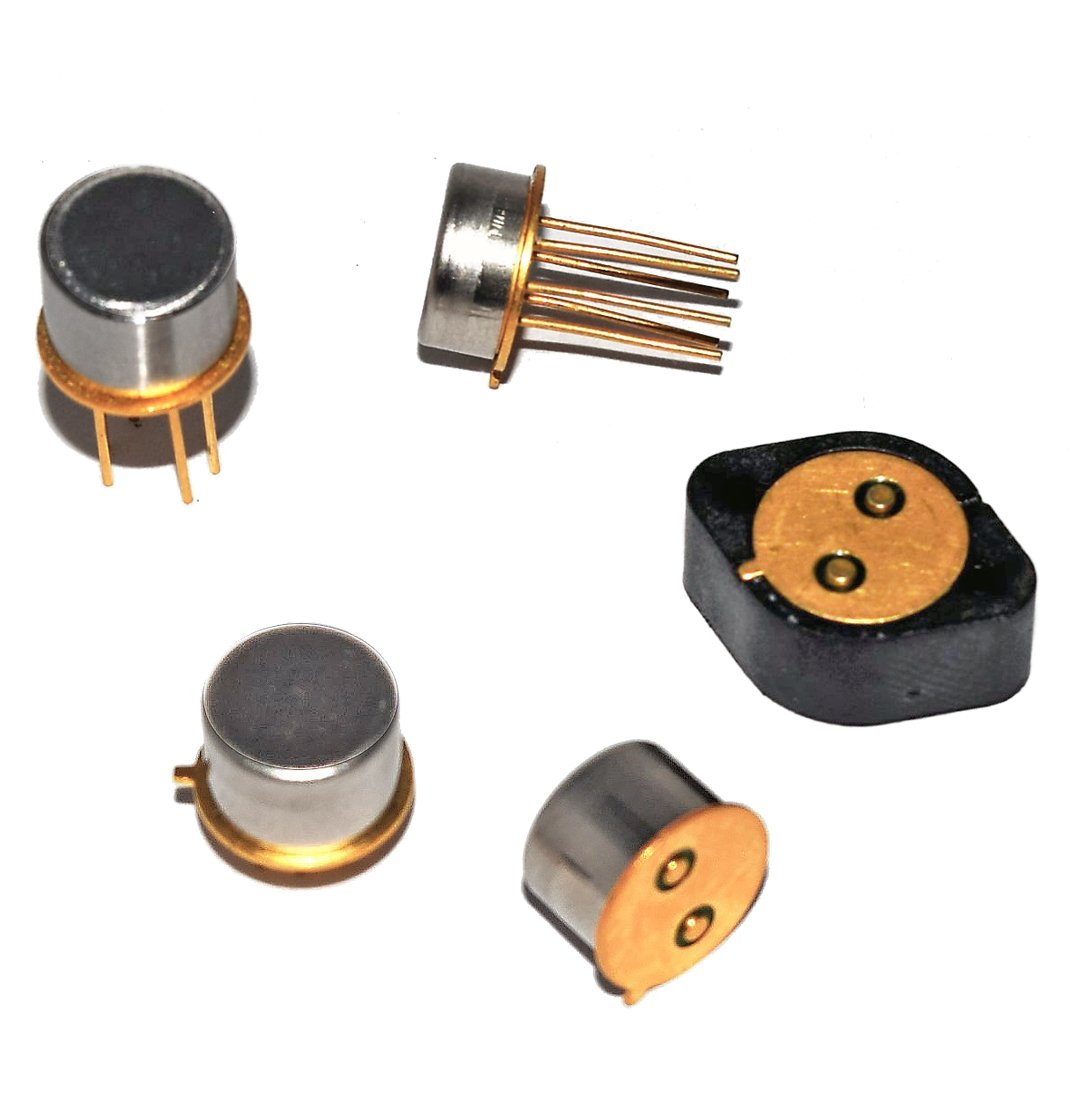

The Blue Chip® family of low-energy chip slapper detonators is designed for a wide variety of applications. The detonators have been qualified to MIL-DTL-23659 Appendix A and are qualified for use in-line. All versions of the detonator feature the same basic shape with variations in the explosive column.

The chip slapper consists of an exploding metal foil, covered by a polyimide flying plate, deposited on a ceramic “chip” substrate. The assembly is laser welded to ensure the device is hermetic to a leak rate as low as 10-9 atm-cc/sec. Excelitas manufactures Blue Chip Detonators with either 2 or 6 pin TO-5 headers that can be utilized as surface mount, plugged into a connector, or attached to a flexible tape strip line.

  • Low firing energy
  • MIL-DTL-23659 qualified
  • MIL-STD-1316 compliant design
  • MIL-STD-1901 compliant design
  • Hermetic to 10-9 atm-cc/sec
  • Demonstrated ability to initiate various booster and main charges
  • Wide temperature operating range (-196° to 200°C)
  • Multiple configurations
  • Full lot and serialization control



Drawing #

# Pins

Firing Energy

Max. Explosive Load

Description

327920

6 Pin

Low

0.12 g HNS IV

Standard Profile

327912

6 Pin

Low

0.30 g PBXN-5

Dual Load (HNS IV / PBXN-5)

324490

6 Pin

Low

0.17 g HNS IV

Integral Sleeve Shock Hardened

324236

2 Pin

Low

0.12 g HNS IV

Standard Profile

332123

6 Pin

Low

0.03 g HNS IV

Low Profile

324337

6 Pin

Low

0.27 g HNS IV

Large Volume

324638

6 Pin

Low

0.12 g HNS IV

High Temperature





Drawing #

# Pins

Firing Energy

Max. Explosive Load

Description

327920

6 Pin

Low

0.12 g HNS IV

Standard Profile

327912

6 Pin

Low

0.30 g PBXN-5

Dual Load (HNS IV / PBXN-5)

324490

6 Pin

Low

0.17 g HNS IV

Integral Sleeve Shock Hardened

324236

2 Pin

Low

0.12 g HNS IV

Standard Profile

332123

6 Pin

Low

0.03 g HNS IV

Low Profile

324337

6 Pin

Low

0.27 g HNS IV

Large Volume

324638

6 Pin

Low

0.12 g HNS IV

High Temperature
