HPR-1100BGH Silicon PIN Receiver - 2.5mm-PV, UV-100BG Rx, Glass Window
PART/ HPR-1100BGH

HPR-1100BGH Si PIN Receiver - 2.5mm- PV, UV-100BG Rx, Glass Window

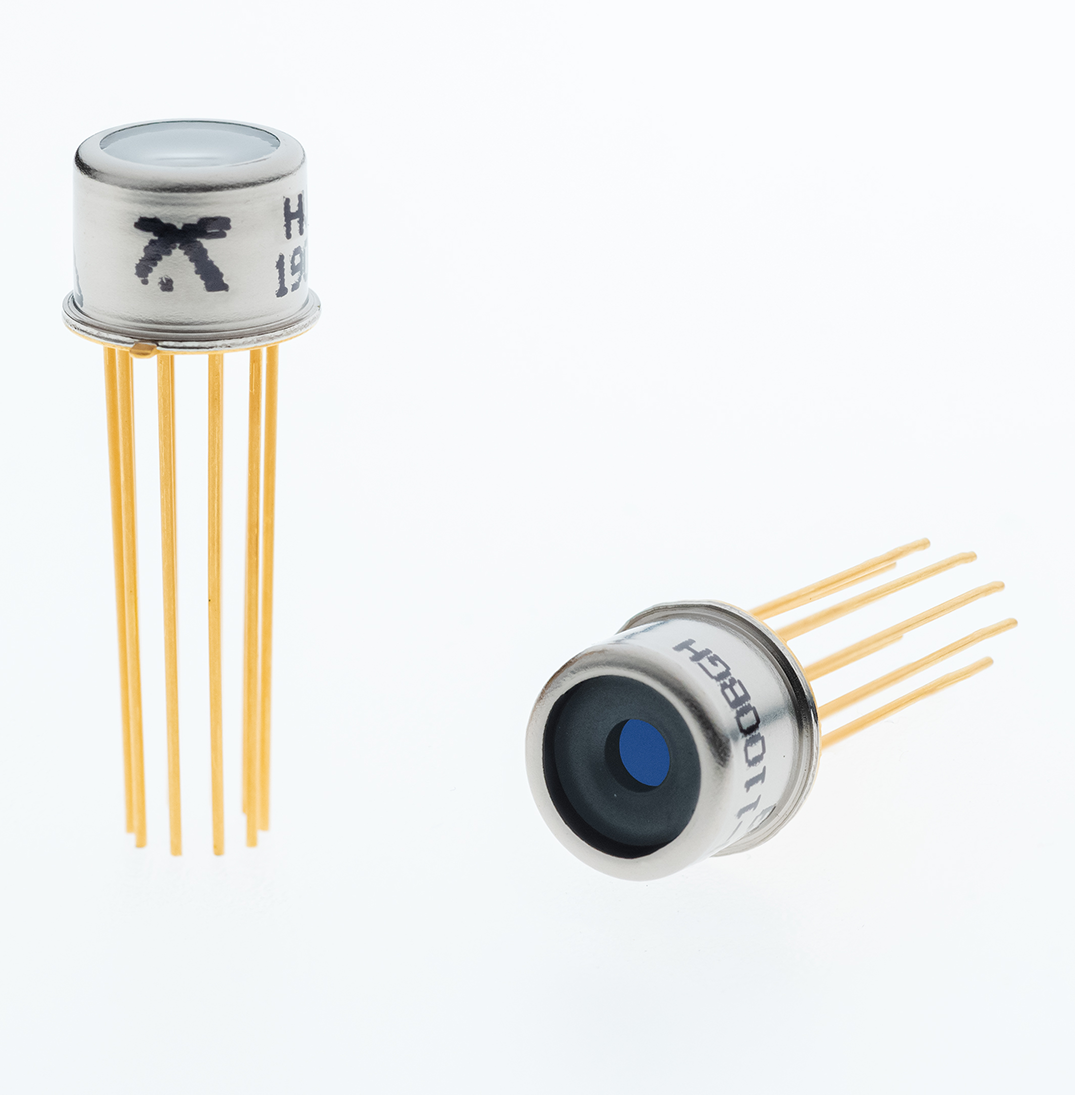

The HPR-1100BGH is a large-area Silicon PIN Amplifier Module with a 2.5 mm active diameter chip in a hermetic TO package. The HPR-1100 photodiode uses an external feedback resistor for bandwidth flexibility.

Features & Benefits:

  • Silicon PIN amplifier module
  • Custom TO hermetically-sealed package
  • 2.5 mm active diameter chip
  • Wide spectral range from 250 nm to 1150 nm
  • Large active area and built-in low noise amplifier



Applications:

  • Low frequency, high gain applications
  • Optical Power Meter
  • Fast laser trigger
  • Instrumentation
  • Simplified receiver for high-performance short-range communication links

Peak Wavelength: 900 nm

Responsivity: 130 MV/W with 200Mꭥ feedback resistor

Peak Wavelength: 900 nm

Responsivity: 130 MV/W with 200Mꭥ feedback resistor
