Micro-Optic 190° Fisheye Lens
PART/

Micro-Optic 190° FishEye Objective

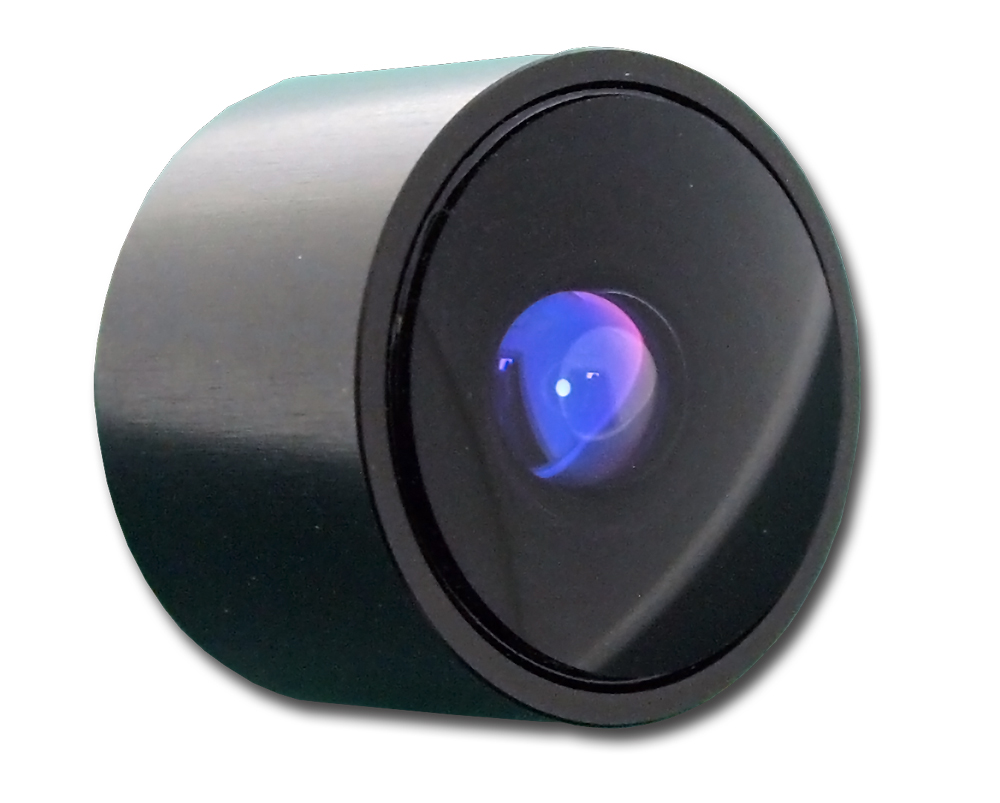

Our Micro-Optic 190° Fisheye Lenses were specifically developed for use with 1/3" Sensors in pipe and bore inspection. Measuring only 4.8 mm H x 3.6 mm Ø, this compact design can be universally adapted to cameras for the industrial sector.

Excelitas' Q-Shop ecommerce website





This lens was especially developed for use in pipe inspection. It delivers sharp images of tube walls, which allows software a two-dimensional "unfolding" of the tube. Damaged areas can now be more easily detected at a sewer inspection. Due to the compact design, the objective can be universally adapted to cameras for the industrial sector. Therefore it is ideally suited for Machine Vision, Image Processing and Surveillance Systems.

Learn more about the Micro-Optic 190° Fisheye Lenses at Qioptiq-Shop.

  • Developed for 1/3“ sensor with total effective size 4.8 mm (H) x 3.6 mm (V)
  • 190° diagonal FOV (incl. distortion)
  • Outer diameter 20 mm
  • Total length 19 mm
  • Modifications on demand



  • Focal length: 1.35 mm
  • Diagonal FOV (incl. distortion): 190°
  • Image circle: 3.3 mm
  • F-number: f/2.8
  • Object distance range through focusing: 60.0 mm - ∞
  • Average transmission: ≥ 82 %
  • Overall length (entrance surface to detector): 25 mm
  • Back focal length (distance exit surface to detector): 5 mm
  • Developed for 1/3“ sensor with total effective size 4.8 mm (H) x 3.6 mm (V)
  • 190° diagonal FOV (incl. distortion)
  • Outer diameter 20 mm
  • Total length 19 mm
  • Modifications on demand



  • Focal length: 1.35 mm
  • Diagonal FOV (incl. distortion): 190°
  • Image circle: 3.3 mm
  • F-number: f/2.8
  • Object distance range through focusing: 60.0 mm - ∞
  • Average transmission: ≥ 82 %
  • Overall length (entrance surface to detector): 25 mm
  • Back focal length (distance exit surface to detector): 5 mm
