OmniCure AC2 LED UV Curing System
PART/ AC2 Series

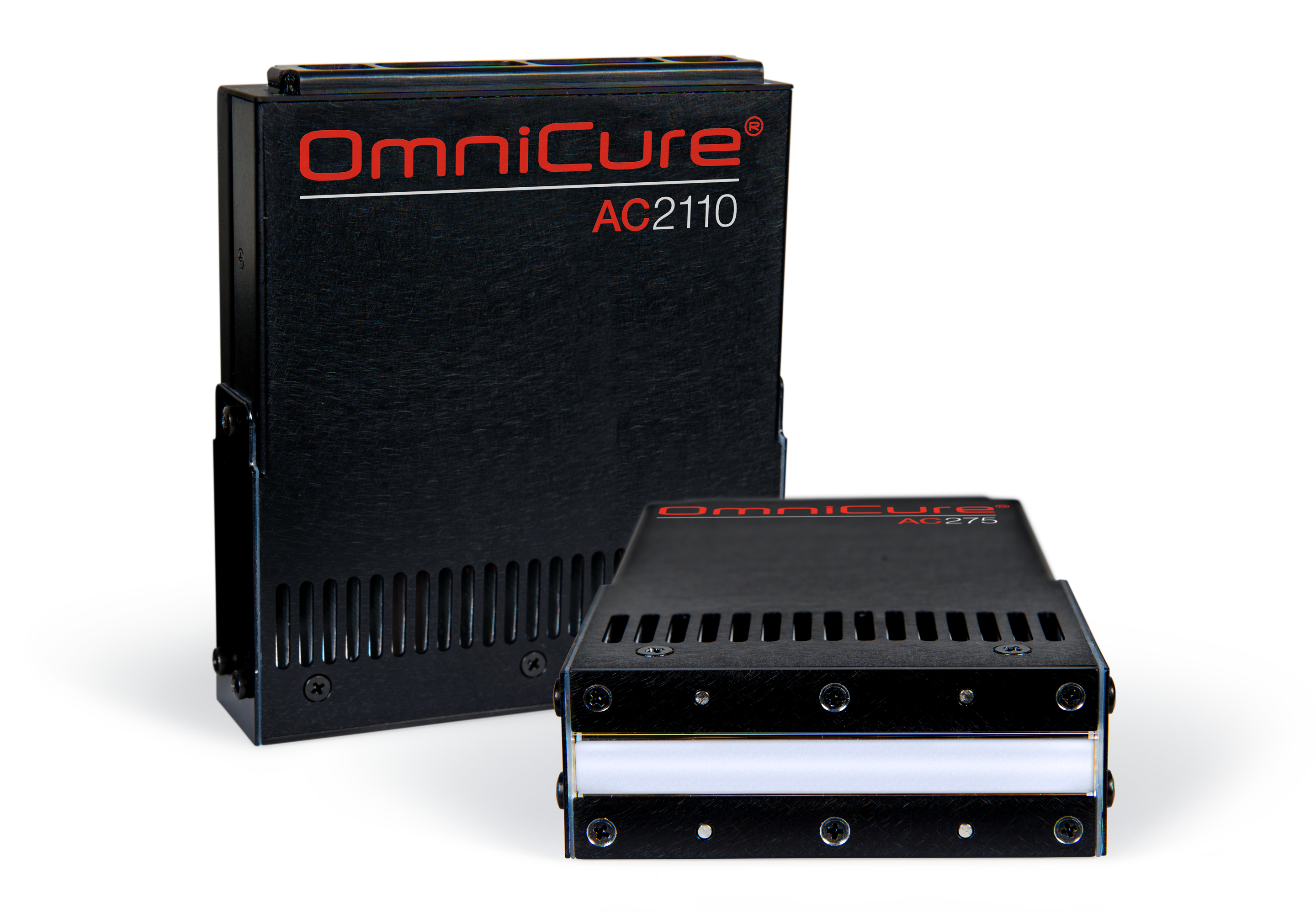

OmniCure AC2 LED Small-Area UV Curing System

OmniCure® AC2 Series offers compact, air-cooled LED UV curing systems for small-area applications. With advanced front-end optics, the AC275 and AC2110 systems deliver over 2.5 W/cm2 peak irradiance with exceptional uniformity. Our patented process for individually addressing each UV LED module output allows consistent results over the entire curing area. Multiple UV LED heads can be adjoined to achieve larger curing areas in a variety of customizable lengths while maintaining optical uniformity between each system for improved throughput without compromising on performance.

Ideal for printing applications, the OmniCure AC275 and AC2110 provide a reduced output angle from typical LED systems to help eliminate back reflection of the light to the print heads. These systems are designed with a flat outer surface that allows for easy cleaning and replacement for ongoing maintenance.



    AC275

    AC2110

    Active Optical Area

    10 x 76 mm

    10 x 114 mm

    LED Peak Wavelengths

    395 nm ± 5 nm, 365 nm ± 5 nm

    Typical Peak Irradiance (W/cm2)

    395 nm

    395 nm

    Working Distance

    1 mm

    2.6

    2.6

    3 mm

    2.3

    2.3

    5 mm

    1.9

    1.9

    10 mm

    1.2

    1.2

    15 mm

    1.0

    1.0

    20 mm

    0.8

    0.8

    Optical Power*

    13 W

    19 W

    Longitudinal Uniformity*

    Better than ± 10%

    Operating Voltage

    48 V DC ± 2 V

    Dimensions (L x W x H)

    79 x 29 x 129 mm

    117 x 29 x 129 mm

    Weight (kg)

    0.3

    0.44


    *At 100% output setting
    Note: All measurements are taken using the EIT PowerPuck II radiometer with UVA2 filter

    • Compact size: Easily integrate into applications where space constraints restrict access to the substrate
    • Output of over 2.5 W/cm2: Achieve high speed curing for inks, adhesives and coatings
    • Patented individual LED module output: Ensure superior uniformity over the entire curing area
    • Adjoining system modules: Obtain +/- 10% uniformity between heads for even and consistent curing over the curing area
    • Available in 365 nm and 395 nm: Select the optimum wavelength to best suit specific applications
    • Air-cooled design: Easily integrate into any workstation with no additional venting, ozone extraction or chillers required
    • Highly-efficient LED modules: Save costs from reduced power consumption compared to arc lamp systems
    • 20,000 hour typical lifetime: Reduce running costs when compared to arc lamp solutions
    • Narrow wavelength output of LED: Increase yields of parts due to lower temperature curing compared to arc-lamp systems



    AC275

    AC2110

    Active Optical Area

    10 x 76 mm

    10 x 114 mm

    LED Peak Wavelengths

    395 nm ± 5 nm, 365 nm ± 5 nm

    Typical Peak Irradiance (W/cm2)

    395 nm

    395 nm

    Working Distance

    1 mm

    2.6

    2.6

    3 mm

    2.3

    2.3

    5 mm

    1.9

    1.9

    10 mm

    1.2

    1.2

    15 mm

    1.0

    1.0

    20 mm

    0.8

    0.8

    Optical Power*

    13 W

    19 W

    Longitudinal Uniformity*

    Better than ± 10%

    Operating Voltage

    48 V DC ± 2 V

    Dimensions (L x W x H)

    79 x 29 x 129 mm

    117 x 29 x 129 mm

    Weight (kg)

    0.3

    0.44


    *At 100% output setting
    Note: All measurements are taken using the EIT PowerPuck II radiometer with UVA2 filter

    • Compact size: Easily integrate into applications where space constraints restrict access to the substrate
    • Output of over 2.5 W/cm2: Achieve high speed curing for inks, adhesives and coatings
    • Patented individual LED module output: Ensure superior uniformity over the entire curing area
    • Adjoining system modules: Obtain +/- 10% uniformity between heads for even and consistent curing over the curing area
    • Available in 365 nm and 395 nm: Select the optimum wavelength to best suit specific applications
    • Air-cooled design: Easily integrate into any workstation with no additional venting, ozone extraction or chillers required
    • Highly-efficient LED modules: Save costs from reduced power consumption compared to arc lamp systems
    • 20,000 hour typical lifetime: Reduce running costs when compared to arc lamp solutions
    • Narrow wavelength output of LED: Increase yields of parts due to lower temperature curing compared to arc-lamp systems
