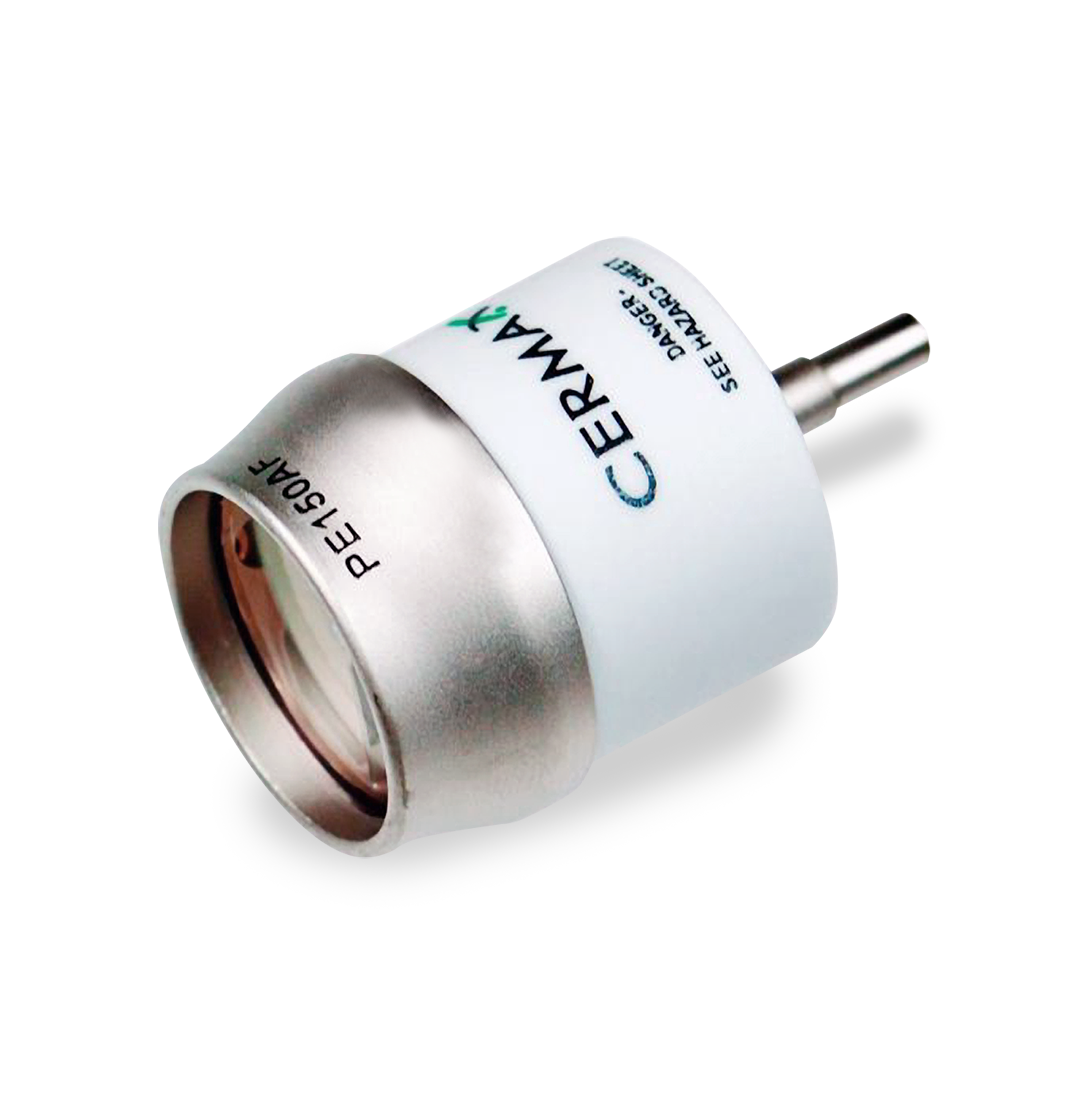

Cermax 150 Watt Parabolic Lamp
PART/ PE150AF

PE150AF Xenon Ceramic Body Parabolic Lamp, 150W

The PE150AF is the smallest lamp in the Cermax® portfolio. While small in size, it includes all the same features that has made Cermax the lamp of choice for high-intensity applications where full spectrum light is required. With its robust design, compact size and pre-aligned reflector, this lamp excels where small footprints are required.

The PE150AF features high-intensity illumination - 1,350 Lumens, with a power range of 100-150 Watts. Lamp lifetime is 1,000 hours. The PE150AF has a broad spectral range with 5,900 Kelvin color temperature, all in a compact size.

Reflector Type: Parabolic

Body Type: Ceramic

Total Visible Output: 1350 Lumens

Power - Nominal: 150 Watts

Power - Range: 100-150 Watts

Current - Nominal: 11 Amps (DC)

Current - Range: 10-14 Amps (DC)

Ignition Voltage: 23-30 kilovolts (system dependent)

Operating Voltage - Nominal: 11.7 Volts (DC)

Operating Voltage - Range: 10-13.6 Volts (DC)

Lifetime: 1000 hours typical

Temperature: 120 °C (maximum)

Radiant Output: 16 Watts

UV Output (<390 nm): 0.9 Watts

IR Output (>770 nm): 8 Watts

Reflector Type: Parabolic

Body Type: Ceramic

Total Visible Output: 1350 Lumens

Power - Nominal: 150 Watts

Power - Range: 100-150 Watts

Current - Nominal: 11 Amps (DC)

Current - Range: 10-14 Amps (DC)

Ignition Voltage: 23-30 kilovolts (system dependent)

Operating Voltage - Nominal: 11.7 Volts (DC)

Operating Voltage - Range: 10-13.6 Volts (DC)

Lifetime: 1000 hours typical

Temperature: 120 °C (maximum)

Radiant Output: 16 Watts

UV Output (<390 nm): 0.9 Watts

IR Output (>770 nm): 8 Watts
