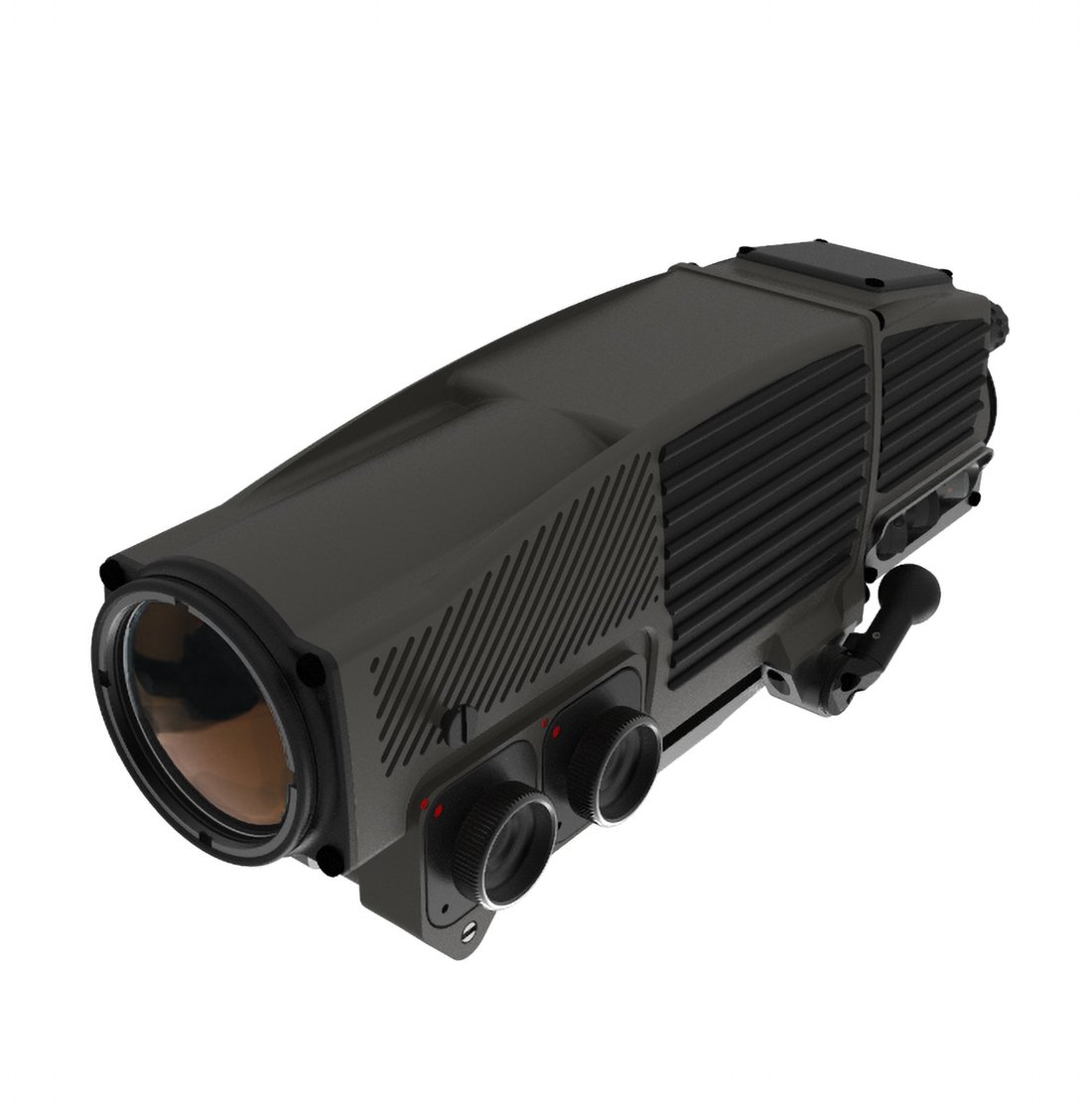

PHOENIX-S Thermal Imaging Clip-On Long-Range Sniper Sight
PART/

PHOENIX-S Thermal Imaging, Clip-On, Long-Range Sniper Sight

PHOENIX-S is designed for the most demanding ground-based sniper operations. PHOENIX-S delivers battle winning capability by allowing early and rapid detection, recognition and identification of targets at extended ranges even in zero light conditions. Integration with a wide range of small arms weapon systems and optical day scopes up to 25X magnification is achieved by the in line configuration of PHOENIX-S. PHOENIX-S is a fully digital architecture, offering a wide range of system set up and configuration options to the user accessible via a simple menu system.

PHOENIX-S is designed for the most demanding ground-based sniper operations

PHOENIX-S offers unrivalled optical performance for high sensitivity during day and night conditions, even in poor visibility

PHOENIX-S provides the User with 24-hr extended range target surveillance, recognition and identification

PHOENIX-S utilizes the latest in high resolution MWIR HOT technology to provide a 640 x 480 resolution image compatible with a wide range of sniper scopes.

Superior boresight retention is achieved through engineering design and manufacturing practices to deliver a high performance unit,

PHOENIX-S is powered from AA Lithium batteries and features a hot swap facility to allow continuous operation.

PHOENIX-S provides intuitive controls and a remote control for mission tailoring on different weapon systems.

PHOENIX-S Thermal Imaging Clip On Long Range Sniper Sight

  • Field of View: 3.0º (H) x 3.8º (V)
  • System Optical Magnification: x1
  • Objective Focus Range: 25 m - Infinity
  • Weapon Mount : Picatinny / NATO rail
  • Detector Type: MWIR HOT
  • Sensor Format: 640 x 512 Pixels
  • Pixel Size: 15 μm
  • Spectral Response: 3 to 5 μm
  • Frame Rate: 60 Hz
  • NETD: < 25 mk
  • Time to Image: <4 minutes
  • I/O Port: RS232 RS170A/CCIR, HDMI, 7 - 20V DC Input
  • Batteries: 8 x 1.5V AA Lithium Disulphide (LiFeS2) or NiMH
  • Battery Life: 6 hours continuous operation @ 25ºC – Lithium Disulphide (LiFeS2)
  • Low Battery Warning: Via an icon on the internal display
  • Weight (including lens cap, shroud and batteries): <1.6 Kg
  • Dimensions: <285 mm (L) x 80 mm (W) x 95 mm (H)
  • Accessories: Interface Cable, Remote Control Unit Remote Display Unit

Range Performance:             Man Target                       Vehicle Target

                             Detect:                  4500 m                                   8800 m

                     Recognize:                  1600 m                                   3600 m

                         Identify:                      800 m                                   1900 m

*50% probability, 2K temperature delta, 20 km visibility, detection @ 1 cycle, recognition @ 3 cycles, identification @ 6 cycles (STANAG 4347 criteria)

PHOENIX-S Thermal Imaging Clip On Long Range Sniper Sight

  • Field of View: 3.0º (H) x 3.8º (V)
  • System Optical Magnification: x1
  • Objective Focus Range: 25 m - Infinity
  • Weapon Mount : Picatinny / NATO rail
  • Detector Type: MWIR HOT
  • Sensor Format: 640 x 512 Pixels
  • Pixel Size: 15 μm
  • Spectral Response: 3 to 5 μm
  • Frame Rate: 60 Hz
  • NETD: < 25 mk
  • Time to Image: <4 minutes
  • I/O Port: RS232 RS170A/CCIR, HDMI, 7 - 20V DC Input
  • Batteries: 8 x 1.5V AA Lithium Disulphide (LiFeS2) or NiMH
  • Battery Life: 6 hours continuous operation @ 25ºC – Lithium Disulphide (LiFeS2)
  • Low Battery Warning: Via an icon on the internal display
  • Weight (including lens cap, shroud and batteries): <1.6 Kg
  • Dimensions: <285 mm (L) x 80 mm (W) x 95 mm (H)
  • Accessories: Interface Cable, Remote Control Unit Remote Display Unit

Range Performance:             Man Target                       Vehicle Target

                             Detect:                  4500 m                                   8800 m

                     Recognize:                  1600 m                                   3600 m

                         Identify:                      800 m                                   1900 m

*50% probability, 2K temperature delta, 20 km visibility, detection @ 1 cycle, recognition @ 3 cycles, identification @ 6 cycles (STANAG 4347 criteria)
