SP205-01/SP205-01T, Fpak

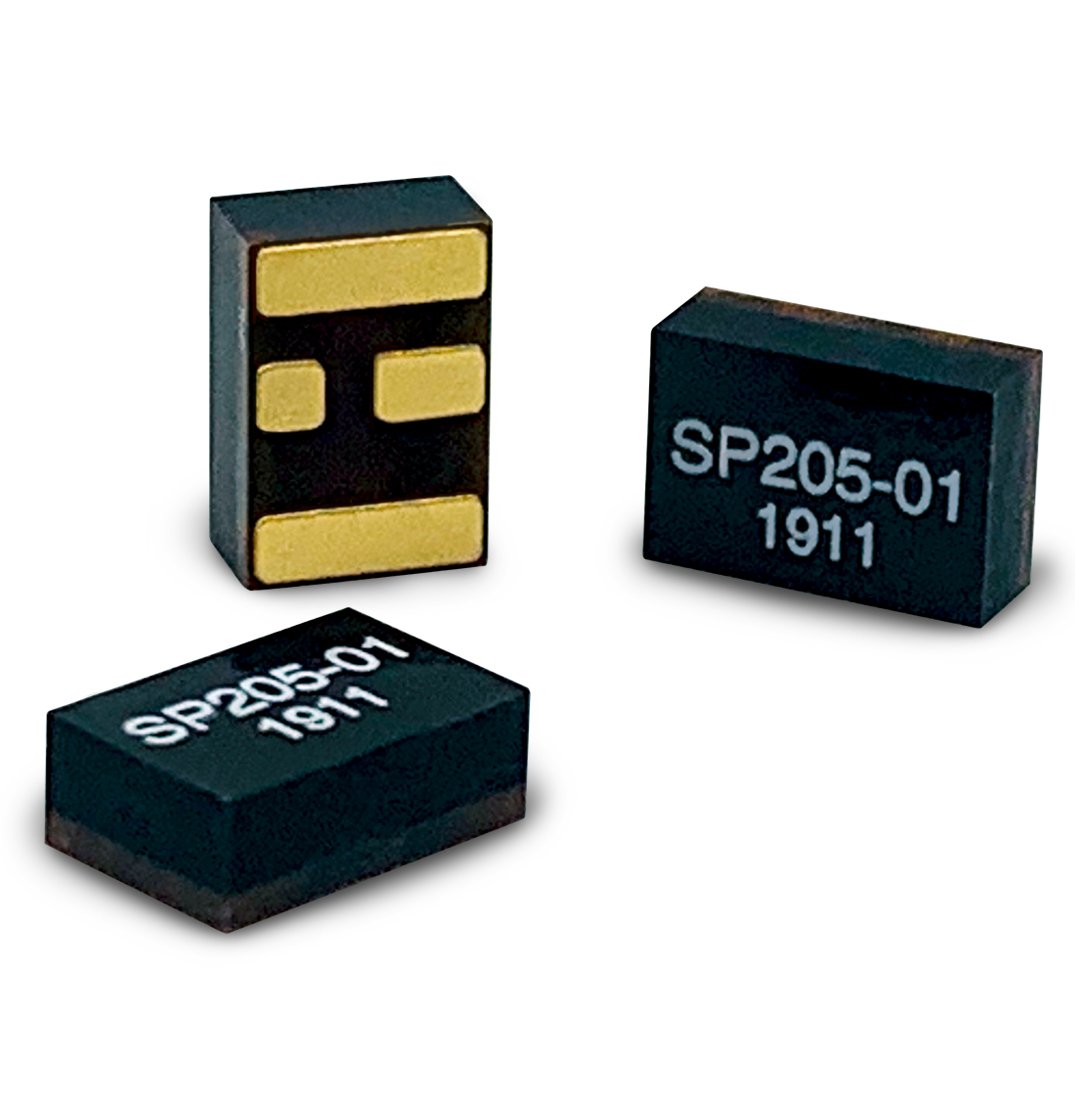

The Solidtron™ SP205-01 is an ultra-fast high-voltage thyristor packaged in an F-Pak custom SMT package. The SP205-01T is identical to the SP205-01 with the exception that its pads have been robotically tinned with 63Sn-37Pb solder prior to final testing.
Features:
- 1500V Repetitive Off-State Voltage
- Off-State Leakage Current ≤1.0µA @ 1500V @ 85oC
- VGK = 0V = OFF-STATE
- 120 kA/µs dI/dt capability
- Low Turn-on and Conduction Losses
- 3kA Repetitive Surge Current
Applications:
- LEEFI detonators
- Electronic Safe and Arm Devices
- Ignition Safety Devices
- Firing Modules
- Capacitor Discharge Units
|
Maximum Ratings |
Symbol |
Value |
Units |
|
Repetitive Peak Off-State Anode Voltage |
VDRM |
1500 |
V |
|
Repetitive Peak Reverse Anode Voltage |
VRRM |
-10 |
V |
|
Off-State Rate of Change of Voltage Immunity (VD=1500V) |
dv/dt |
1000 |
V/µSec |
|
Non-Repetitive Surge Current (1/2 Sinusoid, Pulse Duration ≤200nSec) |
ITSM |
3500 |
A |
|
Repetitive Surge Current (1/2 Sinusoid, Pulse Duration ≤200nSec) |
ITRM |
3000 |
A |
|
Rate of Change of Current |
dI/dt |
120 |
kA/µSec |
|
Critical Capacitor Discharge Event Integral (Underdamped LCR Circuit) |
I2tCRITICAL |
1.18 |
A2sec |
|
Repetitive Capacitor Discharge Event Integral (Underdamped LCR Circuit) |
I2tREPETITIVE |
1.0 |
A2sec |
|
Repetitive Peak Reverse Gate Blocking Voltage |
VRGM |
-5 |
V |
|
Forward Gate Current (≤10µSec Duration, Square Waveform) |
IGM |
10 |
A |
|
Operating Junction Temperature Range |
TJ |
-55 to +125 |
oC |
|
Maximum Guaranteed Off-State Gate Voltage |
0 |
V |
|
|
Maximum Soldering Installation Temperature (See Moisture Sensitivity Caution) |
220 |
oC |
|
|
Storage Temperature Range (See Moisture Sensitivity & Solderability Cautions) |
-55 to +150 |
oC |
|
|
Maximum Ratings |
Symbol |
Value |
Units |
|
Repetitive Peak Off-State Anode Voltage |
VDRM |
1500 |
V |
|
Repetitive Peak Reverse Anode Voltage |
VRRM |
-10 |
V |
|
Off-State Rate of Change of Voltage Immunity (VD=1500V) |
dv/dt |
1000 |
V/µSec |
|
Non-Repetitive Surge Current (1/2 Sinusoid, Pulse Duration ≤200nSec) |
ITSM |
3500 |
A |
|
Repetitive Surge Current (1/2 Sinusoid, Pulse Duration ≤200nSec) |
ITRM |
3000 |
A |
|
Rate of Change of Current |
dI/dt |
120 |
kA/µSec |
|
Critical Capacitor Discharge Event Integral (Underdamped LCR Circuit) |
I2tCRITICAL |
1.18 |
A2sec |
|
Repetitive Capacitor Discharge Event Integral (Underdamped LCR Circuit) |
I2tREPETITIVE |
1.0 |
A2sec |
|
Repetitive Peak Reverse Gate Blocking Voltage |
VRGM |
-5 |
V |
|
Forward Gate Current (≤10µSec Duration, Square Waveform) |
IGM |
10 |
A |
|
Operating Junction Temperature Range |
TJ |
-55 to +125 |
oC |
|
Maximum Guaranteed Off-State Gate Voltage |
0 |
V |
|
|
Maximum Soldering Installation Temperature (See Moisture Sensitivity Caution) |
220 |
oC |
|
|
Storage Temperature Range (See Moisture Sensitivity & Solderability Cautions) |
-55 to +150 |
oC |
|
