CoolEYE TPiA 4.4T 4246 Array Module
PART/ TPiA 4.4T 4246 L3.9

TPiA 4.4T 4246 L3.9 CoolEYE 16 Pixel Array

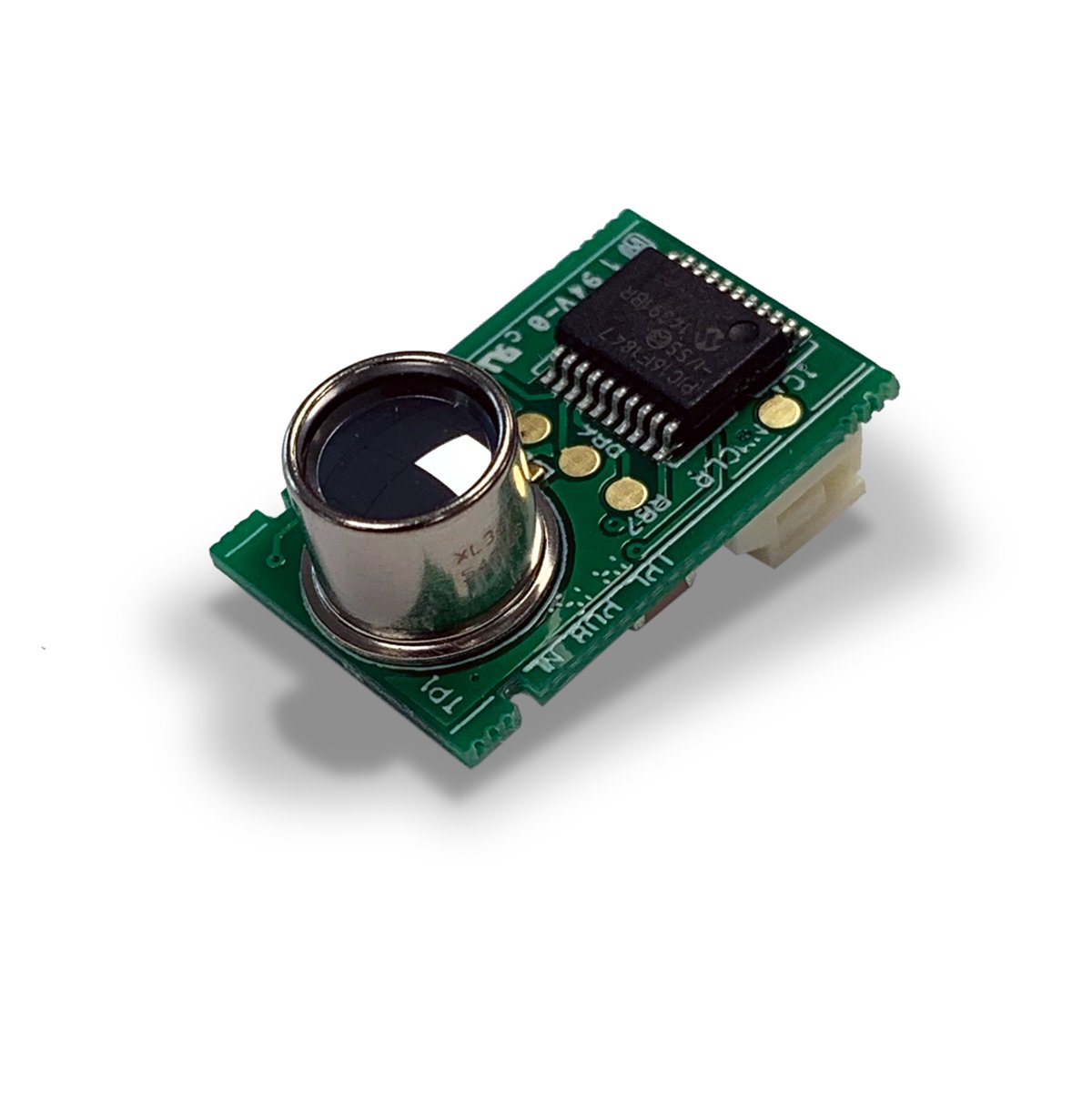

The basic CoolEYE 2D Array Module is a small Infrared Array offering 4x4 pixels including a small IR transmissive lens and the Thermopile Sensor. A microprocessor on the module board provides for a calibrated signal and SM Bus interface.

This small Infrared Array Sensor offers 4x4 pixels. With this it offers the benefits of easy signal processing with some form of low resolution spatial Infrared resolution at low cost.

The Module includes a small IR transmissive lens and the Thermopile Sensor. A microprocessor on the module board provides for a calibrated signal and acts as the Bus interface

As standard calibration we provide:

  • TPiA 4.4T 4246 L3.9 A60 P8 for temperature measurements up to 60°C
  • TPiA 4.4T 4646 L3.9 A60 P8 for temperature measurements up to 120°C​
  • Object temperature range 0 – 60°C (4246), 0-120° (4646)
  • Operation voltage: 4.5 – 5.5V / 5mA
  • Refresh Time: 400 ms
  • Field-of-view X: 22° (pk to pk), entire sensor
  • Field-of-view Y: 22° (pk to pk), entire sensor
  • Object temperature range 0 – 60°C (4246), 0-120° (4646)
  • Operation voltage: 4.5 – 5.5V / 5mA
  • Refresh Time: 400 ms
  • Field-of-view X: 22° (pk to pk), entire sensor
  • Field-of-view Y: 22° (pk to pk), entire sensor
