Excelitas Trigger Transformers
PART/ TR/TS Series

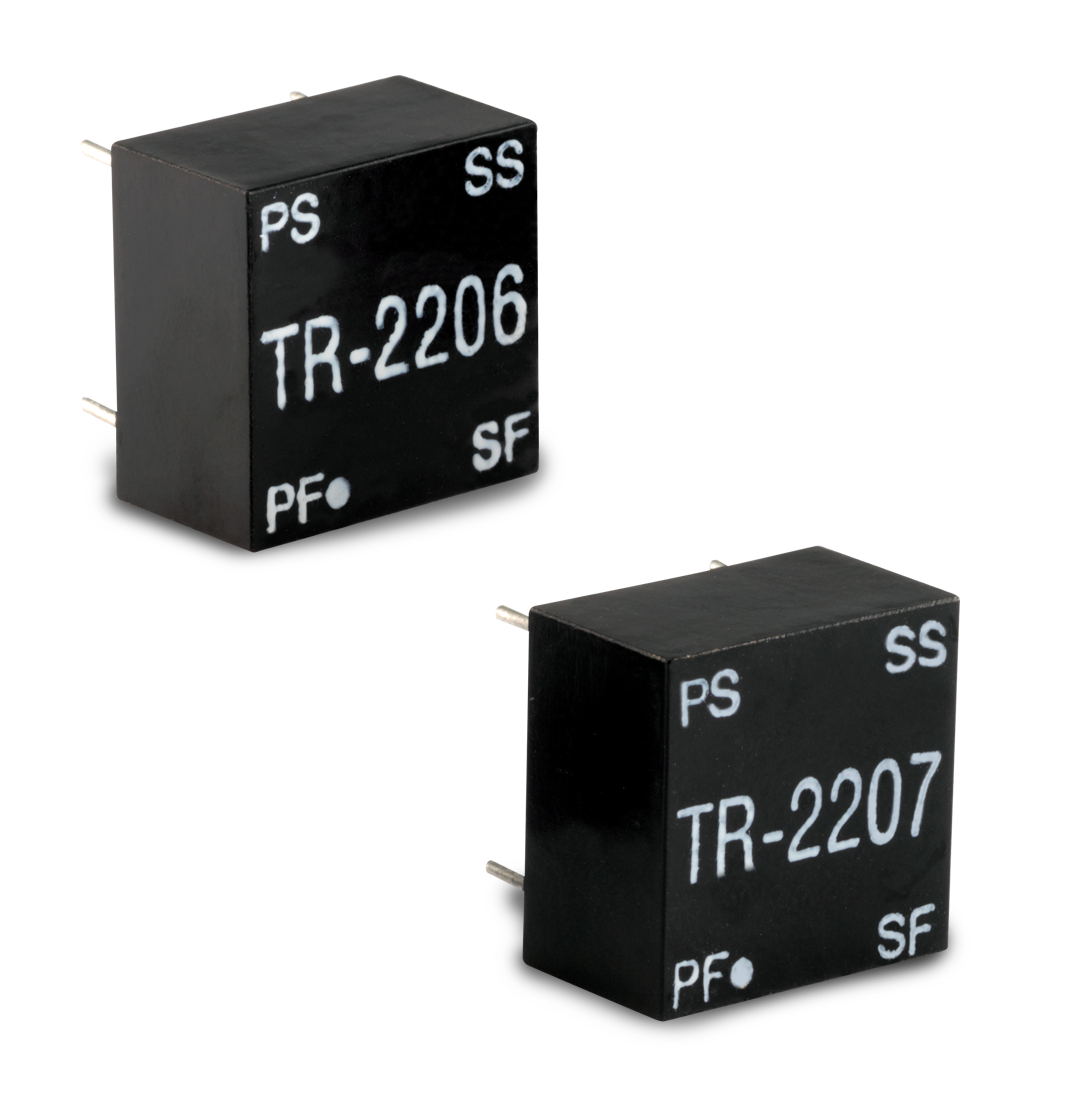

Trigger Transformers

Excelitas has been manufacturing High-Voltage Transformers since 1956. Our standard legacy designs are available with an array of input/ouput voltages. High performance is ensured through state-of-the-art manufacturing techniques including vacuum impregnation, vacuum encapsulations and meter-mix dispense systems.

Excelitas offers both externally triggering transformers, our TR series, and series injection triggering transformers, our TS series transformers.  The following products are currently available.

  • TR-36A
  • TR-148A
  • TR-132C
  • TR-180B
  • TR-1700
  • TR-1795
  • TR-1855
  • TS-146A

Please contact us for more information on our trigger transformers.

Peak output voltage up to 40 kV

Load current up to 80 A RMS

Surface mount, through hole or hardware mounted

Peak output voltage up to 40 kV

Load current up to 80 A RMS

Surface mount, through hole or hardware mounted
