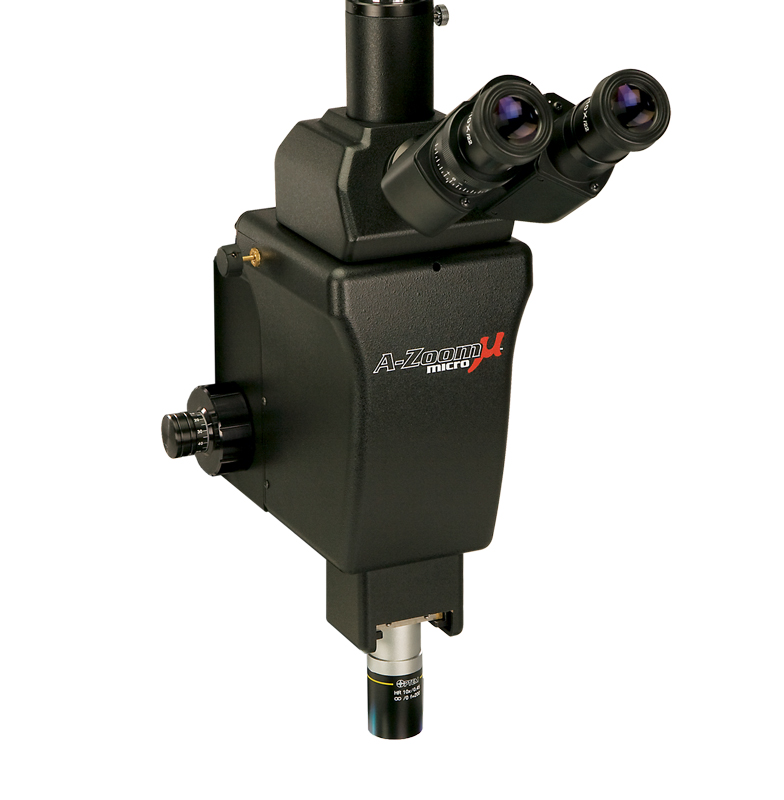

A-Zoomµ Analytical Probing Microscope

A-Zoom Probing Microscopes

Originating from our Qioptiq® heritage, Excelitas offers the A-Zoomµ Micro®, Single-Objective, Analytical Probing Microscope for value-added wafer imaging. Its compact, single-objective design eliminates cumbersome nose-turret manipulation improving wafer probing throughput.

Excelitas' Q-Shop ecommerce website



The A-Zoomµ Micro represents the latest addition to the time-tested line of A-Zoom probing microscopes. In keeping with its field-proven heritage, A-Zoomµ Micro features a space efficient single-objective design to eliminate cumbersome nose turret manipulation and improve throughput.

Designed for streamlined operation and compact integration onto a multitude of probing stations, the A-Zoomµ Micro offers a high-value solution for circuit board, semiconductor and flat-panel display probing without sacrificing features, function or performance.

Compatible with a variety of prober stations, A-Zoom Micro offers a high-value solution for circuit board, semiconductor and flat-panel display probing without sacrificing features or performance.

Learn more about A-Zoomµ Micro at our Qioptiq-Shop.

  • 7:1 parfocal optical zoom
  • 2X quick-slider extends magnification
  • Compact design affords exceptional imaging value and economy for manual probe stations
  • Ergonomic design includes tilting or fixed 10X eyepieces and one-hand magnification adjustment
  • Variety of trinocular and photoport head options offer CCD integration flexibility
  • Easily configured for matching fields-of-view through eyepieces and video (1/2” camera formats)
  • On-board 10-Watt LED coaxial (incident) illumination for exceptional brightness & contrast control
  • The heavy-duty focus block offers 50 mm precision travel to establish fine-focus and provide a stable mounting interface for most any probe station
  • 7:1 parfocal optical zoom
  • 2X quick-slider extends magnification
  • Compact design affords exceptional imaging value and economy for manual probe stations
  • Ergonomic design includes tilting or fixed 10X eyepieces and one-hand magnification adjustment
  • Variety of trinocular and photoport head options offer CCD integration flexibility
  • Easily configured for matching fields-of-view through eyepieces and video (1/2” camera formats)
  • On-board 10-Watt LED coaxial (incident) illumination for exceptional brightness & contrast control
  • The heavy-duty focus block offers 50 mm precision travel to establish fine-focus and provide a stable mounting interface for most any probe station
