LINOS平面导轨系统65

LINOS平面导轨系统65

The LINOS® Flat Rail System 65 offers a versatile solution for precise optical setups, bridging the gap between smaller and larger rail systems. Its 65 mm width provides an ideal platform for mounting optics up to 2" in diameter, ensuring stability and accurate component positioning for demanding applications. Designed for smooth carrier movement and easy integration, the FLS 65 enables flexible configurations for research and industrial environments. Whether you are building complex optical assemblies or expanding existing setups, this rail system delivers the reliability and precision needed for consistent, repeatable results.

The LINOSFlat Rail System 65 features precision-machined bearing surfaces for effortless carrier travel and excellent straightness for accurate alignment. Its matte black anodized finish ensures abrasion resistance and supports long-term reliability.

  • Flexible mounting options with slotted holes for easy installation
  • Smooth, controlled movement for precise optical positioning

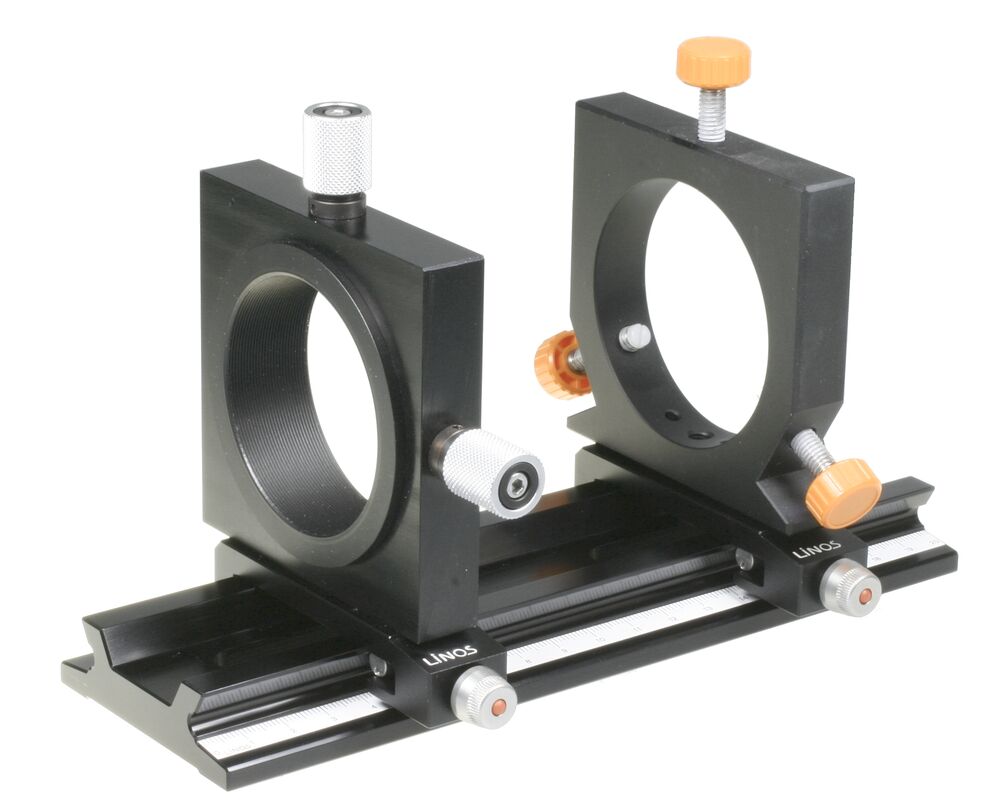

Example: FLS 65 with Optic Holders

Application Example: Optic holders mounted onto the FLS 65 Flat Rail System.

产品 平面导轨FLS 65-200 平面导轨FLS 65-500 平面导轨FLS 65-750 平面导轨FLS 65-1000 平面导轨FLS 65-1500
长度 200.0 mm 500.0 mm 750.0 mm 1000.0 mm 1500.0 mm
宽度 65.0 mm 65.0 mm 65.0 mm 65.0 mm 65.0 mm
高度 18.75 mm 18.75 mm 18.75 mm 18.75 mm 18.75 mm
重量(kg) 0.345 0.862 1.316 1.728
材料 / 表面处理 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度
螺孔 / 通孔 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot
零件号 G036550000 G036551000 G036552000 G036553000 G036554000
产品 平面导轨FLS 65-200 平面导轨FLS 65-500 平面导轨FLS 65-750 平面导轨FLS 65-1000 平面导轨FLS 65-1500
长度 200.0 mm 500.0 mm 750.0 mm 1000.0 mm 1500.0 mm
宽度 65.0 mm 65.0 mm 65.0 mm 65.0 mm 65.0 mm
高度 18.75 mm 18.75 mm 18.75 mm 18.75 mm 18.75 mm
重量(kg) 0.345 0.862 1.316 1.728
材料 / 表面处理 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度 黑色阳极氧化铝,带刻度
螺孔 / 通孔 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot 6.6 mmx50.8 mm Slot
零件号 G036550000 G036551000 G036552000 G036553000 G036554000
