LINOS平面导轨系统滑座65
The LINOS® Flat Rail System Carrier 65 is designed for effortless positioning and secure mounting of optical components on FLS 65 Flat Rail Systems. Smooth travel and quick adjustment support dynamic optical setups in research and industrial environments. A universal bore pattern accommodates a wide range of mounts, providing flexibility for complex assemblies. The durable, matte black finish supports long-lasting performance and reliable alignment for precise optical experiments.
The LINOSFlat Rail System Carrier 65 features a spring-loaded clamp for smooth movement along the rail and a knurled screw for secure fixation. Its abrasion-resistant anodized surface guarantees durability even under frequent adjustments.
- Universal bore pattern for versatile mounting options
- Robust design for consistent, repeatable positioning
| 产品 | Carrier FLR 65-20 | Carrier FLR 65-40 | Carrier FLR 65-65 |
| 宽度 | 20.0 mm | 40.0 mm | 65.0 mm |
| 重量（kg） | 0.045 | 0.08 | 0.12 |
| 材料 / 表面处理 | 黑色阳极氧化铝 | 黑色阳极氧化铝 | 黑色阳极氧化铝 |

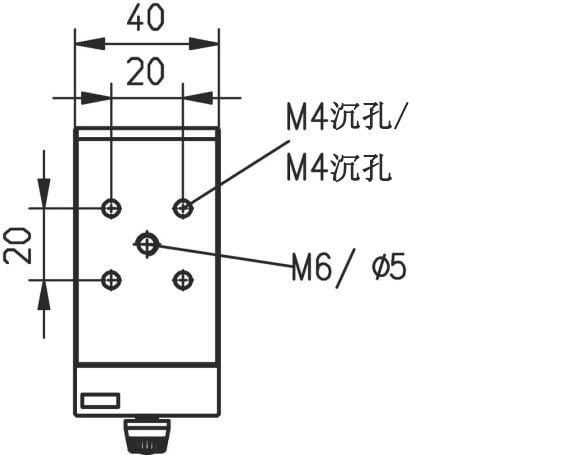

| 螺孔 / 通孔 |
Ø4.5 mm M6 |
Ø4.5 mm□20 mm M6 |
Ø3.4 mm□20 mm Ø4.5 mm□50 mm M6 |
| 零件号 | G036520000 | G036540000 | G036565000 |
Carrier FLR 65-65
Carrier FLR 65-40
