Excelitas TPD 2T 0625 Dual-Output Thermopile Detector
PART/ TPD 2T 0625

TPD 2T 0625 Dual-Output Thermopile Detector

The Excelitas TPD 2T 0625 Dual-Output Thermopile Detector features two sensitive detection chips located behind individual optical filter windows contained in a robust TO-39 housing. This design generates two independent outputs, each in a different spectral range.

This specially designed Detector offers dual-channel performance in a robust TO-39 housing with two individual optical windows. Typically one window is fitted with a reference filter G20, where as the other window is fitted with a narrow-band pass filter selected for a specific gas. Our TPD 2T 0625 is also equipped with an internal Thermistor as temperature reference for Thermopile temperature compensation.

Features

  • High sensitivity
  • TO-39 metal housing
  • Thermistor included
  • Two narrow-band pass filters

Applications

  • High-precision gas sensing and monitoring



  • Responsivity: 33 V/W
  • Sensitivity S100: 155 µV/K
  • Noise: 36 nV/√Hz
  • Time Constant: 27 ms
  • Housing with optical window: TO-39

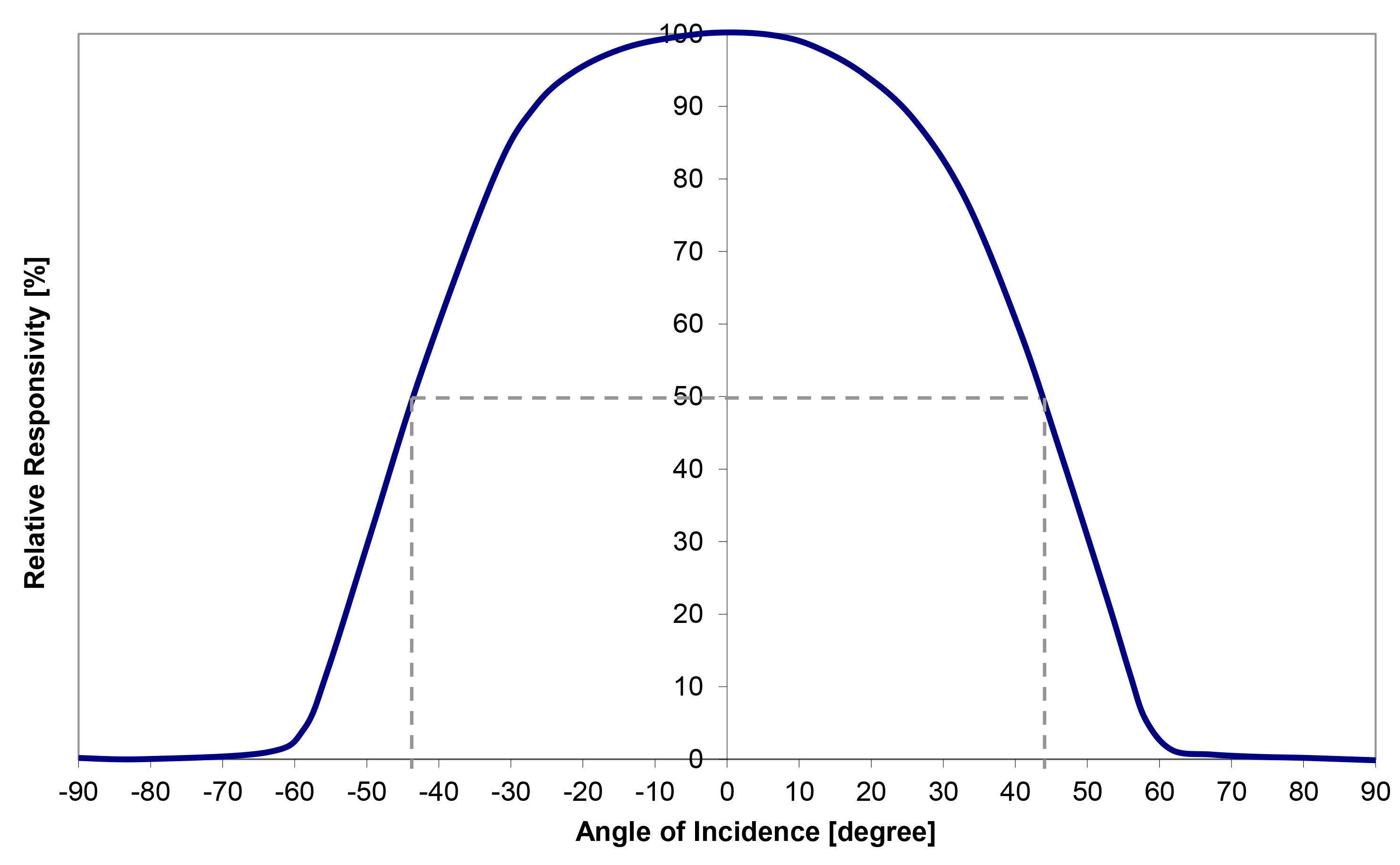

  • Field-of-view: 87°





  • Responsivity: 33 V/W
  • Sensitivity S100: 155 µV/K
  • Noise: 36 nV/√Hz
  • Time Constant: 27 ms
  • Housing with optical window: TO-39
  • Field-of-view: 87°
