Excelitas TPiD-1T-0226-L5.5 Thermopile Detector
PART/ TPiD 1T 0226 L5.5

TPiD 1T 0226 L5.5 Thermopile with Lens

The Excelitas TPiD 1T 0226 L5.5 Thermopile Detector with integrated optics features an integral lens which focuses thermal radiation towards the sensitive chip for improved performance.

The TPiD 1T 0226 L5.5 provides patented Excelitas ISOthermal performance feature and integral optics. A built-in internal lens provides a narrow field-of-view.

All thermopile versions are equipped as standard with an internal Thermistor as temperature reference for Thermopile temperature compensation

Features

  • Patented ISOthermal performance
  • TO-5 metal housing
  • Thermistor included
  • Integrated optics

Applications

  • Non-contact temperature measurements
  • Pyrometry

TPD 1T 0226 L5.5

  • Responsivity: 45 V/W
  • Sensitivity S100:27 µV/K
  • Noise: 35 nV/√Hz
  • Time Constant: 22 ms
  • Housing with integrated lens: long version of TO-5

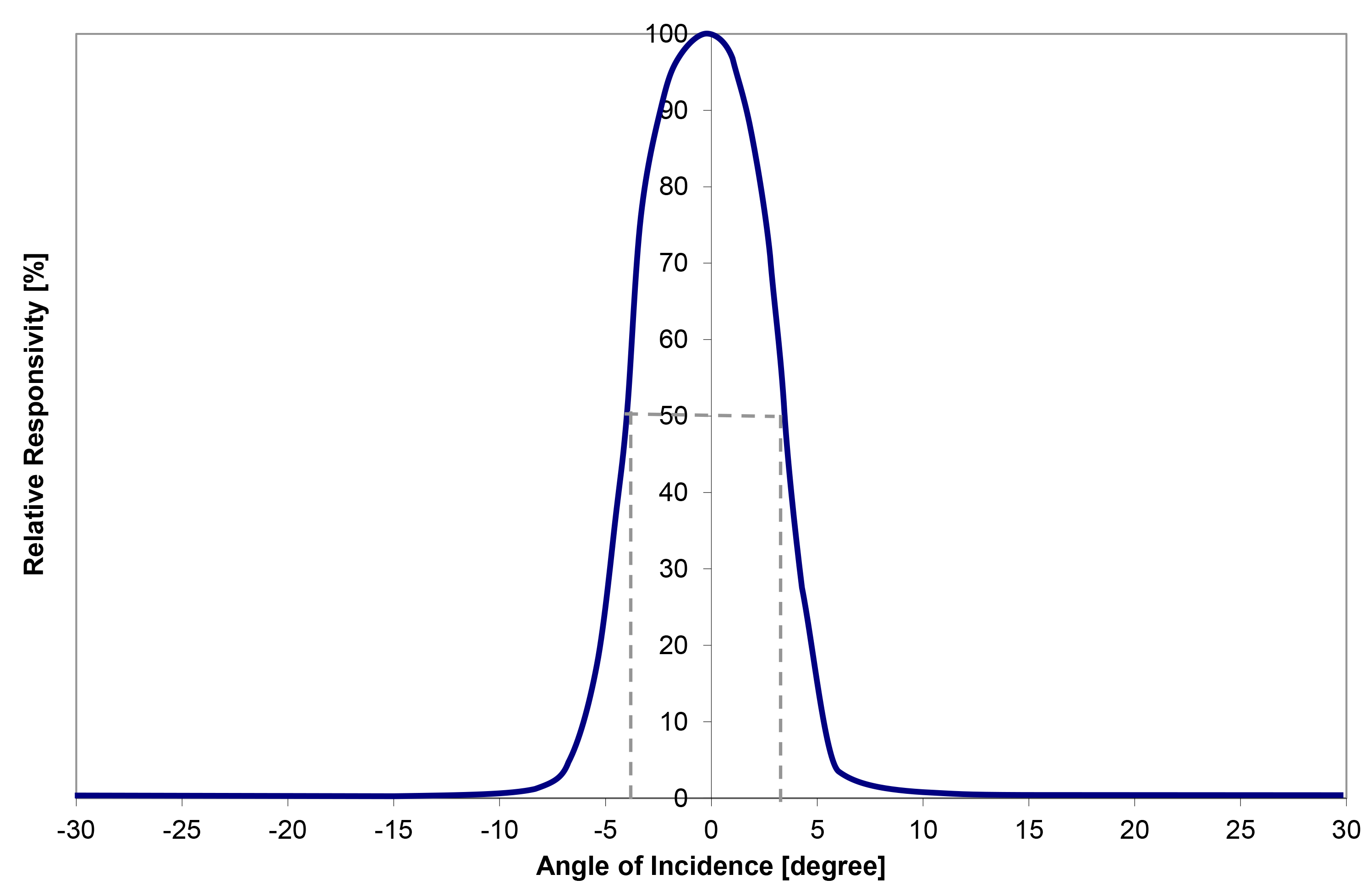

  • Field of View: 7°



TPD 1T 0226 L5.5

  • Responsivity: 45 V/W
  • Sensitivity S100:27 µV/K
  • Noise: 35 nV/√Hz
  • Time Constant: 22 ms
  • Housing with integrated lens: long version of TO-5
  • Field of View: 7°
