LINOS Flat Rail System FLR Carrier 40

LINOS Flachschienensystem-Träger 40

The LINOS® Flat Rail System Carrier 40 is the ideal solution for connecting FLS 40 rail systems with a wide range of optical components. Designed for smooth, precise positioning, the carrier enables controlled, jolt-free adjustment for sensitive optical setups. Its versatile design supports easy integration with Microbench components, enabling flexible configurations for complex experiments or 3D assemblies. Secure mounting and quick repositioning give the FLR 40 Carrier the stability and convenience needed for reliable, repeatable results in research and industrial environments.

Kontakt Jetzt bei DigiKey kaufen

The LINOS Flat Rail System Carrier 40 combines smooth gliding action with secure fixation using a spring-loaded thumbscrew. Even when loosened, the carrier maintains its position for controlled adjustments.

  • Compatible with LINOS Microbench components for modular setups
  • Central M6 thread for mounting posts, columns, and holders

Anwendungsbeispiel: Schiene FLS 40, 200 und 40 mm lang mit verschiedenen Trägern FLR 40

Application Example: Rail FLS 40, 200 and 40 mm long, with various Carriers FLR 40.

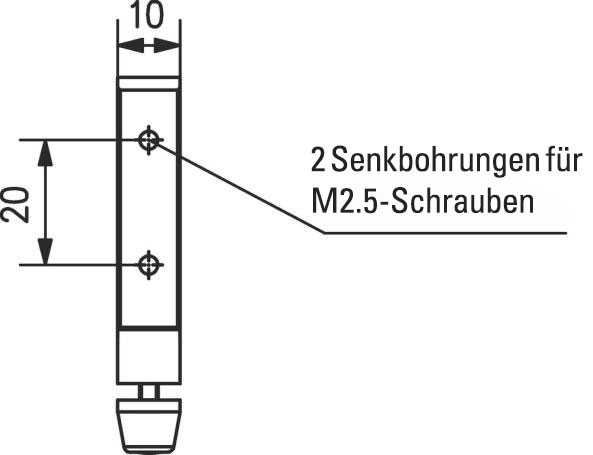

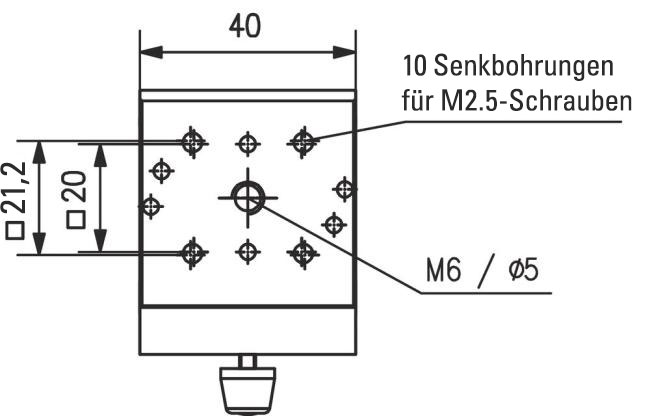

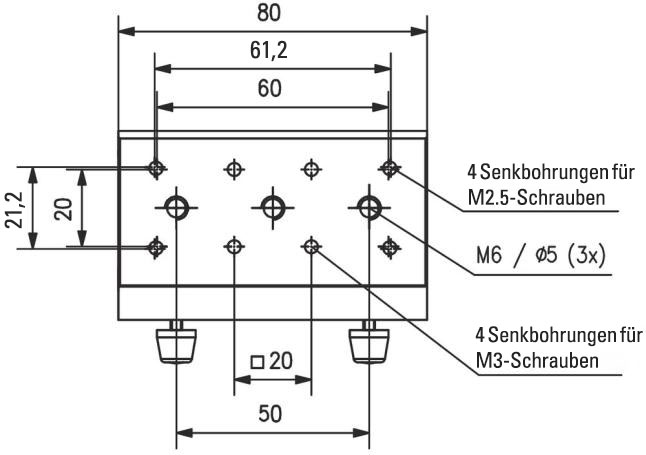

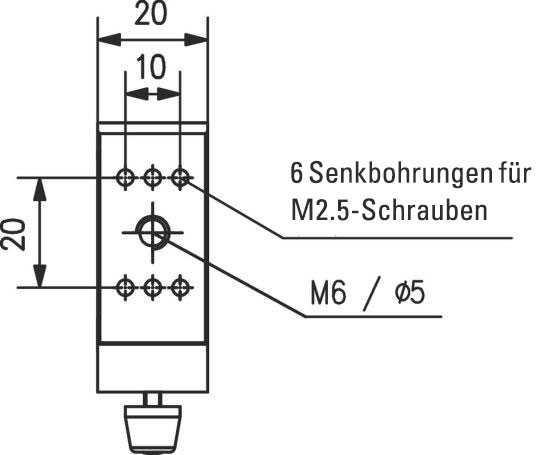

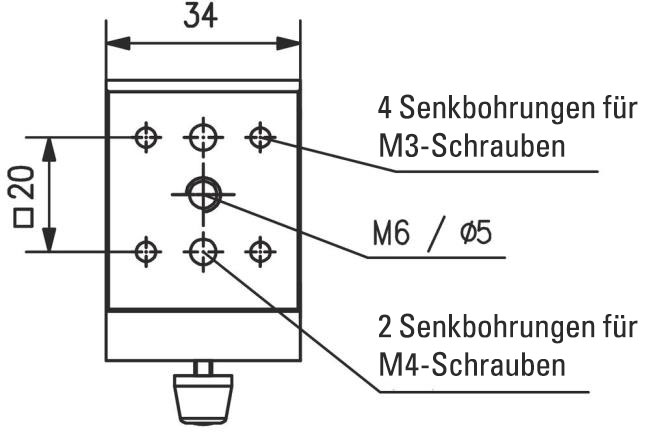

Produkt Carrier FLR 40-10 Carrier FLR 40-20 Carrier FLR 40-34 Carrier FLR 40-40 Carrier FLR 40-80
Breite 10,0 mm 20,0 mm 34,0 mm 40,0 mm 80,0 mm
Material/Ausführung Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium
Gewinde/Bohrlöcher Ø2.9 mm Ø2.9 mm
M6 		Ø3,4 mm□20 mm
Ø4.5 mm
M6 		Ø2.9 mm
3.5 mm□20.6 mm
M6 		Ø3,4 mm□20 mm
Ø3.5 mm
M6
Teilenummer G061371000 G061372000 G061373000 G061374000 G061378000
  • Carrier for Rail FLS 40
  • Spring-loaded clamps for smooth gliding

  • Thumbscrew for secure positioning

  • 20 mm slot pattern for mounting Microbench components

  • Optical axis height of 40 mm for use with Microbench components

  • Central M6 mounting thread for posts, columns, and holders

  • Optische Bänke

  • Laserstrukturen

  • Measurement setups

  • Maschinenbau

Produkt Carrier FLR 40-10 Carrier FLR 40-20 Carrier FLR 40-34 Carrier FLR 40-40 Carrier FLR 40-80
Breite 10,0 mm 20,0 mm 34,0 mm 40,0 mm 80,0 mm
Material/Ausführung Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium Schwarz eloxiertes Aluminium
Gewinde/Bohrlöcher Ø2.9 mm Ø2.9 mm
M6 		Ø3,4 mm□20 mm
Ø4.5 mm
M6 		Ø2.9 mm
3.5 mm□20.6 mm
M6 		Ø3,4 mm□20 mm
Ø3.5 mm
M6
Teilenummer G061371000 G061372000 G061373000 G061374000 G061378000
  • Carrier for Rail FLS 40
  • Spring-loaded clamps for smooth gliding

  • Thumbscrew for secure positioning

  • 20 mm slot pattern for mounting Microbench components

  • Optical axis height of 40 mm for use with Microbench components

  • Central M6 mounting thread for posts, columns, and holders

  • Optische Bänke

  • Laserstrukturen

  • Measurement setups

  • Maschinenbau
