TEIL/ 85108052120
pco.dimax cs8 Hochgeschwindigkeitskamera
The pco.dimax cs8 combines 4K high-speed imaging, automotive-grade robustness, secure onboard recording, seamless FALCON integration, and premium image quality in a compact and cost-competitive platform well suited for automotive safety testing. Backed by our renowned customer service and long-term product support, it combines high performance and reliability with long-term cost efficiency.
Equipped with a back-illuminated CMOS sensor, the camera delivers more than 1,100 fps at full 4K resolution (3840 × 2160) and up to 5,360 fps at Full HD, enabling detailed analysis of fast-moving events. Its integrated 25 GB memory, secure data storage, and optional battery backup help ensure reliable recording even under critical test conditions.
Fully integrated with the industry-leading FALCON extra high-speed video software, the pco.dimax cs8 supports seamless deployment within existing automotive safety infrastructures. Designed for long-term reliability, serviceability, and competitive total cost of ownership, the cs8 represents the future of high-speed imaging for vehicle safety validation and advanced motion analysis.
| Sensortechnologie | back illuminated CMOS |
| Auflösung (H × V) | 3840 x 2160 |
| Pixelgröße (H x V) | 5.0 x 5.0 |
| Sensordiagonale | 22,0 mm |
| Spitzenquanteneffizienz | 70,0% |
| Wellenlänge mit maximaler Quantenausbeute | 550,0 nm |
| Global Shutter | ja |
| Rolling Shutter | nicht zutreffend |
| Global Reset | nicht zutreffend |
| Betriebsarten |
High Gain Low Gain |
| Ausleserauschen (RMS) | 3,5 e- 32,0 e- |
| Median des Ausleserauschens | 3,5 e- 32,0 e- |
| Fullwell Capacity |
8100 e- 41300 e- |
| Dynamik |
2660:1 1413:1 |
| Dynamikumfang (log) | 68,5 dB 63,0 dB |
| Bilderate (Vollsensor) | 1141,0 fps |
| Dynamikumfang A/D-Wandler | 12 bit |
| Thermoelektrische Kühlung | ja |
| Zwangsbelüftung | ja |
| Flüssigkeitskühlung | nicht zutreffend |
| Datenschnittstelle | Gigabit Ethernet |
| Objektivfassung im Lieferumfang enthalten |
C-Mount F-Mount |
| Breite | 88,0 mm |
| Länge | 80,0 mm |
| Gewicht (kg) | 0,85 |
| Höhe | 88,0 mm |
| Teilenummer | 85108052120 |
8 MP High Resolution
3840 × 2160 pixel sensor resolution captures highly detailed crash-test footage and enables more precise image analysis.
High-Speed Performance
Over 1,100 fps at 4K and over 5,000 fps at Full HD resolution allow accurate recording of extremely fast events during crash tests and dynamic investigations.
Global Shutter Technology
Back-illuminated CMOS sensor with global shutter eliminates motion distortion and ensures accurate image capture at high speeds.
Rugged Automotive Design
150 g shock resistance and compact housing support reliable operation in harsh crash-test environments.
Internal Recording Memory
25 GB internal memory supports long recording times without requiring external storage (up to 1.81 s at full resolution).
Enhanced Data Security
Optional battery pack and SD card support (on request) protect valuable test data in case of power loss during a crash event.
FALCON Software Integration
Native integration with FALCON extra high-speed video software simplifies installation and operation within existing automotive test facilities.
Flexible Optical Interface
C-Mount, F-Mount, and EF-Mount lens compatibility supports a wide range of professional lenses and test setups.
Automotive safety testing
Crash testing
Industrial R&D and motion analysis
Luft- und Raumfahrt
Defense and transportation
Wissenschaftliche Forschung

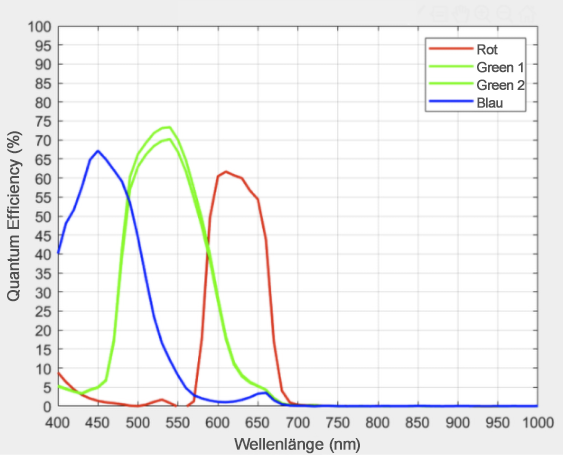

pco.dimax cs Quanteneffizienzkurve des Farbsensors
pco.dimax cs Quanteneffizienzkurve des Farbsensors
