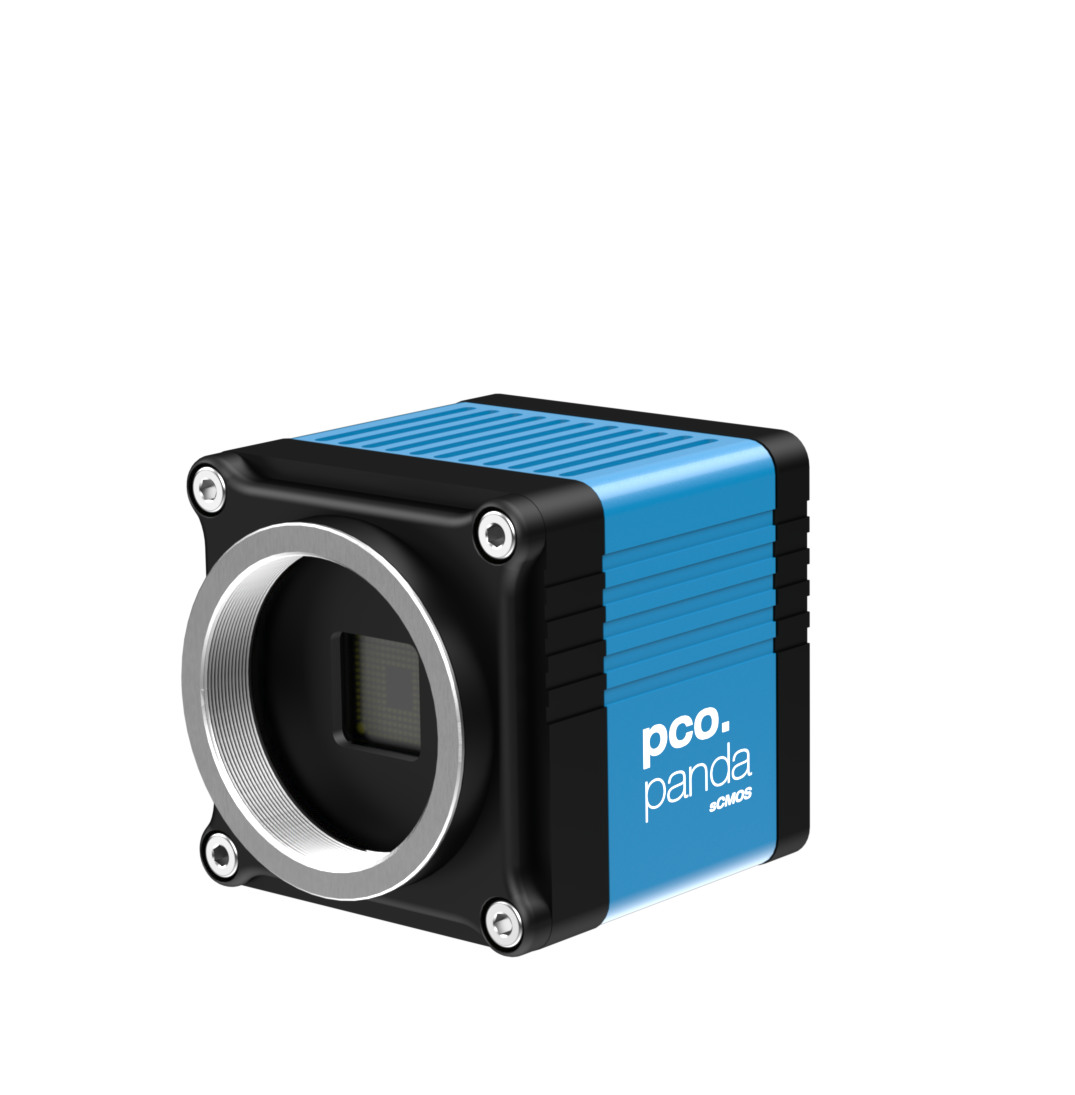

pco.panda 26 sCMOS Camera
The ultra-compact pco.panda 26 scientific CMOS (sCMOS) camera provides high resolution of 5120 x 5120 pixels. It is available in monochrome and color sensor options, making it ideal for various scientific applications. Featuring 2.5 x 2.5 µm pixel size, the pco.panda 26 is an excellent fit for optical systems such as microscopes, even with low magnification.
The true charge domain global shutter in the pco.panda 26 sCMOS camera allows for low readout noise and dark current. The USB 3.1 connection includes the power supply eliminating the need for an external unit and allowing for fast data transfer. Due to its ultra-compact housing, the pco.panda 26 can be easily integrated into an optical setup and used in a wide range of scientific as well as industrial applications.
Probieren Sie auch unser Tool MachVis Lens Selector aus, um die perfekte Objektivlösung und PCO-Kamera für Ihre Bildgebungs- und Bildverarbeitungsanforderungen zu finden.
|
|
|
|
Schnittstelle |
USB 3.1 Gen 1 |
|
Sensortechnologie |
sCMOS |
|
Farbtyp |
monochrome or color |
|
Auflösung |
5120 x 5120 Pixel |
|
Sensordiagonale |
18,1 mm |
|
Pixelgröße |
2,5 x 2,5 μm |
|
Maximum frame rate @ full resolution |
6 fps |
|
Maximale Pixelrate |
187 (MPixel/s) |
|
Peak-QE |
65 % @ 500 nm1 |
|
Typ. read noise2 |
2,3 e- |
|
Maximaler Dynamikumfang |
2000 : 1 |
|
Shutter-Typ |
Global Shutter |
|
Sensor cooling |
passive |
|
Abmessungen (H x B x L) |
65 x 65 x 72 mm |
1 monochrome version
2 Die Werte für das Ausleserauschen werden als Median (med) angegeben. Alle Werte sind Rohdaten ohne Filterung.
- Bright-field microscopy
- Fluorescence microscopy
- Digital pathology
- Mesoscopy (low magnification microscopy)
- High-speed bright-field ratio imaging
- High throughput screening
- High content screening
- Biochip reading
- Spinning disk confocal microscopy
- 3d metrology
- Industrial quality inspection
|
|
|
|
