TEIL/ G024988000
LINOS Mounting Plate MP 80.U
The LINOS® Mounting Plate MP 80.U provides a versatile and stable platform for integrating a wide range of Microbench components into optical or mechanical setups. Its robust design supports precise placement of holders, plates, and accessories, making it easy to adapt the system to different experimental or production requirements. The plate’s compatibility with various stages and carriers enables flexible configuration and smooth integration into existing assemblies. With its robust construction, the MP 80.U provides dependable support and maintains precise alignment across a range of system configurations.
The LINOS Mounting Plate MP 80.U is designed as a universal interface for Microbench accessories, allowing quick integration of holders, stages, and optical components. Its rigid construction and broad mounting area support stable and repeatable setups.
- Flexible mounting options enable seamless adaptation to different system layouts
- Stable surface ensures reliable positioning of attached components
Application Example: Mounting Plate MP 80.U on an X 95 Carrier.
Adapter plate for various Microbench components such as holders, rod holders, and bench plates for versatile system use
Suitable for prism tables 40S/60S for easy integration of optical components
Compatible with linear stages TB 32 / TB 50 / TB 80 for flexible system expansion
Supports various object and mirror holders for broad application coverage
Mountable on bases without clamps for faster setup
Mountable on Carrier FLR 95 or X 95 using clamps SP 4 for secure attachment

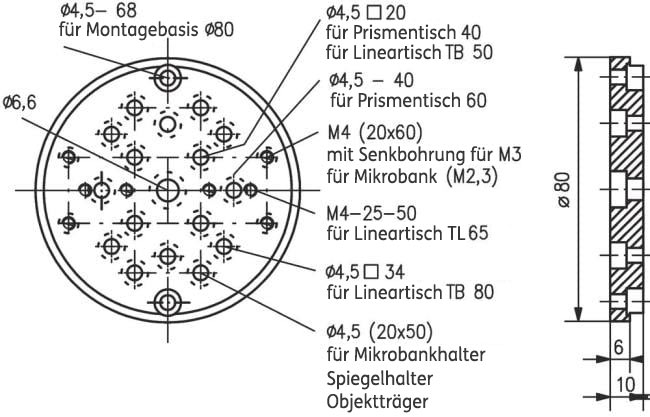

Ø 80 mm plate for a stable mounting area
10 mm thickness for high rigidity and reliable component support
Adapter plate for various Microbench components such as holders, rod holders, and bench plates for versatile system use
Suitable for prism tables 40S/60S for easy integration of optical components
Compatible with linear stages TB 32 / TB 50 / TB 80 for flexible system expansion
Supports various object and mirror holders for broad application coverage
Mountable on bases without clamps for faster setup
Mountable on Carrier FLR 95 or X 95 using clamps SP 4 for secure attachment
Ø 80 mm plate for a stable mounting area
10 mm thickness for high rigidity and reliable component support
