LINOS Flat Rail System FLS 40

LINOS Flat Rail System 40

The LINOS® Flat Rail System 40 is a compact and versatile solution for creating precise micro-optical benches. Its slim design supports space-constrained setups while maintaining high stability and accurate alignment of optical components. Ideal for research laboratories and industrial applications, the FLS 40 enables easy, reproducible positioning of mounted optics and supports efficient assembly of complex optical paths. Suitable for metrology, photonics, and experimental setups, this rail system provides the reliability and precision needed for consistent, repeatable results.

Contact Us Buy Now at Digikey

The LINOS Flat Rail System 40 features precisely machined guide surfaces for smooth carrier movement and exceptional linearity. Its slotted design allows flexible mounting and easy repositioning, independent of existing hole patterns.

  • Integrated ruler for quick, reproducible component placement
  • Durable black anodized finish for long-term performance

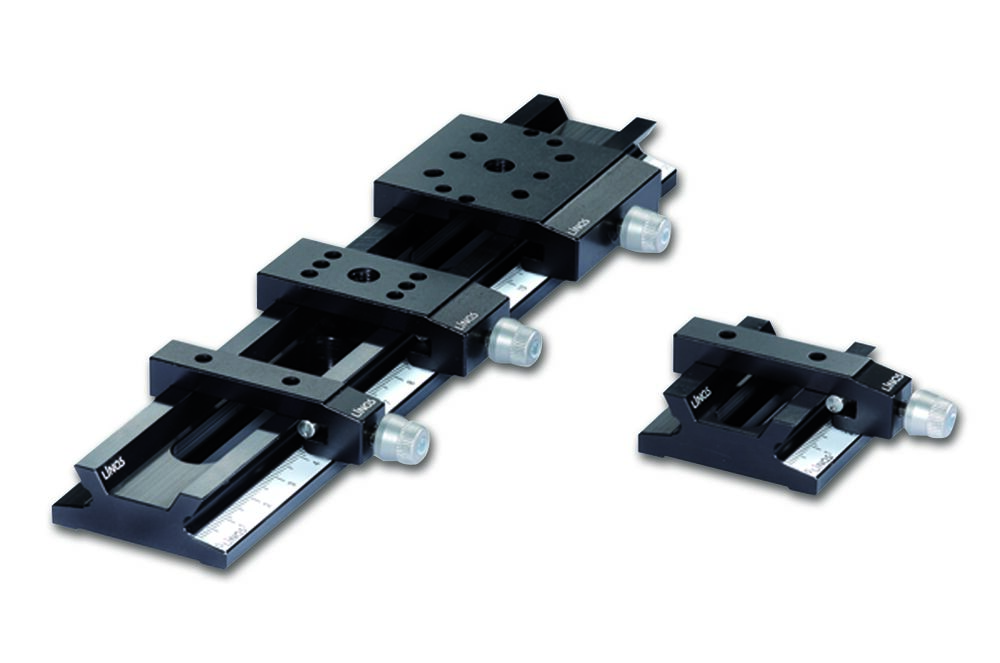

Application Example: Rail FLS 40, 200 and 40 mm long with various Carriers FLR 40

Application Example: Rail FLS 40, 200 and 40 mm long, with various FLR 40 Carriers.

Product Flat rail FLS 40-400 Flat rail FLS 40-700 Flat rail FLS 40-40 Flat rail FLS 40-100 Flat rail FLS 40-150 Flat rail FLS 40-200 Flat rail FLS 40-300 Flat rail FLS 40-500 Flat rail FLS 40-1000 Flat rail FLS 40-250
Length 400.0 mm 700.0 mm 40.0 mm 100.0 mm 150.0 mm 200.0 mm 300.0 mm 500.0 mm 1000.0 mm 250.0 mm
Width 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm
Height 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm
Weight (kg) 0.342 0.593 0.034 0.091 0.137 0.172 0.255 0.424 0.85 0.207
Material / Finishing Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale
Threads / Boreholes 50.8x6.5 mm Slot 50.8x6.5 mm Slot 25.4x6.5 mm Slot 50.8x6.5 mm Slot 25.4x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot
Part Number G061358000 G061360000 G061351000 G061352000 G061353000 G061354000 G061356000 G061359000 G061361000 G061355000
  • Flat, micro-optical bench

  • High stability

  • Included ruler for precise movement along guide rail surfaces

  • Slots allow rails to be shifted to any position independently of the tapped hole pattern

  • Abrasion-resistant black-anodized surface

  • Optical benches

  • Measurement systems

  • Laser structures

  • Mechanical engineering

Product Flat rail FLS 40-400 Flat rail FLS 40-700 Flat rail FLS 40-40 Flat rail FLS 40-100 Flat rail FLS 40-150 Flat rail FLS 40-200 Flat rail FLS 40-300 Flat rail FLS 40-500 Flat rail FLS 40-1000 Flat rail FLS 40-250
Length 400.0 mm 700.0 mm 40.0 mm 100.0 mm 150.0 mm 200.0 mm 300.0 mm 500.0 mm 1000.0 mm 250.0 mm
Width 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm 40.0 mm
Height 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm 15.0 mm
Weight (kg) 0.342 0.593 0.034 0.091 0.137 0.172 0.255 0.424 0.85 0.207
Material / Finishing Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale Black Anodized Aluminum with Scale
Threads / Boreholes 50.8x6.5 mm Slot 50.8x6.5 mm Slot 25.4x6.5 mm Slot 50.8x6.5 mm Slot 25.4x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot 50.8x6.5 mm Slot
Part Number G061358000 G061360000 G061351000 G061352000 G061353000 G061354000 G061356000 G061359000 G061361000 G061355000
  • Flat, micro-optical bench

  • High stability

  • Included ruler for precise movement along guide rail surfaces

  • Slots allow rails to be shifted to any position independently of the tapped hole pattern

  • Abrasion-resistant black-anodized surface

  • Optical benches

  • Measurement systems

  • Laser structures

  • Mechanical engineering
