LINOS Flat Rail System 65
The LINOS® Flat Rail System 65 offers a versatile solution for precise optical setups, bridging the gap between smaller and larger rail systems. Its 65 mm width provides an ideal platform for mounting optics up to 2" in diameter, ensuring stability and accurate component positioning for demanding applications. Designed for smooth carrier movement and easy integration, the FLS 65 enables flexible configurations for research and industrial environments. Whether you are building complex optical assemblies or expanding existing setups, this rail system delivers the reliability and precision needed for consistent, repeatable results.
The LINOSFlat Rail System 65 features precision-machined bearing surfaces for effortless carrier travel and excellent straightness for accurate alignment. Its matte black anodized finish ensures abrasion resistance and supports long-term reliability.
- Flexible mounting options with slotted holes for easy installation
- Smooth, controlled movement for precise optical positioning

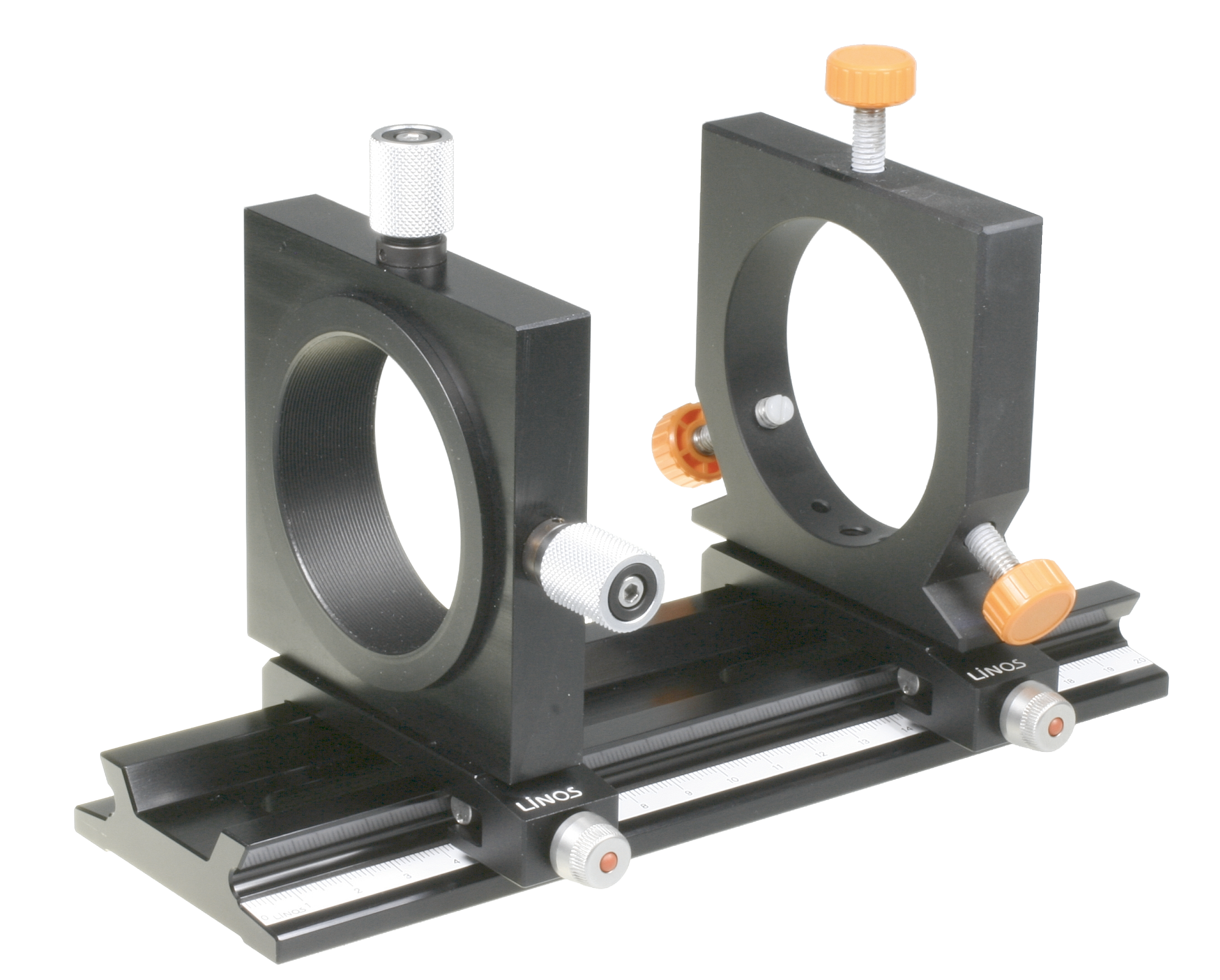

Application Example: Optic holders mounted onto the FLS 65 Flat Rail System.
| Product | Flat rail FLS 65-200 | Flat rail FLS 65-500 | Flat rail FLS 65-750 | Flat rail FLS 65-1000 | Flat rail FLS 65-1500 |
| Length | 200.0 mm | 500.0 mm | 750.0 mm | 1000.0 mm | 1500.0 mm |
| Width | 65.0 mm | 65.0 mm | 65.0 mm | 65.0 mm | 65.0 mm |
| Height | 18.75 mm | 18.75 mm | 18.75 mm | 18.75 mm | 18.75 mm |
| Weight (kg) | 0.345 | 0.862 | 1.316 | 1.728 | |
| Material / Finishing | Black Anodized Aluminum with Scale | Black Anodized Aluminum with Scale | Black Anodized Aluminum with Scale | Black Anodized Aluminum with Scale | Black Anodized Aluminum with Scale |
| Threads / Boreholes | 6.6 mmx50.8 mm Slot | 6.6 mmx50.8 mm Slot | 6.6 mmx50.8 mm Slot | 6.6 mmx50.8 mm Slot | 6.6 mmx50.8 mm Slot |
| Part Number | G036550000 | G036551000 | G036552000 | G036553000 | G036554000 |
