Mounted Plano-Convex Lenses, ARB2-NIR

Excelitas offers an extensive selection of mounted LINOS® Plano-Convex Singlet Lenses, available in a wide range of focal lengths and diameters, making it easy to find the ideal components for your application. Only high-end materials from established manufacturers are used, with the narrowest possible tolerances to ensure the best quality. In addition to the mounted version with a high-quality, black-anodized, engraved aluminum mount, each lens is also available unmounted for convenient custom integration.

Contact Us Buy Now at Digikey

Our mounted plano-convex lenses can integrate seamlessly into LINOS Microbench and Nanobench systems. The plano-convex lenses deliver precise optical performance for applications that require controlled beam focusing. Their narrow focal-length tolerances ensure consistent system integration and reliable optical behavior.

The ARB2 NIR broadband anti-reflection coating ensures high transmission across the 725–1050 nm wavelength range and offers excellent laser damage resistance, providing a high damage threshold and reliable performance under demanding conditions.

ZEMAX files are provided to streamline optical design and simulation. For customized specifications or higher-volume production, contact us for a quotation tailored to your technical requirements.

Plano-Convex Lenses

Note: f = focal length (object side), f' = focal length (image side) , s = object distance, s' = back focal length, Ø = lens diameter, dm = center thickness, dr = edge thickness, h = primary vertex (h=dm-dr-h'), F, F' = focal points, H, H' = principal points; Tolerances: focal length f: ±2% image distance s': ±2%

Plano-Convex Lenses Graphic

Note: Dmech: outer mount, DCA: clear aperture, Doptical: optical size, RR: retaining ring

Specifications broadband anti-reflective coating ARB2 NIR:

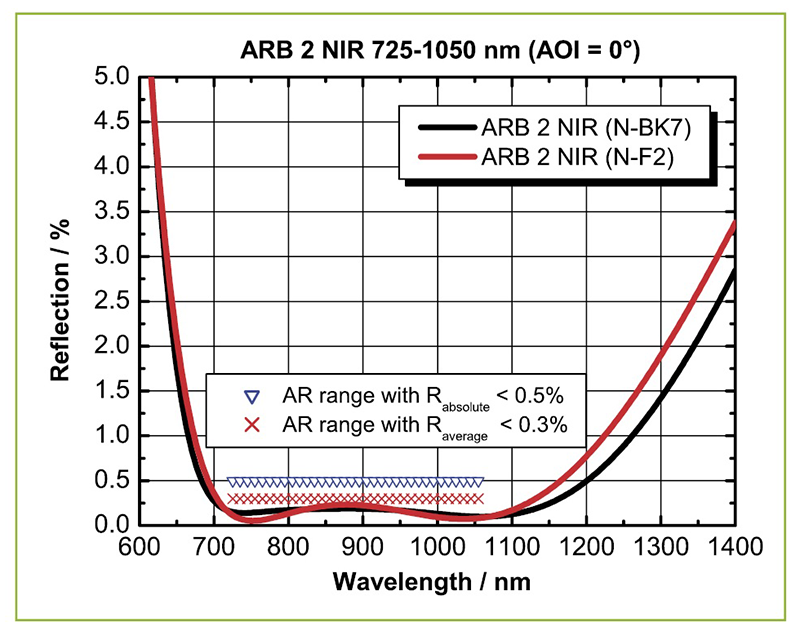

ARB-2-NIR reflection spectrum

  • Guaranteed residual reflection < 0.5 % for angles of incidence 0° ≤ AOI ≤ 15° in the AR range
  • Typical average residual reflection < 0.3 % for angles of incidence 0° ≤ AOI ≤ 15° in the AR range
  • Damage threshold: H∞ > 30 J / cm² for 11 ns laser pulses (s‑on‑1) at 1064 nm and 10 Hz
  • AR range typical: 725–1050 nm
  • Design adaptable to the spectral range of 600 nm ≤ λ ≤ 1400 nm and to higher angles of incidence
