Mounted Plano-Convex Lenses, ARB2-VIS

Excelitas provides a broad selection of Mounted LINOS® Plano-Convex Singlet Lenses in various focal lengths and diameters to suit your application. Featuring an ARB2 VIS broadband anti-reflection coating, these lenses offer high transmission across the 450–700 nm wavelength range and excellent laser-damage resistance. Lenses are available mounted on a black anodized or engraved aluminum mount. All of our lenses are made from premium materials by trusted manufacturers and meet strict tolerances to ensure quality.

Contact Us Buy Now at Digikey

Our mounted plano-convex lenses can integrate seamlessly into LINOS Microbench and Nanobench systems. Their narrow focal-length tolerances ensure consistent system integration and reliable optical behavior.

The ARB2 VIS broadband anti-reflection coating delivers high transmission across the 450–700 nm wavelength range while providing excellent laser damage resistance.

For customized specifications or higher-volume production, our sales team will be pleased to prepare an individualized quotation tailored to your technical requirements.

Image for asset 291710

Note: f = focal length (object side), f' = focal length (image side) , s = object distance, s' = back focal length, Ø = lens diameter, dm = center thickness, dr = edge thickness, h = primary vertex (h=dm-dr-h'), F, F' = focal points, H, H' = principal points; Tolerances: focal length f: ±2% image distance s': ±2%

Specifications broadband anti-reflective coating ARB2 VIS:

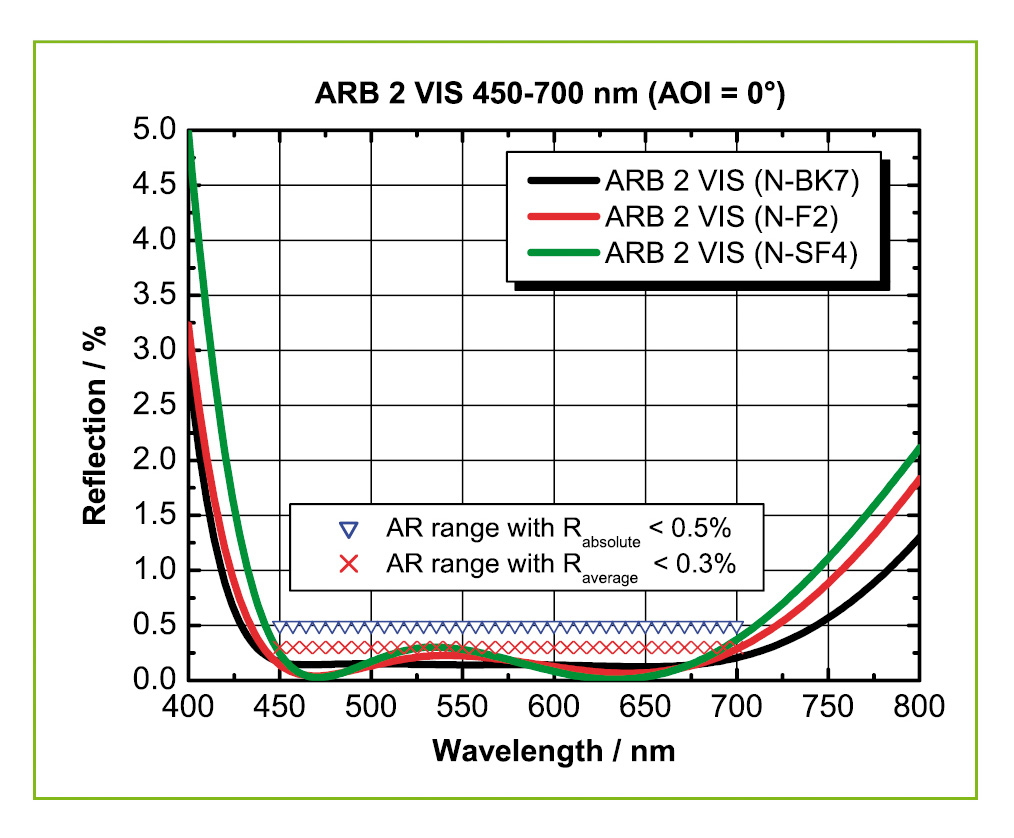

ARB-2-VIS_ reflection spectrum

  • Guaranteed residual reflection < 0.5 % for angles of incidence 0° ≤ AOI ≤ 15° in the AR range
  • Typical average residual reflection < 0.3 % for angles of incidence 0° ≤ AOI ≤ 15° in the AR range
  • Damage threshold H∞ > 30 J / cm² for 11 ns laser pulses (s‑on‑1) at 1064 nm and 10 Hz
  • AR range typical: 450–700 nm
  • Design adaptable to the spectral range of 350 nm ≤ λ ≤ 950 nm and to higher angles of incidence

Product Plano-convex lens; N-BK7; D=12.7; F=150; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=200; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=300; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=8; F=8; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=10; F=10; mounted [ARB2-VIS] Plano-convex lens; N-BaK4; D=10; F=15; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.5; F=20; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.5; F=25; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=30; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=50; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=80; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=100; mounted [ARB2-VIS] Plano-convex lens; N-BaK2; D=6; F=10; mounted [ARB2-VIS] Plano-convex lens; N-LaSF9; D=3; F=2.5; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=3; F=3; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=5; F=5; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=6; F=6; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=12.7; F=500; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=18; F=30; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=40; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=50; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=60; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=80; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=100; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=150; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=22.4; F=200; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=50; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=80; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=100; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=150; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=200; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=300; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=500; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=25.4; F=1000; mounted [ARB2-VIS] Plano-convex lens; N-BaK4; D=31.5; F=40; mounted [ARB2-VIS] Plano-convex lens; N-BaK4; D=31.5; F=50; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=60; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=80; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=100; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=150; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=200; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=300; mounted [ARB2-VIS] Plano-convex lens; N-BK7; D=31.5; F=500; mounted [ARB2-VIS]
Shape Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular
Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted Mounted
Mount Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Nanobench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench Microbench
Focal Length (+/-) 150.0 mm 200.0 mm 300.0 mm 8.0 mm 10.0 mm 15.0 mm 20.0 mm 25.0 mm 30.0 mm 50.0 mm 80.0 mm 100.0 mm 10.0 mm 2.5 mm 3.0 mm 5.0 mm 6.0 mm 500.0 mm 30.0 mm 40.0 mm 50.0 mm 60.0 mm 80.0 mm 100.0 mm 150.0 mm 200.0 mm 50.0 mm 80.0 mm 100.0 mm 150.0 mm 200.0 mm 300.0 mm 500.0 mm 1000.0 mm 40.0 mm 50.0 mm 60.0 mm 80.0 mm 100.0 mm 150.0 mm 200.0 mm 300.0 mm 500.0 mm
Optic Substrate N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BAK4 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BAK2 N-LASF9 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BAK4 N-BAK4 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7 N-BK7
Coating ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS ARB 2 VIS
Optic Size Ø 12.7 mm Ø 12.7 mm Ø 12.7 mm Ø 8.0 mm Ø 10.0 mm Ø 10.0 mm Ø 12.5 mm Ø 12.5 mm Ø 12.7 mm Ø 12.7 mm Ø 12.7 mm Ø 12.7 mm Ø 6.0 mm Ø 3.0 mm Ø 3.0 mm Ø 5.0 mm Ø 6.0 mm Ø 12.7 mm Ø 18.0 mm Ø 22.4 mm Ø 22.4 mm Ø 22.4 mm Ø 22.4 mm Ø 22.4 mm Ø 22.4 mm Ø 22.4 mm Ø 25.4 mm Ø 25.4 mm Ø 25.4 mm Ø 25.4 mm Ø 25.4 mm Ø 25.4 mm Ø 25.4 mm Ø 25.4 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm Ø 31.5 mm
Optic Center Thickness 3.0 mm 3.0 mm 3.0 mm 4.0 mm 5.0 mm 3.0 mm 3.5 mm 3.0 mm 3.0 mm 3.0 mm 3.0 mm 3.0 mm 2.0 mm 1.0 mm 1.5 mm 2.5 mm 3.0 mm 3.0 mm 4.5 mm 5.0 mm 4.5 mm 4.0 mm 3.5 mm 3.2 mm 3.0 mm 2.7 mm 5.0 mm 4.0 mm 4.0 mm 4.0 mm 4.0 mm 4.0 mm 4.0 mm 4.0 mm 8.3 mm 6.7 mm 6.3 mm 5.0 mm 4.5 mm 4.0 mm 3.2 mm 3.0 mm 2.5 mm
Length 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 10.0 mm 10.0 mm 10.0 mm 10.0 mm 10.0 mm 10.0 mm 10.0 mm 10.0 mm 12.0 mm 12.0 mm 12.0 mm 12.0 mm 12.0 mm 12.0 mm 12.0 mm 12.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm
Radius of Curvature 1 77.179 mm 102.92 mm 153.99 mm 4.134 mm 5.168 mm 8.475 mm 10.441 mm 13.05 mm 15.51 mm 26.039 mm 41.269 mm 51.212 mm 5.464 mm 2.126 mm 1.55 mm 2.584 mm 3.101 mm 260.39 mm 15.735 mm 20.833 mm 26.416 mm 31.851 mm 41.867 mm 52.33 mm 78.298 mm 104.41 mm 26.039 mm 41.269 mm 51.212 mm 78.298 mm 102.92 mm 153.99 mm 260.39 mm 508.45 mm 22.874 mm 28.593 mm 31.851 mm 41.568 mm 52.33 mm 78.021 mm 104.04 mm 155.663 mm 259.476 mm
Radius of Curvature 2 -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm -999.0 mm
Tolerance thickness ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.02 mm ± 0.02 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.02 mm ± 0.02 mm ± 0.02 mm ± 0.02 mm ± 0.1 mm ± 0.1 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm
Optic Edge Thickness 2.7 mm 2.8 mm 2.9 mm 0.91 mm 1.14 mm 1.4 mm 1.4 mm 1.4 mm 1.6 mm 2.2 mm 2.5 mm 2.6 mm 1.1 mm 0.38 mm 0.34 mm 0.57 mm 0.68 mm 2.9 mm 1.7 mm 1.7 mm 2.0 mm 2.0 mm 1.9 mm 2.0 mm 2.2 mm 2.1 mm 1.8 mm 2.0 mm 2.4 mm 3.0 mm 3.2 mm 3.5 mm 3.7 mm 3.8 mm 2.0 mm 2.0 mm 2.1 mm 1.9 mm 2.1 mm 2.4 mm 2.0 mm 2.2 mm 2.0 mm
Optic Centering Accuracy (min,sec) 10.0 ' 10.0 ' 10.0 ' 6.0 ' 6.0 ' 6.0 ' 3.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 6.0 ' 6.0 ' 6.0 ' 6.0 ' 6.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 10.0 ' 3.0 ' 3.0 ' 3.0 ' 3.0 ' 3.0 ' 3.0 ' 3.0 ' 3.0 ' 3.0 '
Tolerance of optic size - 0.12 mm - 0.12 mm - 0.12 mm - 0.04 mm - 0.04 mm - 0.04 mm - 0.05 mm - 0.11 mm - 0.12 mm - 0.12 mm - 0.12 mm - 0.12 mm - 0.03 mm - 0.02 mm - 0.02 mm - 0.03 mm - 0.03 mm - 0.12 mm - 0.11 mm - 0.13 mm - 0.13 mm - 0.13 mm - 0.13 mm - 0.13 mm - 0.13 mm - 0.13 mm - 0.15 mm - 0.15 mm - 0.15 mm - 0.15 mm - 0.15 mm - 0.15 mm - 0.15 mm - 0.15 mm - 0.07 mm - 0.07 mm - 0.07 mm - 0.07 mm - 0.07 mm - 0.07 mm - 0.07 mm - 0.07 mm - 0.07 mm
f' at X nm 148.79 mm
149.84 mm
152.34 mm 		198.41 mm
199.81 mm
203.14 mm 		296.86 mm
298.96 mm
303.94 mm 		7.97 mm
8.03 mm
8.16 mm 		9.96 mm
10.03 mm
10.2 mm 		14.84 mm
14.95 mm
15.22 mm 		20.13 mm
20.27 mm
20.61 mm 		25.16 mm
25.34 mm
25.76 mm 		29.9 mm
30.11 mm
30.61 mm 		50.2 mm
50.55 mm
51.4 mm 		79.56 mm
80.12 mm
81.46 mm 		98.73 mm
99.43 mm
101.08 mm 		10.08 mm
10.15 mm
10.32 mm 		2.48 mm
2.52 mm
2.58 mm 		2.99 mm
3.01 mm
3.06 mm 		4.98 mm
5.02 mm
5.1 mm 		5.98 mm
6.02 mm
6.12 mm 		501.98 mm
505.53 mm
513.96 mm 		30.33 mm
30.55 mm
31.05 mm 		40.16 mm
40.45 mm
41.12 mm 		50.93 mm
51.28 mm
52.14 mm 		61.4 mm
61.84 mm
62.86 mm 		80.71 mm
81.28 mm
82.64 mm 		100.88 mm
101.6 mm
103.28 mm 		150.94 mm
152.02 mm
154.54 mm 		201.28 mm
202.72 mm
206.08 mm 		50.2 mm
50.55 mm
51.4 mm 		79.56 mm
80.12 mm
81.46 mm 		98.73 mm
99.43 mm
101.08 mm 		150.94 mm
152.01 mm
154.55 mm 		198.41 mm
199.81 mm
203.14 mm 		296.86 mm
298.96 mm
303.94 mm 		501.98 mm
505.53 mm
513.96 mm 		980.2 mm
987.12 mm
1003.6 mm 		40.04 mm
40.36 mm
41.08 mm 		50.05 mm
50.46 mm
51.35 mm 		61.4 mm
61.84 mm
62.86 mm 		80.14 mm
80.7 mm
82.05 mm 		100.88 mm
101.6 mm
103.28 mm 		150.41 mm
151.47 mm
153.99 mm 		200.57 mm
201.99 mm
205.36 mm 		300.09 mm
302.21 mm
307.25 mm 		500.22 mm
503.76 mm
512.16 mm
Outer Mount Diameter 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 16.0 mm 25.0 mm 25.0 mm 25.0 mm 25.0 mm 25.0 mm 25.0 mm 25.0 mm 25.0 mm 30.0 mm 30.0 mm 30.0 mm 30.0 mm 30.0 mm 30.0 mm 30.0 mm 30.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm
s' at X nm 147.36 mm 197.17 mm 295.99 mm 5.36 mm 6.7 mm 12.99 mm 17.9 mm 23.27 mm 28.03 mm 48.41 mm 77.88 mm 97.12 mm 8.82 mm 1.96 mm 2.01 mm 3.35 mm 4.02 mm 501.87 mm 27.48 mm 37.02 mm 48.15 mm 59.0 mm 78.71 mm 99.15 mm 149.54 mm 200.27 mm 47.09 mm 77.88 mm 96.46 mm 148.87 mm 196.51 mm 295.33 mm 501.22 mm 981.21 mm 34.92 mm 45.99 mm 57.48 mm 77.14 mm 98.3 mm 148.33 mm 199.21 mm 299.23 mm 500.43 mm

  • Our mounted lenses integrate seamlessly into LINOS Microbench and Nanobench systems

  • Tight manufacturing tolerances for excellent performance and precision mounting

  • Standard VIS coating: ARB2 VIS (450–700 nm), designed to maximize transmission across the visible spectrum

  • Mount made of black anodized aluminum with laser engraving

  • ZEMAX files available, enabling easy system design and simulation

ZEMAX-Files Plano-Convex Lenses
