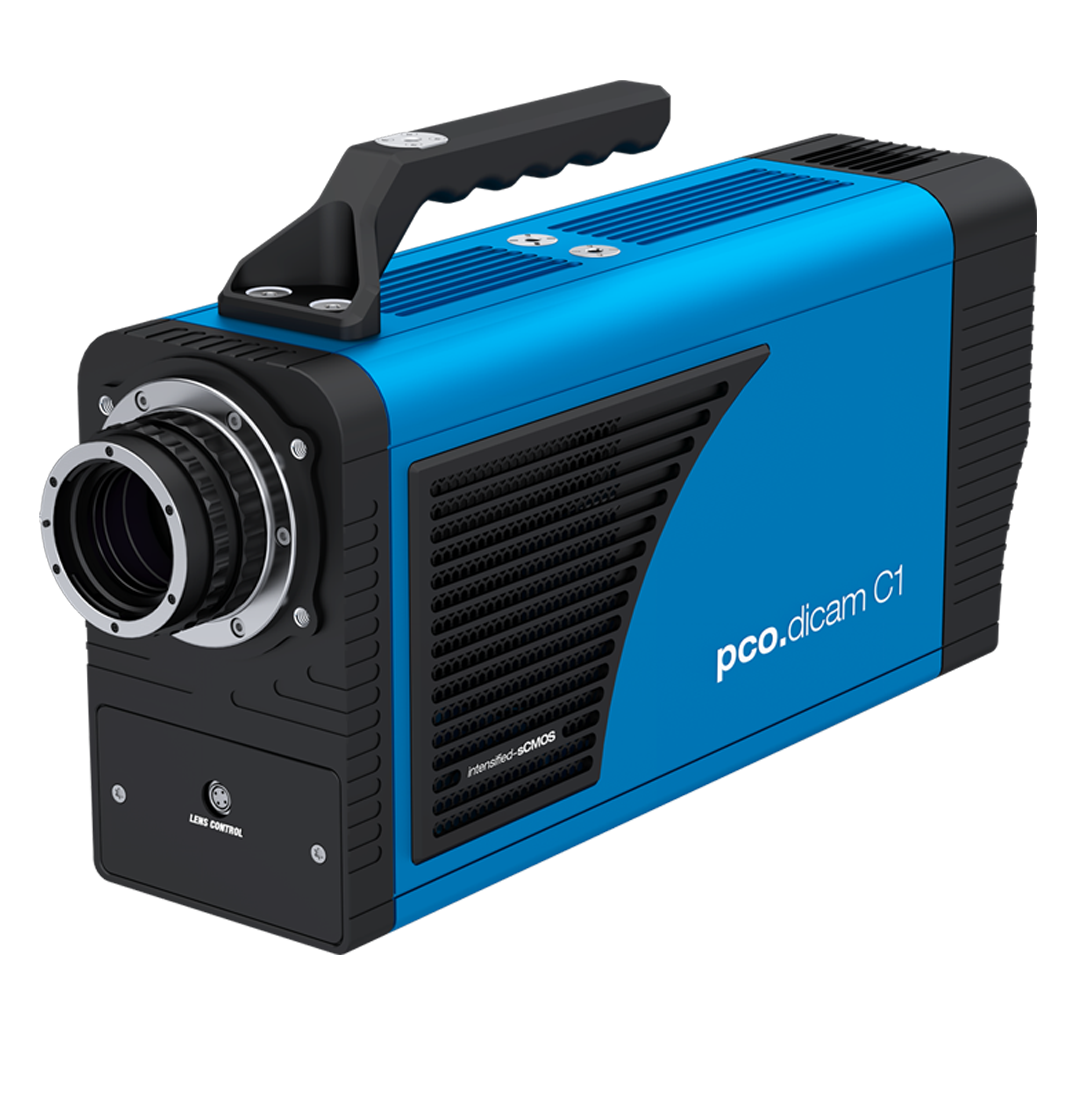

pco.dicam C1 LT Single-Channel Intensified Camera

pco.dicam C1 LT Single-Channel Intensified Camera

The pco.dicam C1 LT intensified sCMOS camera is built on our proven pco.dicam C1 platform technology and offers full access to true optical gated imaging suitable for a variety of short exposure applications. This camera features an 18 mm image intensifier with a S20 photocathode optically coupled to a 16-bit sCMOS sensor via an efficient tandem lens. Single photons can be detected using exposure times down to 51 ns with a frame rate up to 120 fps at full 2.3 MPixel resolution.

Try MachVis OnLine!

Access our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.

Contact Excelitas
Try MachVis OnLine!

Offering a 10G fiber optic data interface (Camera Link HS), pco.dicam C1 LT intensified camera guarantees uncompressed and robust 16-bit data transfer in real time via optical fiber over virtually any distance. For applications which do not challenge the absolute technical limits in intensified imaging, pco.dicam C1 LT is the most suitable and economical alternative to our higher end pco.dicam C1 and pco.dicam C1 UHS.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.


Variant No export restrictions
Intensifier diameter 18 mm
Photocathode material S20
Intensifier quality grade Selected
Phosphor screen material P46
Default intensifier input window Synthetic silica
Optional intensifier input window None
Resolution (width x height) 1504 x 1504 pixels
Frame rate at full resolution  120 fps
Typical shortest exposure time 51 ns
Default mount F-mount
Final test sheet On request
  • Laser induced incandescence (LII)
  • Shock wave physics
  • Laser induced breakdown spectroscopy (LIBS)
  • Particle image velocimetry (PIV)
  • Time resolved spectroscopy
  • Plasmaphysics
  • Laser induced fluorescence (LIF) ballistics
  • Combustion

Variant No export restrictions
Intensifier diameter 18 mm
Photocathode material S20
Intensifier quality grade Selected
Phosphor screen material P46
Default intensifier input window Synthetic silica
Optional intensifier input window None
Resolution (width x height) 1504 x 1504 pixels
Frame rate at full resolution  120 fps
Typical shortest exposure time 51 ns
Default mount F-mount
Final test sheet On request
  • Laser induced incandescence (LII)
  • Shock wave physics
  • Laser induced breakdown spectroscopy (LIBS)
  • Particle image velocimetry (PIV)
  • Time resolved spectroscopy
  • Plasmaphysics
  • Laser induced fluorescence (LIF) ballistics
  • Combustion
