pco.dicam C1 Single-Channel Intensified Camera

pco.dicam C1 Single-Channel Intensified Camera

Excelitas pco.dicam C1 is our standard intensified camera system featuring 2048 x 2048 pixel resolution suitable for high-end intensified imaging. This camera offers advanced optical coupling of a high-resolution 25 mm image intensifier to a 16-bit sCMOS sensor via a high efficiency tandem lens making it possible to detect single photos with shortest exposure times down to 4 ns and with a frame rate up to 106 fps at full 4.2 MPixel resolution.

Contact Us Find a Distributor

Try MachVis OnLine!

Access our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.

MachVis OnLine
Excelitas Technologies
Try MachVis OnLine!

The pco.dicam C1 standard represents the next generation of advanced, intensified imaging. Leveraging more than three decades of developing intensified camera systems combined with our pioneering scientific CMOS expertise, our pco.dicam series offers high-performance in both image quality and optical gating.

Its 10G fiber optic data interface (Camera Link HS) guarantees an uncompressed and secure data transfer. With the latest standard of high-performance data interfaces, bridging long distances even in challenging experimental environments via fiber optic cable is simple.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.


Variant High resolution High resolution
Intensifier diameter  25 mm 25 mm
Photocathode material S20 GaAs, GaAsP
Intensifier quality grade Selected Standard/selected
Phosphor screen material P43 or P46 P43 or P46
Default intensifier input window Synthetic silica Borosilicate
Optional intensifier input window MgF2 None
Resolution (width x height) 2048 x 2048 pixels 2048 x 2048 pixels
Frame rate at full resolution 106 fps 106 fps
Typical shortest exposure time 4 ns 4 ns
Default mount F-mount F-mount
Optional mount C-mount
Canon EF mount		 C-mount
Canon EF mount
Final test sheet Included Included



Front View

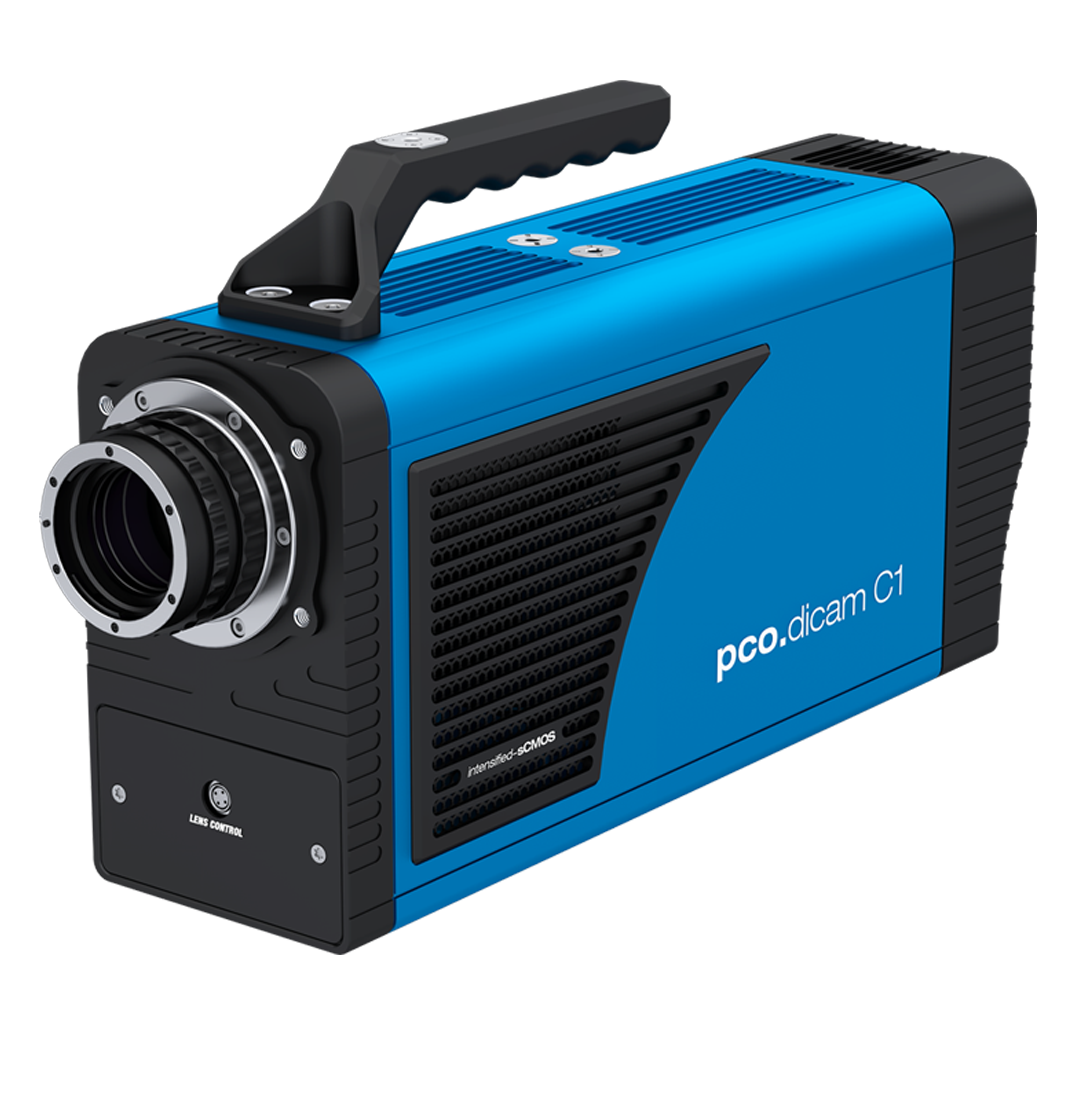

Front View 45 Degree
Rear View
Side View
  • Laser induced incandescence (LII)
  • Shock wave physics
  • Laser induced breakdown spectroscopy (LIBS)
  • Particle image velocimetry (PIV)
  • Time resolved spectroscopy
  • Plasmaphysics
  • Laser induced fluorescence (LIF) ballistics
  • Combustion

Variant High resolution High resolution
Intensifier diameter  25 mm 25 mm
Photocathode material S20 GaAs, GaAsP
Intensifier quality grade Selected Standard/selected
Phosphor screen material P43 or P46 P43 or P46
Default intensifier input window Synthetic silica Borosilicate
Optional intensifier input window MgF2 None
Resolution (width x height) 2048 x 2048 pixels 2048 x 2048 pixels
Frame rate at full resolution 106 fps 106 fps
Typical shortest exposure time 4 ns 4 ns
Default mount F-mount F-mount
Optional mount C-mount
Canon EF mount		 C-mount
Canon EF mount
Final test sheet Included Included



  • Laser induced incandescence (LII)
  • Shock wave physics
  • Laser induced breakdown spectroscopy (LIBS)
  • Particle image velocimetry (PIV)
  • Time resolved spectroscopy
  • Plasmaphysics
  • Laser induced fluorescence (LIF) ballistics
  • Combustion
