Powered by Biozpco.dicam C4 Four-Channel Intensified Camera
Excelitas pco.dicam C4 is a fully integrated four-channel, high resolution intensified camera. Featuring an advanced optical beam splitter, the pco.dicam C4 equally distributes incident light from a single optical input to four 25 mm image intensifiers enabling single photon detection with nanosecond time resolution. This ultra-fast four-channel camera offers unique intensified 16-bit sCMOS capabilities with an advanced tandem lens system to ensure high transmission efficiency and no artifacts for outstanding image quality.
Our four-channel pco.dicam C4 intensified camera is uniquely designed with an sCMOS sensor integrated with each detector to allow extremely high burst frame repetition rates for high-speed imaging. Featuring a 40G fiber optic data interface (Camera Link HS FOL), the pco.dicam C4 guarantees uncompressed and robust data transfer up to 3.4 GByte/s via optical fiber over virtually any distance.
| Variant | High resolution | High resolution |
| Intensifier diameter | 25 mm | 25 mm |
| Photocathode material | S20 | GaAs, GaAsP |
| Intensifier quality grade | Selected | Standard/selected |
| Phosphor screen material | P43 or P46 | P43 or P46 |
| Resolution (width x height) | 2048 x 2048 pixels | 2048 x 2048 pixels |
| Frame rate at full resolution | 424 fps | 424 fps |
| Typical shortest exposure time | 4 ns | 4 ns |
| Default mount | F-mount | F-mount |
| Optional mount | Canon EF mount | Canon EF mount |
| Final test sheet | Included | Included |
- Laser induced incandescence (LII)
- Shock wave physics
- Laser induced breakdown spectroscopy (LIBS)
- Particle image velocimetry (PIV)
- Time resolved spectroscopy
- Plasmaphysics
- Laser induced fluorescence (LIF) ballistics
- Combustion

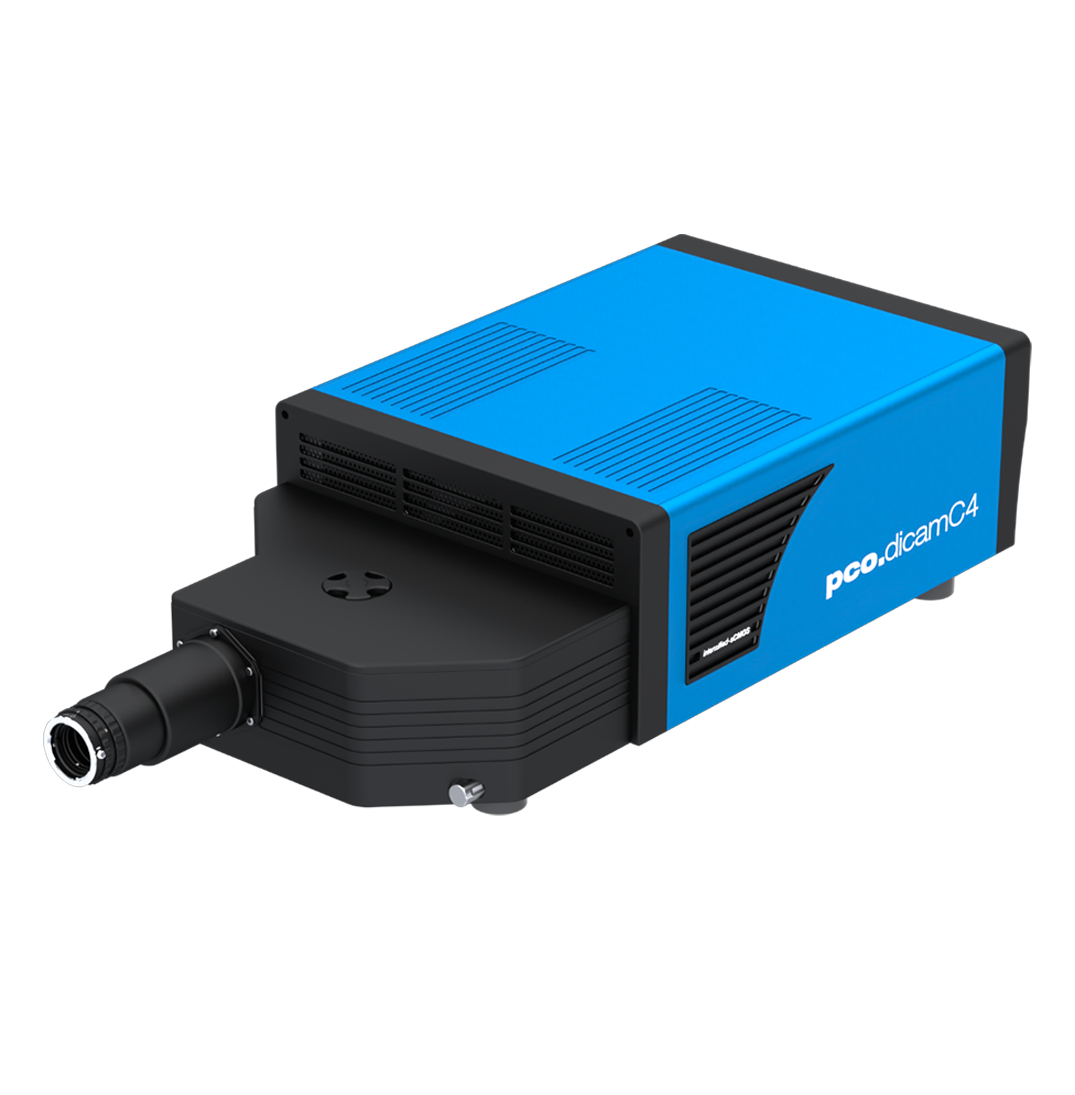

Front View 45 Degree
Rear View
Side View
| Variant | High resolution | High resolution |
| Intensifier diameter | 25 mm | 25 mm |
| Photocathode material | S20 | GaAs, GaAsP |
| Intensifier quality grade | Selected | Standard/selected |
| Phosphor screen material | P43 or P46 | P43 or P46 |
| Resolution (width x height) | 2048 x 2048 pixels | 2048 x 2048 pixels |
| Frame rate at full resolution | 424 fps | 424 fps |
| Typical shortest exposure time | 4 ns | 4 ns |
| Default mount | F-mount | F-mount |
| Optional mount | Canon EF mount | Canon EF mount |
| Final test sheet | Included | Included |
- Laser induced incandescence (LII)
- Shock wave physics
- Laser induced breakdown spectroscopy (LIBS)
- Particle image velocimetry (PIV)
- Time resolved spectroscopy
- Plasmaphysics
- Laser induced fluorescence (LIF) ballistics
- Combustion
Front View 45 Degree
Rear View
Side View
