pco.dicam C8 UHS Eight-Channel Intensified Camera

pco.dicam C8 UHS Eight-Channel Intensified Camera

The pco.dicam C8 UHS combines eight ultra-fast 18 mm high-quality image intensifiers in a fully integrated 8-channel sCMOS camera system. With advanced optical coupling via ultra-fast tandem lens to a 16-bit sCMOS sensor, the pco.dicam C8 UHS equally distributes light from a single optical input to each intensifier with 2.5 ns shortest gating. Each channel can detect single photons at full 2.3 MPixel resolution.

Contact Us Find a Distributor

With extremely high burst frame repetition rates, the pco.dicam C8 UHS can record sequences of 8 ultra-fast images in 20 ns or 16 images in 620 ns while ensuring maximum image quality. Featuring 80G fiber optic based data interface (CLHS FOL), this camera ensures uncompressed and robust 16-bit data transfer of 1144 full frames per second via optical fiber over virtually any distance.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.


Variant Ultra high-speed Ultra high-speed
Intensifier diameter  18 mm 18 mm
Photocathode material S20 GaAs, GaAsP
Intensifier quality grade Selected Standard
Phosphor screen material P43 or P46 P43 or P46
Resolution (width x height) 1504 x 1504 pixels 1504 x 1504 pixels
Frame rate at full resolution 1144 fps 1144 fps
Typical shortest exposure time 2.5 ns 4 ns
Default mount F-mount F-mount
Optional mount Canon EF mount Canon EF mount
Final test sheet Included Included

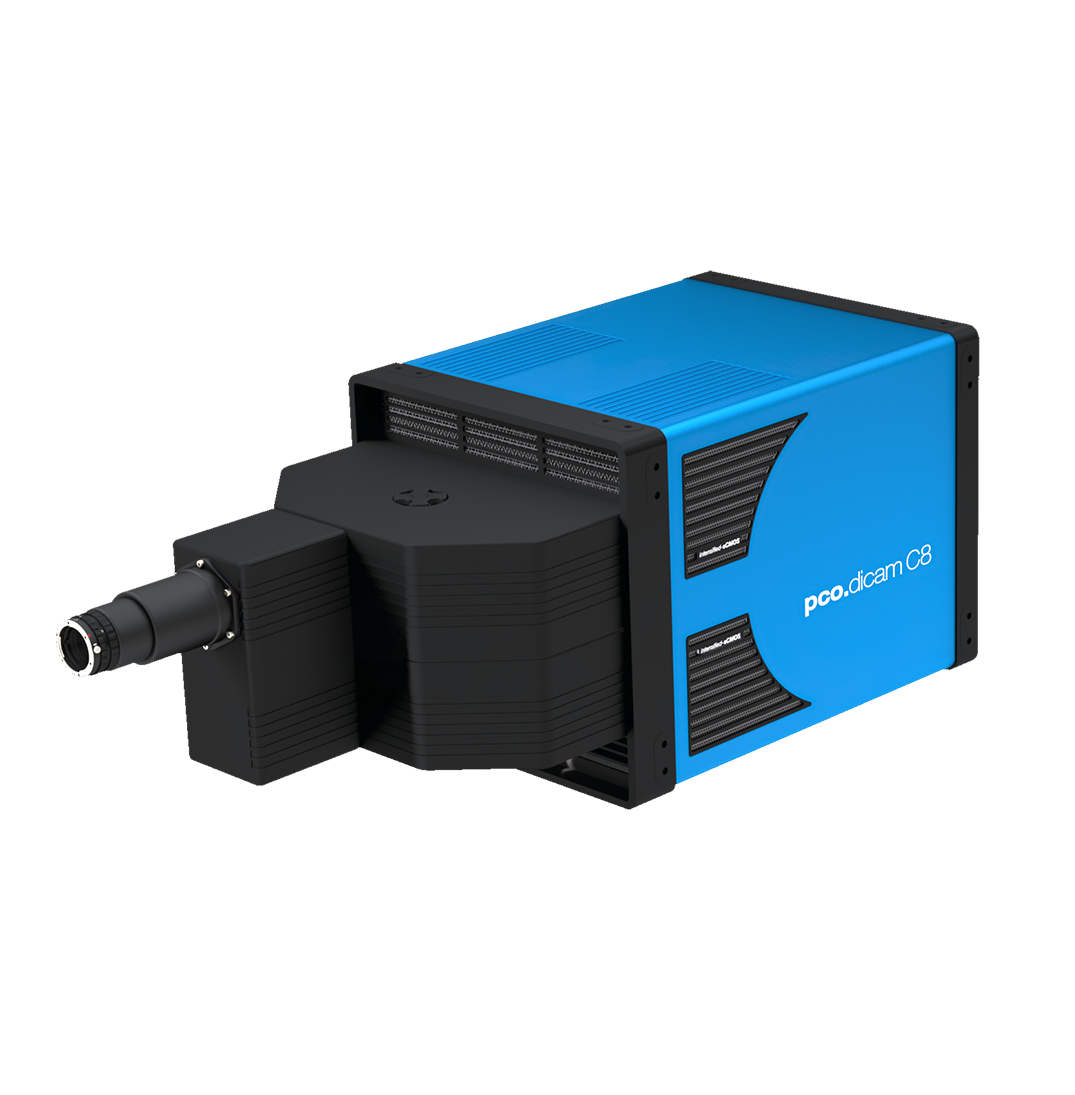

Front View 45 Degree
Rear View
Side View
  • Laser induced incandescence (LII)
  • Shock wave physics
  • Laser induced breakdown spectroscopy (LIBS)
  • Particle image velocimetry (PIV)
  • Time resolved spectroscopy
  • Plasmaphysics
  • Laser induced fluorescence (LIF)
  • Ballistics
  • Combustion

Variant Ultra high-speed Ultra high-speed
Intensifier diameter  18 mm 18 mm
Photocathode material S20 GaAs, GaAsP
Intensifier quality grade Selected Standard
Phosphor screen material P43 or P46 P43 or P46
Resolution (width x height) 1504 x 1504 pixels 1504 x 1504 pixels
Frame rate at full resolution 1144 fps 1144 fps
Typical shortest exposure time 2.5 ns 4 ns
Default mount F-mount F-mount
Optional mount Canon EF mount Canon EF mount
Final test sheet Included Included
  • Laser induced incandescence (LII)
  • Shock wave physics
  • Laser induced breakdown spectroscopy (LIBS)
  • Particle image velocimetry (PIV)
  • Time resolved spectroscopy
  • Plasmaphysics
  • Laser induced fluorescence (LIF)
  • Ballistics
  • Combustion
