pco.edge 26 USB

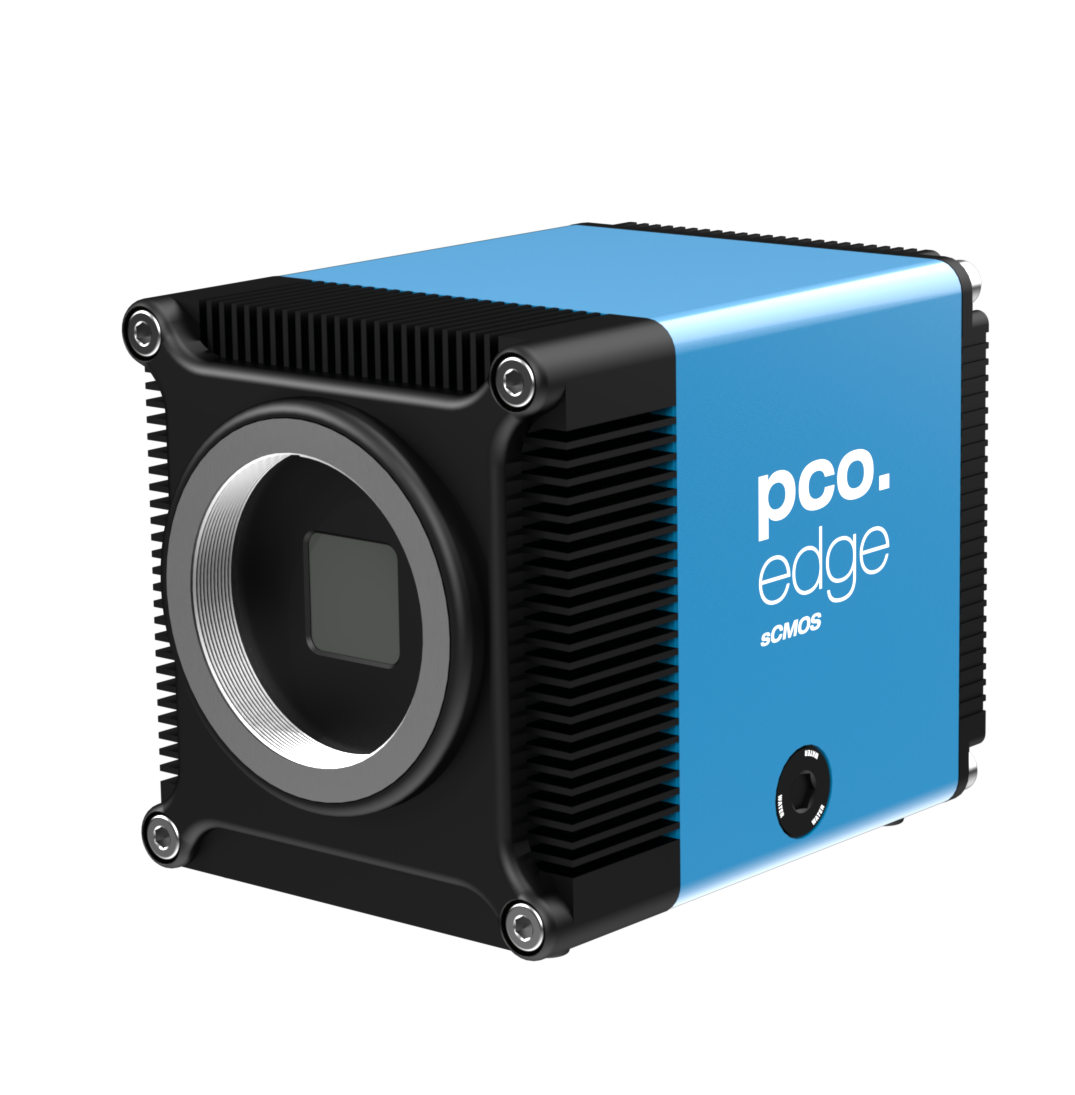

pco.edge 26 USB sCMOS Camera

Excelitas pco.edge 26 USB sCMOS camera features a 5120 x 5120 pixel resolution with 2.5 x 2.5 µm pixel size to achieve highest spatial resolution critical for imaging in microscopy, quality control, high throughput screening, and other mesoscopic applications. The pco.edge 26 camera also offers optimal performance for microscopy imaging with low magnification. In addition, its true charge domain global shutter allows for an exceptionally low readout noise and dark current. Combined with its adjustable cooling feature, the pco.edge 26 allows extended exposure times of up to 60 seconds.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.





Interface

 USB 3.1 Gen 1

Sensor technology

sCMOS

Color type

monochrome

Resolution

5120 x 5120 pixels

Sensor diagonal

18.1 mm

Pixel size

2.5 x 2.5 μm

Maximum frame rate @ full resolution

6 fps

Maximum pixel rate

157 MPixel/s

Peak QE

72 % @ 500 nm

Typ. read noise1

2.3 e-

Dark current @ sensor temperature

0.09 @ -10 °C e-/pixel/s

Maximum dynamic range

2000 : 1

Shutter type

Global Shutter

Sensor cooling2

air & water


Dimensions (H x W x L)



85 x 80 x 109 mm




1 The readout noise values are given as median (med). All values are raw data without any filtering.
2 air = air forced with fan | water = external water connection
pco.edge 26 QE Curve
pco.edge 26 QE Curve
pco.edge 26 QE Curve

  • Brightfield microscopy
  • Fluorescence microscopy
  • Digital pathology
  • Light sheet fluorescence microscopy (LSFM)
  • Structured illumination microscopy (SIM)
  • High-speed bright field ratio imaging
  • High throughput screening
  • High content screening
  • Biochip reading
  • Spinning disk confocal microscopy
  • 3D metrology
  • Industrial quality inspection
