pco.panda 4.2 bi USB

pco.panda 4.2 bi sCMOS Camera

Featuring sCMOS technology, the pco.panda 4.2 bi is a back-illuminated camera with a quantum efficiency of up to 95 % making this camera perfectly suited for demanding low-light imaging without the need for active cooling. With a sCMOS sensor of 2048 x 2048 pixels and a 6.5 x 6.5 μm pixel size, our ultra-compact pco.panda 4.2 bi provides greater detail for highly qualitative images.

Contact Us Find a Distributor

Try MachVis OnLine!

Access our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.

MachVis OnLine
Excelitas Technologies
Try MachVis OnLine!

The pco.panda 4.2 bi utilizes a USB 3.1 interface eliminating the need for external power supplies and allows faster data transfers making this camera ideal for various microscopy and life science applications.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.





Interface

USB 3.1 Gen 1

Sensor technology

back-illuminated sCMOS

Color type

monochrome

Resolution

2048 x 2048 pixels

Sensor diagonal

18.8 mm

Pixel size

6.5 x 6.5 μm

Maximum frame rate

@ full resolution

40 fps

Maximum pixel rate

184 MPixel/s

Peak QE

92 % @ 550 nm

Typ. read noise1

1.8 e-

Maximum dynamic range

26,667 : 1

Shutter type

Rolling Shutter

Sensor cooling

passive

Additional options2

lightsheet scanning mode,

low light mode

Dimensions (H x W x L)

65 x 65 x 66 mm


1 The readout noise values are given as median (med). All values are raw data without any filtering.
2 Selectable via software.
Front View

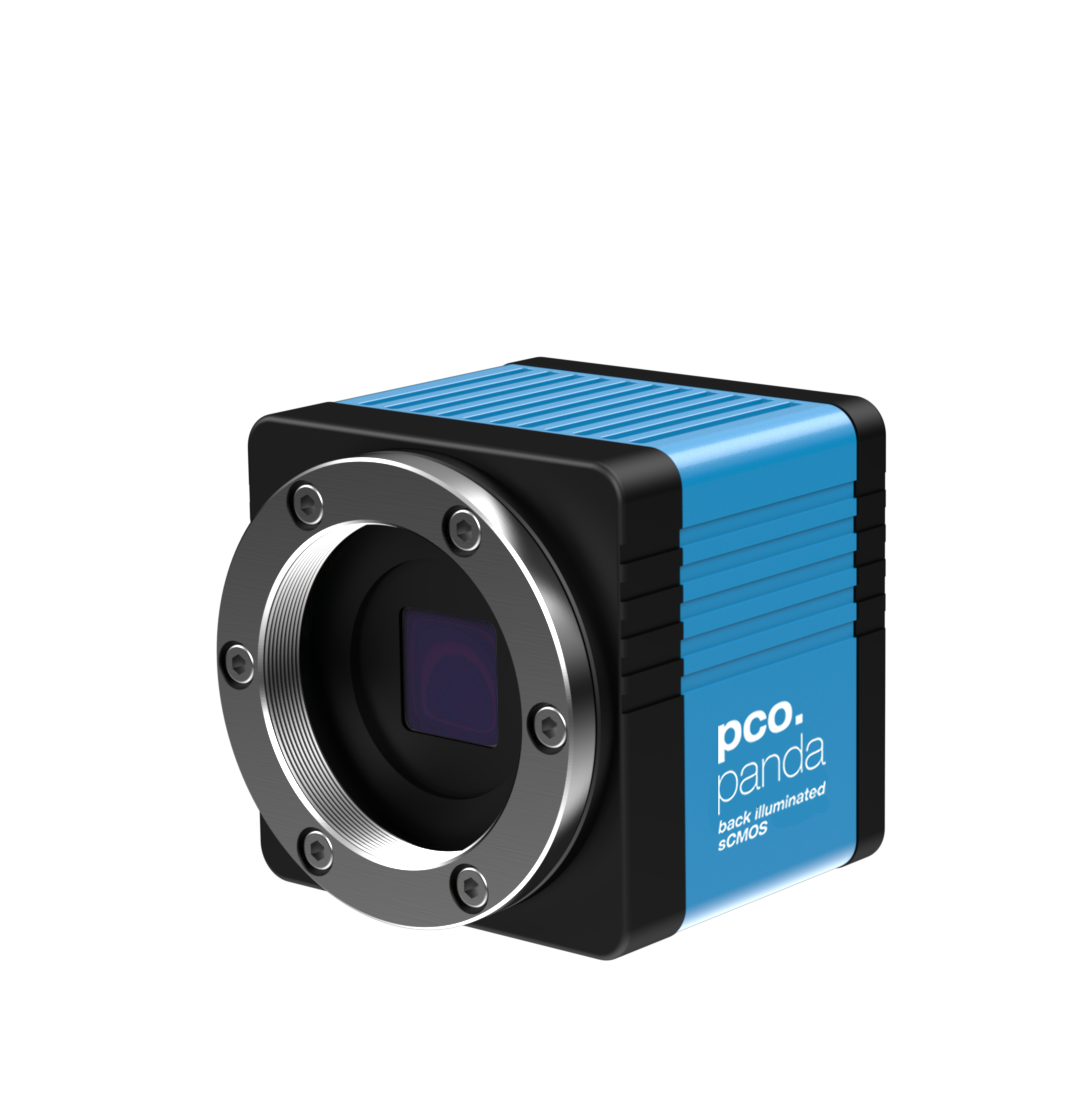

Front View 45 Degree
Rear View
Side View
pco.panda 4.2 bi QE Curve
pco.panda 4.2 bi QE Curve
pco.panda 4.2 bi QE Curve
  • Brightfield microscopy
  • Fluorescence microscopy
  • Single molecule localization microscopy
  • Lightsheet fluorescence microscopy (LSFM)
  • Calcium imaging
  • FRET
  • FRAP
  • High-speed, bright-field ratio imaging
  • Biochip reading
  • Spinning disk confocal microscopy
  • Ophthalmology
  • Industrial quality inspection





Interface

USB 3.1 Gen 1

Sensor technology

back-illuminated sCMOS

Color type

monochrome

Resolution

2048 x 2048 pixels

Sensor diagonal

18.8 mm

Pixel size

6.5 x 6.5 μm

Maximum frame rate

@ full resolution

40 fps

Maximum pixel rate

184 MPixel/s

Peak QE

92 % @ 550 nm

Typ. read noise1

1.8 e-

Maximum dynamic range

26,667 : 1

Shutter type

Rolling Shutter

Sensor cooling

passive

Additional options2

lightsheet scanning mode,

low light mode

Dimensions (H x W x L)

65 x 65 x 66 mm


1 The readout noise values are given as median (med). All values are raw data without any filtering.
2 Selectable via software.
pco.panda 4.2 bi QE Curve
pco.panda 4.2 bi QE Curve
pco.panda 4.2 bi QE Curve
  • Brightfield microscopy
  • Fluorescence microscopy
  • Single molecule localization microscopy
  • Lightsheet fluorescence microscopy (LSFM)
  • Calcium imaging
  • FRET
  • FRAP
  • High-speed, bright-field ratio imaging
  • Biochip reading
  • Spinning disk confocal microscopy
  • Ophthalmology
  • Industrial quality inspection
