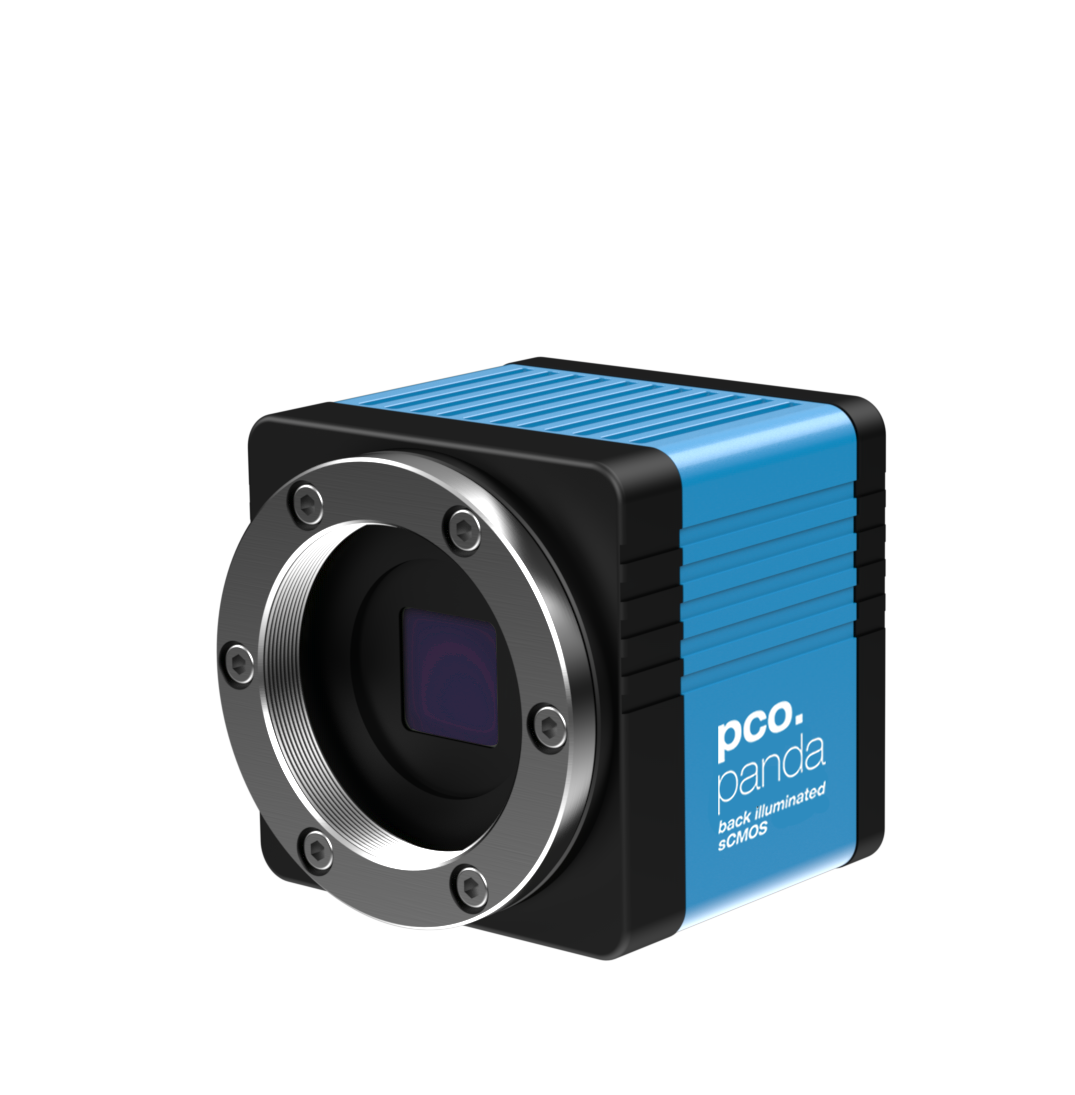

pco.panda 4.2 bi UV sCMOS Camera

Excelitas pco.panda 4.2 bi UV is an ultra-compact, back-illuminated scientific CMOS camera with high resolution from UV to VIS. Featuring 2048 x 2048 pixels resolution and 6.5 x 6.5 μm pixel size, the pco.panda 4.2 bi UV ensures greater detail diversity and highly qualitative images. With a specialized input window, the pco.panda 4.2 bi UV achieves a high quantum efficiency of up to 90 % in the ultraviolet wavelength range. This camera is perfectly suited for applications with demanding lighting conditions without the need for active cooling.

The pco.panda 4.2 bi UV comes with a USB 3.1 connection that eliminates the need for an external power supply allowing for faster data transfer and direct power via USB cable. Designed with the latest back illuminated sCMOS technology in an ultra-compact design, the pco.panda 4.2 bi UV is ideal for ultraviolet wavelength detection. In addition, the broad range of spectral sensitivity allows the same camera to be used in a variety of life science applications.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.





Interface

USB 3.1 Gen 1

Sensor technology

back-illuminated sCMOS

Color type

monochrome

Resolution

2048 x 2048 pixels

Sensor diagonal

18.8 mm

Pixel size

6.5 x 6.5 μm

Maximum frame rate

@ full resolution

40 fps

Maximum pixel rate

184 MPixel/s

Peak QE

90 % @ 550 nm, 46 % @ 240 nm

Typ. read noise

1.8 e-

Maximum dynamic range

26,667 : 1

Shutter type

Rolling Shutter

Sensor cooling

passive

Additional options2

lightsheet scanning mode,

low light mode

Dimensions (H x W x L)

65 x 65 x 66 mm



1 The readout noise values are given as median (med). All values are raw data without any filtering.
2 Selectable via software.
pco.panda 4.2 bi UV QE Curve
pco.panda 4.2 bi UV QE Curve
pco.panda 4.2 bi UV QE Curve

  • Corona discharge detection
  • Spectroscopy
  • Material sciences
  • Forensic applications
  • Brightfield microscopy
  • Fluorescence microscopy
  • Single molecule localization microscopy
  • Lightsheet fluorescence microscopy (LSFM)
  • Calcium imaging
  • FRET
  • FRAP
  • High-speed bright field ratio imaging
  • Biochip reading
  • Spinning disk confocal microscopy
  • Ophthalmology
  • Industrial quality inspection
