PYQ 1548 Quad-Element Low-Power DigiPyro
PART/ PYQ 1548

PYQ 1548 Quad-Element Low-Power DigiPyro

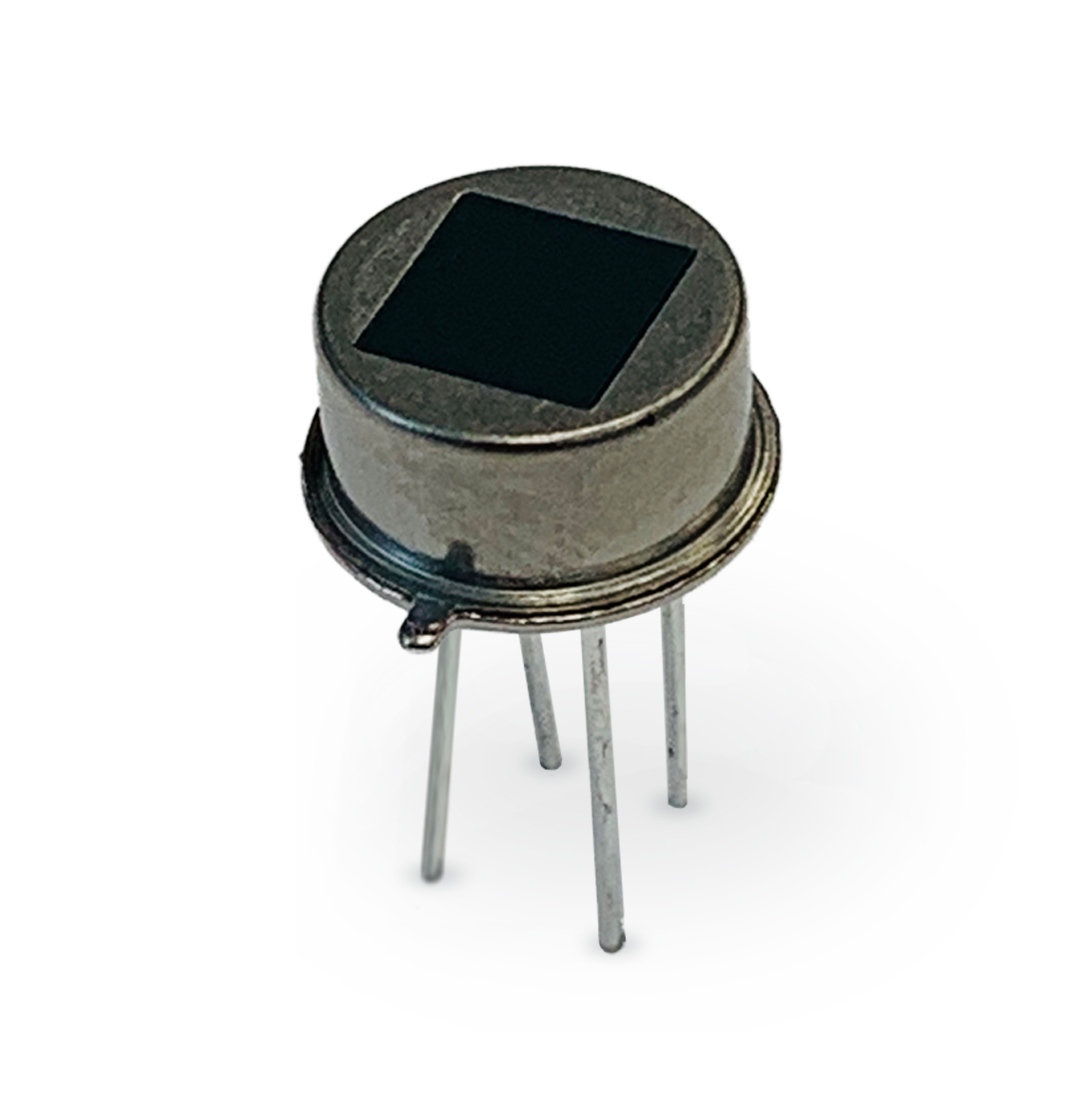

With a mere 1.8 V power requirement, Excelitas offers the first real low-power enhanced DigiPyro® Series. The PYD 1548 is a fully integrated, Quad-Element Detector. That DigiPyro offers added features and low-current power consumption for extended remote motion detection in battery operated devices.

The Low-Power DigiPyro PYQ 1548 works at the new industry-leading standard of 1.8 V supply voltage and significantly reduced supply current. The power requirements of the system level can be further reduced with the wake-up/sleep feature of this detector series, which also promotes power efficiency and extends service life. This Pyrodetector Series is ideal for prolonged battery operated motion detection. A selectable band-pass function and pulse count option further compliment the full functionality of this device. That sensor is also available with smaller elements of 0.8x0.8 mm². Small elements are suitable for compact lenses and short detection distances.

Features

  • Integrated digitization
  • Motion detection unit with interrupt function
  • Low-power consumption of only 3 µA at 1.8 V
  • High-responsivity ceramic pyroelectric elements
  • Dual detector with 1 × 1 mm² (0.8 x 0.8 mm²) elements
  • 119° (140°) Field-of-view
  • TO-5 metal housing for high EMI immunity
  • Optimal for easy integration into product designs

Applications

  • Mid (Short)-range motion detection (with lens)
  • Energy saving applications
  • Intrusion alarms
  • Ceiling mounting applications
  • Battery operation

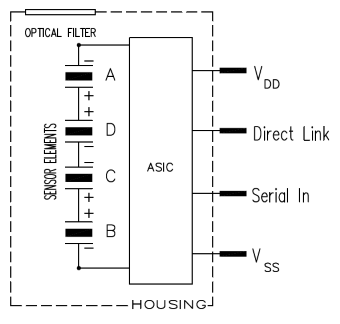

PYQ 1548 Diagram
  • Responsivity: 6.5 (10.2) kV/W (typical)
  • Noise: 6 (9) digits (typ), 24 (31) digits(max)
  • Operating power requirements: 1.8-3.6 V / 3 µA
  • Housing with optical window: TO-5
  • PYQ 1548 Field-of-view (horiz/vert): 119° (140°) /119° (140°)
  • Responsivity: 6.5 (10.2) kV/W (typical)
  • Noise: 6 (9) digits (typ), 24 (31) digits(max)
  • Operating power requirements: 1.8-3.6 V / 3 µA
  • Housing with optical window: TO-5
  • PYQ 1548 Field-of-view (horiz/vert): 119° (140°) /119° (140°)
