Solar Simulation Flashlamps

Solar Simulation Flashlamps

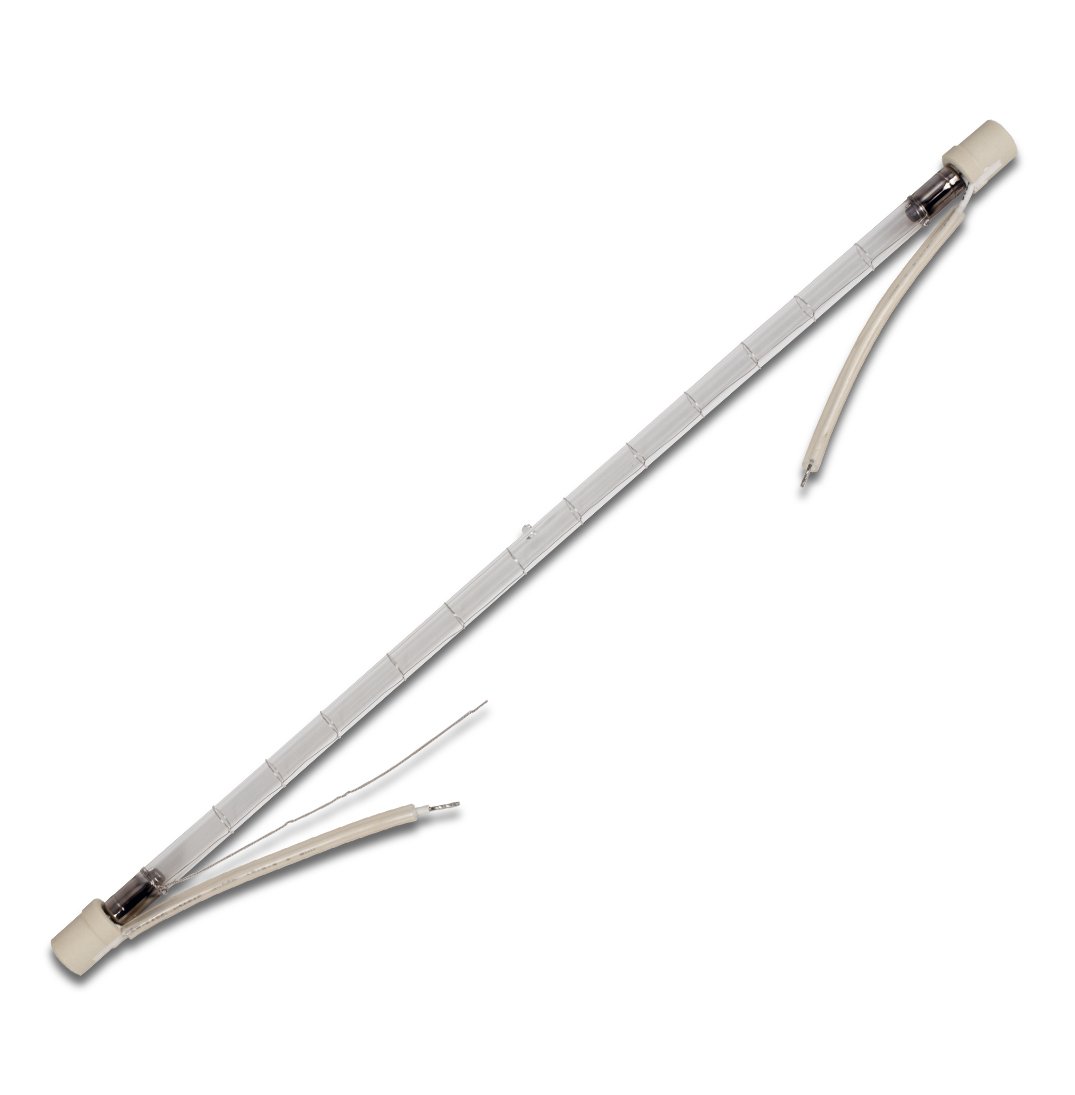

Xenon flashlamps emit a broad spectrum from ultraviolet to infrared similar to sunlight which makes it an ideal light source for sun simulation used in various applications such as solar cells or module testing, as well as weathering or material testing. Excelitas flashlamps are designed and manufactured to match the specific spectral and optical requirements for solar simulation. Well recognized for high flash stability and uniform output, our linear flashlamps are widely used for solar simulations and can be operated in pulsed or CW mode.

Contact Us Find a Distributor

Key Features:

  • Linear and ring shape; other shapes are also available
  • Spectral output from UV to IR
  • Suitable for water or air cooling
  • Long pulse operation
  • Customized designs and assemblies available
Product Type Shape Energy  or Power Anode Voltage / V Dimensions / mm Frequency/
Rep Rate		 Recommendations
      min nom max arc /mm Glass body length/mm  Overall length /mm Envelop diameter / mm Ring diameter/mm   Trigger Coil  Trigger Capacitor / µF Primary Trigger Voltage / V
 DG 8901-1 linear 750W 360 554 550 158 – 238 10 – 2 – 14Hz ZS 1052 0.22 250
 EG 9902-1 linear 1500W 480 350 360 312 – 392 10 – 2 – 14Hz ZS  1052 0.22 250
 FG 9902-1 linear  2500W 600 750 800 457 – 537 10 – 2 – 14Hz ZS  1052 0.22 200
 GG 9902-1 linear  3000W 600 750 800 615 – 695 10 – 2 – 14Hz ZS 1052 0.22 100



Product Type Shape Energy  or Power Anode Voltage / V Dimensions / mm Frequency/
Rep Rate		 Recommendations
      min nom max arc /mm Glass body length/mm  Overall length /mm Envelop diameter / mm Ring diameter/mm   Trigger Coil  Trigger Capacitor / µF Primary Trigger Voltage / V
 DG 8901-1 linear 750W 360 554 550 158 – 238 10 – 2 – 14Hz ZS 1052 0.22 250
 EG 9902-1 linear 1500W 480 350 360 312 – 392 10 – 2 – 14Hz ZS  1052 0.22 250
 FG 9902-1 linear  2500W 600 750 800 457 – 537 10 – 2 – 14Hz ZS  1052 0.22 200
 GG 9902-1 linear  3000W 600 750 800 615 – 695 10 – 2 – 14Hz ZS 1052 0.22 100
