Stroboscopic Flashlamps

Stroboscopic Flashlamps

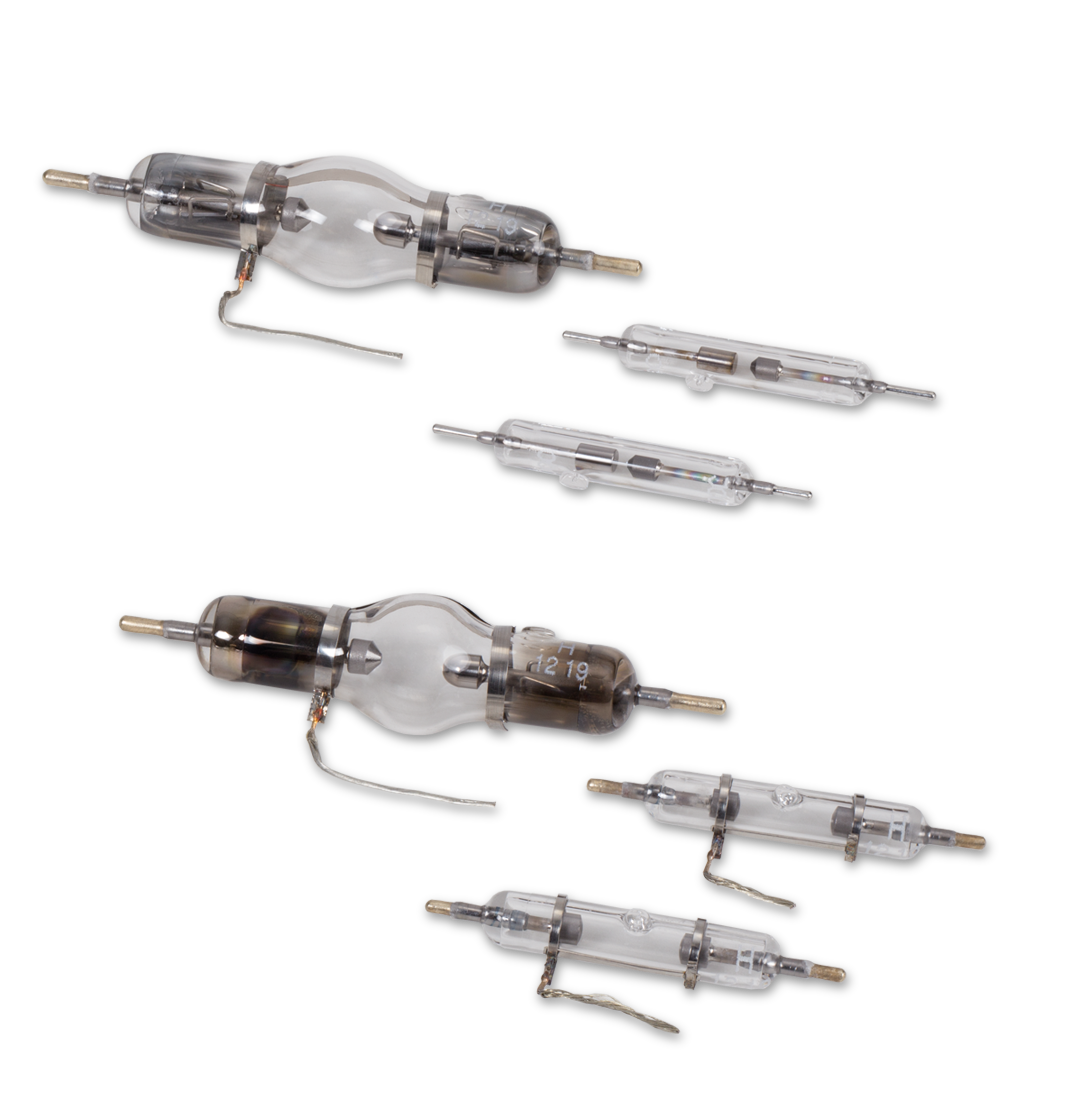

Excelitas offers flashlamps that are perfectly suited for high repetition rates in stroboscopic applications. Our standard stroboscopy lamps range from linear that cover everything from low-power 2 mm arc length up to more than 600 mm and 3000 W. For high power and UV applications, we offer sizes of various quartz envelope materials. Our expert application engineers will work with you to identify the most suitable solution as well as provide ongoing support in the development of customized flashlamps that meet special requirements.

Contact Us Find a Distributor

We also offer a wide variety of sockets, glass caps and connectors available for assemblies.

Typical applications:
Sport photography
Machine vision
Display effect lights
Medical
Architectural lighting

Refer to the tab below to view available flashlamps suitable for stroboscopic applications (you may need to scroll to the right in order to view all specs). Contact us for more information.

  Part Type Power / W Anode Voltage / V Dimensions / mm Flashes per sec Life Hours Envelope Material Recommendations
    min nom max e g l d a       Trigger Coil  Trigger Capacitor / µF Primary Trigger Voltage / V
 DGS 0610 10 280 320 360 10 30 44 6.00 – 5 –   100 500 Q 2* ZS 1052 0.047 250
 SG 305 25 400 550 600 40 69 103 8.00 – 5 –   300 250 Q 2* ZS 1052 0.22 200
 SG 304 100 400 600 660 100 130 160 8.00 – 5 –   100 250 Q 1* ZS 1052 0.22 250
 DG 8901–1 750 360 550 700 158 – 238 10.00 – 2 –     14 500 Q 2* ZS 1052 0.22 250
 EG 9902–1 1500 480 550 700 312 – 392 10.00 – 2 –     14 500 Q 2* ZS 1052 0.22 250
 FG 9902–1 2500 600 800 1000 457 – 537 10.00 – 2 –     14 500 Q 2* ZS 1052 0.22 180
 GG 9902–1 3000 600 800 1000 615 – 695 10.00 – 2 –     14 500 Q 2* ZS 1031 0.47 300

 * Borosilicate glass B1 (standard glass): Automatic processing ability. Many tube diameters available. Borosilicate glass B2: Withstands approx. 30% more power than B1. Requires manual processing. Quartz glass Q1: UV transparent.
Quartz glass Q2: Reduced generation of ozone.

  Part Type Power / W Anode Voltage / V Dimensions / mm Flashes per sec Life Hours Envelope Material Recommendations
    min nom max e g l d a       Trigger Coil  Trigger Capacitor / µF Primary Trigger Voltage / V
 DGS 0610 10 280 320 360 10 30 44 6.00 – 5 –   100 500 Q 2* ZS 1052 0.047 250
 SG 305 25 400 550 600 40 69 103 8.00 – 5 –   300 250 Q 2* ZS 1052 0.22 200
 SG 304 100 400 600 660 100 130 160 8.00 – 5 –   100 250 Q 1* ZS 1052 0.22 250
 DG 8901–1 750 360 550 700 158 – 238 10.00 – 2 –     14 500 Q 2* ZS 1052 0.22 250
 EG 9902–1 1500 480 550 700 312 – 392 10.00 – 2 –     14 500 Q 2* ZS 1052 0.22 250
 FG 9902–1 2500 600 800 1000 457 – 537 10.00 – 2 –     14 500 Q 2* ZS 1052 0.22 180
 GG 9902–1 3000 600 800 1000 615 – 695 10.00 – 2 –     14 500 Q 2* ZS 1031 0.47 300

 * Borosilicate glass B1 (standard glass): Automatic processing ability. Many tube diameters available. Borosilicate glass B2: Withstands approx. 30% more power than B1. Requires manual processing. Quartz glass Q1: UV transparent.
Quartz glass Q2: Reduced generation of ozone.
