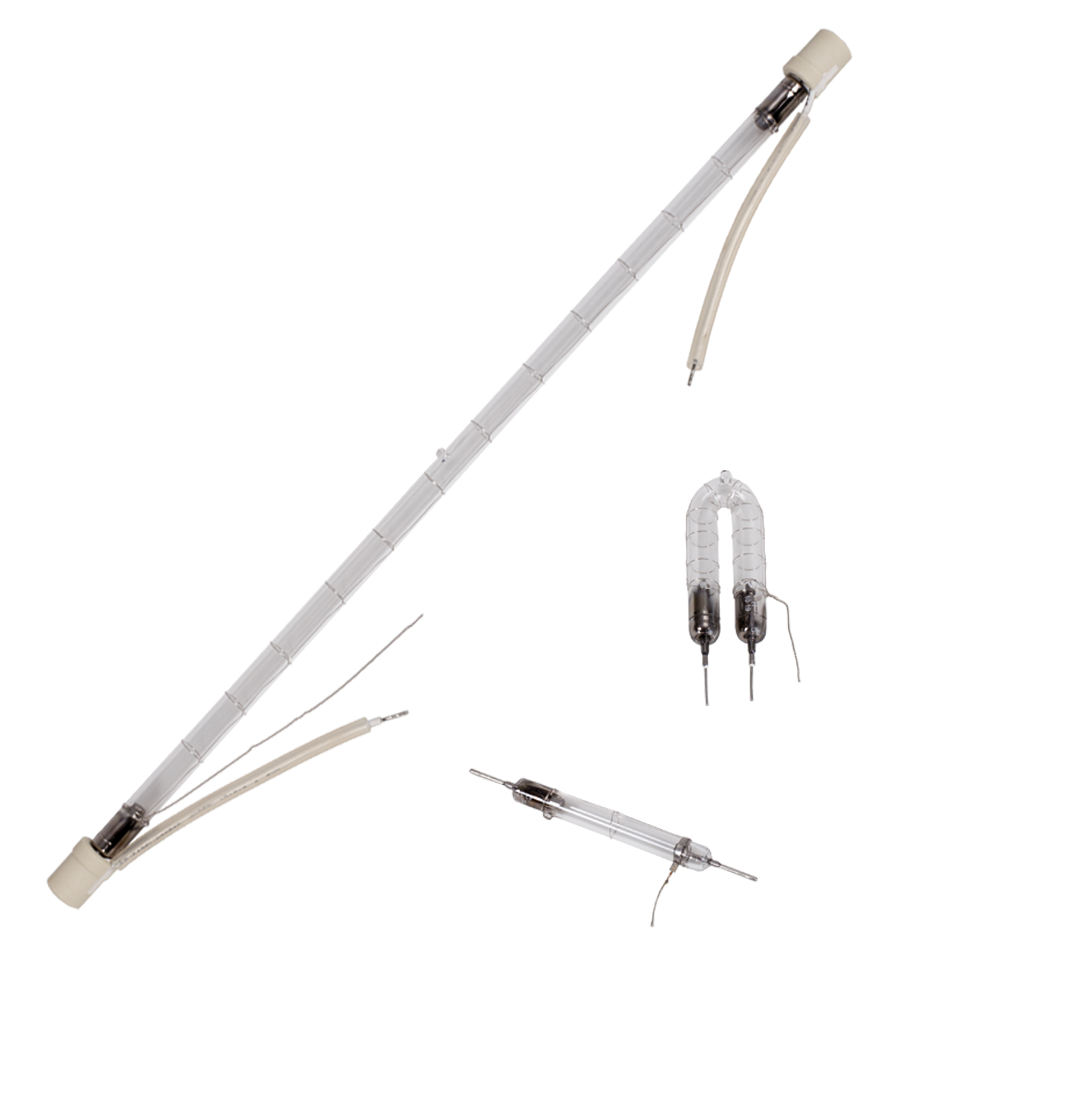

UVC Xenon Flashlamps

Excelitas Pulsed Xenon UV light sources offer a broadband UV spectrum useful in a variety of disinfection applications. Our Xenon Flashlamps can be custom designed and manufactured in any geometry with precision and economies of scale. Input energies range from <1 Joule to >10,000 J, with powers from a few Watts to multiple Kilowatts. These Pulsed Xenon’s broad UV emission wavelengths are tailored for output in the UV-C, eliminating any concern about the peak absorption of the microorganism.

Contact Us

Key Features:

  • Broadband continuum radiation optimized for output in the UV-C enables efficacy across a wide range of potential organisms or surfaces
  • Envelope materials customized to allow deeper UV transmission or to be ozone free
  • Water cooling capability allows for the highest power per arc length of any traditional light source
  • Linear, ring, and U-shaped lamps available, with radiating lengths from 1 cm to over one meter
  • Customized development tailors the lamp to the required end application

  • Efficiencies greater than 25%
  • Power ranges from a few Watts to over 10kW
  • Radiation lengths from 1cm to over 1m
  • Spectrum can maximize UV, or be tailored to be ozone free

Device DescriptionLamp ShapeQuartz Diameter/ mmArc / mmQuartz body -length/- diameter mmEnergy / WsUa min/VUa max/VTriggercoil
SG 305-2 (H)Linear840695400600ZS1052
GG 9902 (H)Linear103123555008002000ZS1031
SG 304-1 (H)Linear8100130100400660ZS1052

*Also available in higher grade quartz

** Availability of customized designs

SG 305-2-H Datasheet: Linear Xenon Flashlamp
GG 9902-H Datasheet: Linear Xenon Flashlamp
SG 304-1-H Datasheet: Linear Xenon Flashlamp
Mechanical Drawing: L8795-2
Mechanical Drawing: QXF390B-2
  • Efficiencies greater than 25%
  • Power ranges from a few Watts to over 10kW
  • Radiation lengths from 1cm to over 1m
  • Spectrum can maximize UV, or be tailored to be ozone free

Device DescriptionLamp ShapeQuartz Diameter/ mmArc / mmQuartz body -length/- diameter mmEnergy / WsUa min/VUa max/VTriggercoil
SG 305-2 (H)Linear840695400600ZS1052
GG 9902 (H)Linear103123555008002000ZS1031
SG 304-1 (H)Linear8100130100400660ZS1052

*Also available in higher grade quartz

** Availability of customized designs

SG 305-2-H Datasheet: Linear Xenon Flashlamp
GG 9902-H Datasheet: Linear Xenon Flashlamp
SG 304-1-H Datasheet: Linear Xenon Flashlamp
Mechanical Drawing: L8795-2
Mechanical Drawing: QXF390B-2
