X-Cite Vitae 6 Flexible Multi-Wavelength Illumination System
PART/

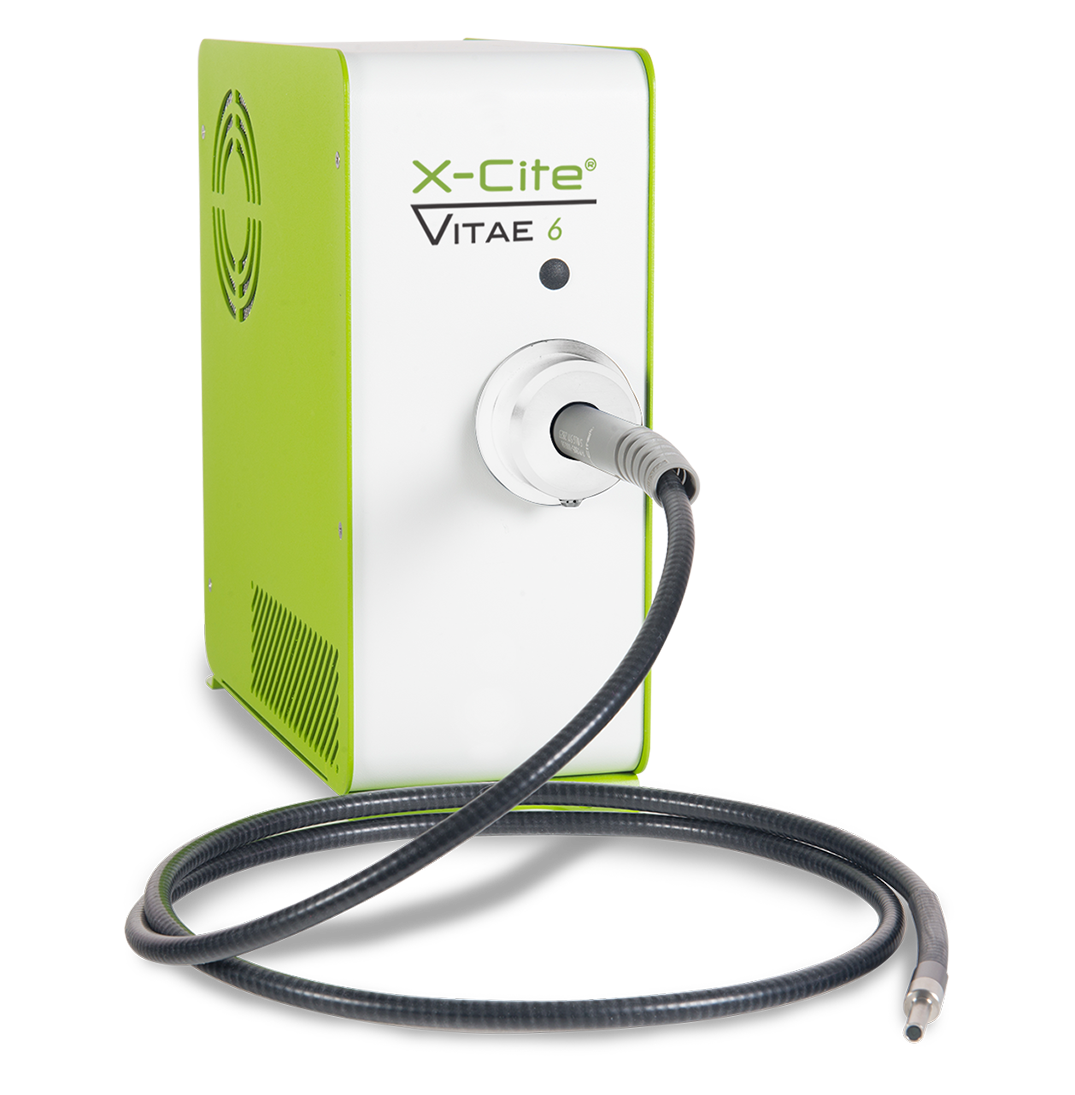

X-Cite Vitae 6 Flexible Multi-Wavelength

Based on a flexible LED module design with extensive wavelength multiplexing capabilities, the X-Cite VitaeTM 6 is multi-wavelength platform with high output power and efficient thermal management is available for maximum spectral breadth and stability. Systems can be customized with up to six LEDs and excitation filters to cover a wide range of imaging, diagnostic and analytical applications. With a range of wavelengths from 360-740 nm, the X-Cite Vitae 6 offers high speed color switching, analog or digital control, and a footprint customized to your solution.

Features and Benefits:

Independent Wavelengths: Efficiency - Operate all wavelengths individually or simultaneously, with no “channel sharing” or delays to change internal filters.

Excitation Filter Holders: Precision - Fine-tune excitation spectra to your requirements.

Light Guide Delivery: Flexibility - Direct light into instrument with a light guide style that best suits the application. Main unit can be remotely located if space is constrained.

Multiple Control Options: Simplicity - Operate with USB, TTL, analog or a combination.

Small Footprint: Space savings - Use less instrument or benchtop real estate.

Optimized Thermal Management: Reliability - Maximize LED output, lifetime, and stability.

External Power Supply (Optional): Convenience - Power with 24 VDC input from instrument or standard wall outlet.

TECHNICAL SPECIFICATIONS - Customizable upon request

Wavelengths

UV to IR options available upon request

Excitation Filters

Accommodates standard 25 mm diameter filters with 3.5 mm frames

External Power Supply

Universal input 100-240 VAC, 50/60 Hz

ON/OFF Response Times

50μs TTL / 1 ms USB

Optical Stability

Wavelength dependent,  ≤5% at 22°C ambient

Control Options

ON/OFF – TTL Compatible, typical 800  μA

Intensity – Analog, 1-5V, maximum 500 μA

RS-232 commands (SDK available), USB

I/O Connections

I/O Connections DB25 to 12x BNC (6 TTL, 6 Analog), USB (B-type), BNC option available

Dimensions

Dimensions 95 mm x 230 mm x 212 mm (W x H x D)

Weight

4.5 kg

TECHNICAL SPECIFICATIONS - Customizable upon request

Wavelengths

UV to IR options available upon request

Excitation Filters

Accommodates standard 25 mm diameter filters with 3.5 mm frames

External Power Supply

Universal input 100-240 VAC, 50/60 Hz

ON/OFF Response Times

50μs TTL / 1 ms USB

Optical Stability

Wavelength dependent,  ≤5% at 22°C ambient

Control Options

ON/OFF – TTL Compatible, typical 800  μA

Intensity – Analog, 1-5V, maximum 500 μA

RS-232 commands (SDK available), USB

I/O Connections

I/O Connections DB25 to 12x BNC (6 TTL, 6 Analog), USB (B-type), BNC option available

Dimensions

Dimensions 95 mm x 230 mm x 212 mm (W x H x D)

Weight

4.5 kg
