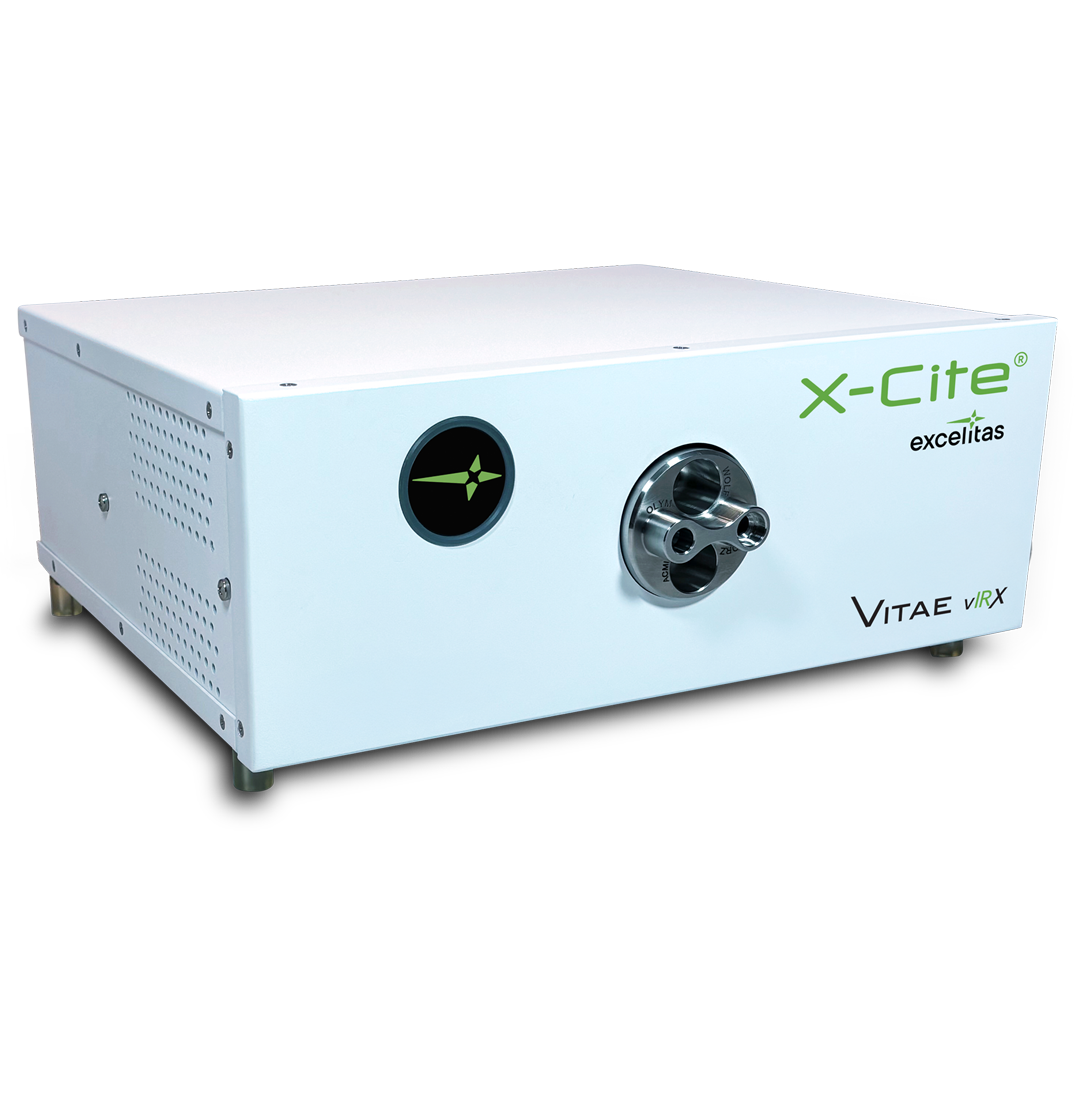

X-Cite Vitae vIRX

X-Cite Vitae vIRX

The X-Cite® Vitae vIRX is a fully customizable, multi-wavelength illumination platform designed for high precision medical illumination and diagnostic applications such as endoscopy and surgical visualization, as well as high-speed analytical applications including multi-well plate and slide scanning and polymerase chain reaction (PCR). Featuring high optical output with support for up to 7 wavelengths including NIR, the Vitae vIRX easily replaces 180W or 300W Xenon sources while offering state of the art capabilities.

Contact Us

The X-Cite Vitae vIRX provides enhanced control, accurate tuning, and exceptional optical stability achieved via integrated feedback sensors. Match any CCT with individual RGB control, and maintain color balance over lifetime while ensuring color uniformity across large field-of-views.



TECHNICAL SPECIFICATIONS - Customizable upon request

Output

Four way universal turret accepting Storz, Wolf, ACMI and Olympus ferrules. Customized optical couplings also available.

Wavelengths

Fully customizable upon request. Support for 7 individually controllable channels. Default configuration as follows:

  • UV – 405 nm

  • Blue – 455 nm

  • Cyan – 500 nm

  • Green (broadband) – 530 – 590 nm

  • Red – 630 nm

  • R1 – 785 nm

IR2 – 830 nm

Minimum Pulse Width

10 µs

Control Options

Manual on/off and intensity control – 1% increments for each color; USB, TTL

I/O Connectivity

TTL – input for on/off control: 2.4V – 5V TTL compatibility Ethernet, USB, SD card slot

Color Temperature (CCT)

Fully tunable and accurate CCT for RGB white configuration

Color Rendering Index (CRI)

Spectral shaping for high CRI

Closed Loop Feedback

Integrated sensors for output monitoring and stability

Input Voltage

24VDC; 28A

System Dimensions

14.25” x 6” x 11.75” (W x H x D)



  • Precision tuning: Match any CCT and achieve high CRI
  • High optical power: Replace traditional xenon lamps
  • UV and NIR options: Excite contrast fluorophores used in surgery
  • Optical stability: Maintain consistent output over time
  • Fully customizable: Achieve customer and application requirements

TECHNICAL SPECIFICATIONS - Customizable upon request

Output

Four way universal turret accepting Storz, Wolf, ACMI and Olympus ferrules. Customized optical couplings also available.

Wavelengths

Fully customizable upon request. Support for 7 individually controllable channels. Default configuration as follows:

  • UV – 405 nm

  • Blue – 455 nm

  • Cyan – 500 nm

  • Green (broadband) – 530 – 590 nm

  • Red – 630 nm

  • R1 – 785 nm

IR2 – 830 nm

Minimum Pulse Width

10 µs

Control Options

Manual on/off and intensity control – 1% increments for each color; USB, TTL

I/O Connectivity

TTL – input for on/off control: 2.4V – 5V TTL compatibility Ethernet, USB, SD card slot

Color Temperature (CCT)

Fully tunable and accurate CCT for RGB white configuration

Color Rendering Index (CRI)

Spectral shaping for high CRI

Closed Loop Feedback

Integrated sensors for output monitoring and stability

Input Voltage

24VDC; 28A

System Dimensions

14.25” x 6” x 11.75” (W x H x D)



  • Precision tuning: Match any CCT and achieve high CRI
  • High optical power: Replace traditional xenon lamps
  • UV and NIR options: Excite contrast fluorophores used in surgery
  • Optical stability: Maintain consistent output over time
  • Fully customizable: Achieve customer and application requirements
