F300 Series Microwave UV Curing Systems

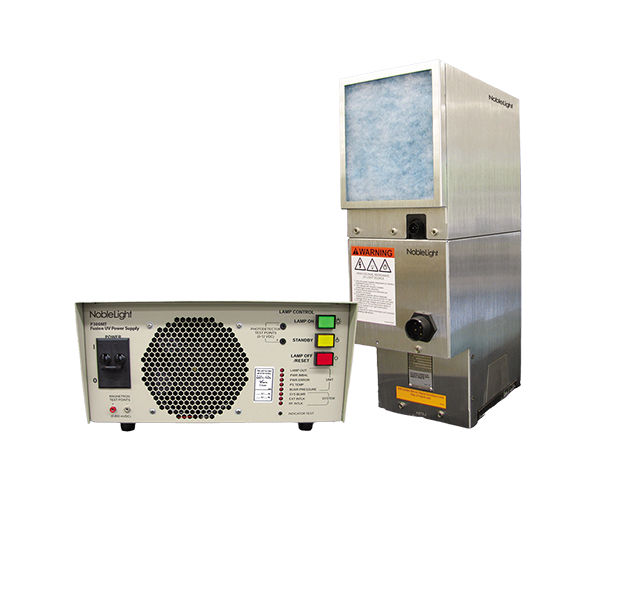

The Fusion UV F300 Series offers compact microwave-powered UV curing systems with a 6-inch wide irradiator (lamp module) and power supply. It These UV curing systems are ideal for lab research, as a starter system for new processes or simpler production processes.
The F300 Series are production-proven UV curing systems with a 300 Watt/inch microwave-powered electrodeless lamp, packaged in a compact 6-inch modular unit. An optional integral blower makes installation and setup especially easy and is perfect for labs or other facilities where blower and ducting installation is difficult. Indicator lights make operating this series of UV curing systems intuitive and easy. The F300 modular systems can be combined to cover wider curing widths and are compatible with Fusion UV conveyors.
Lamps contain mercury. Manage in accordance with local, state or federal disposal laws.
| Lamp bulb length | 15 cm |
| Power class | 120 W/cm (300 W/in) |
| Cooling air | optional integral blower available |
| Compatible with LC6B Benchtop and DRS 10/12 floor | standing conveyors |
| Device footprint (W x L) | 208 x 168 mm |
| Power setting | optional fast restarting available |
- Simple, easy-to-use controls
- Highly economical initial cost
- Rugged and reliable
- Long electrodeless bulb lifetime, rapid start and restart, less heat to substrate, reduced maintenance, full cure width maintained throughout bulb life.
- Popular bulb spectra available
- Ability to process heat sensitive substrates – lower heat compared to mercury arc lamps
- Compatible with LC6B Benchtop and DRS 10/12 floor-standing conveyors
- Adhesive bonding
- Automotive components
- Metal decorating and coating
- Glass decorating
- Medical device marking and coating
- Electronic components
- Plastic decorating
| Lamp bulb length | 15 cm |
| Power class | 120 W/cm (300 W/in) |
| Cooling air | optional integral blower available |
| Compatible with LC6B Benchtop and DRS 10/12 floor | standing conveyors |
| Device footprint (W x L) | 208 x 168 mm |
| Power setting | optional fast restarting available |
- Simple, easy-to-use controls
- Highly economical initial cost
- Rugged and reliable
- Long electrodeless bulb lifetime, rapid start and restart, less heat to substrate, reduced maintenance, full cure width maintained throughout bulb life.
- Popular bulb spectra available
- Ability to process heat sensitive substrates – lower heat compared to mercury arc lamps
- Compatible with LC6B Benchtop and DRS 10/12 floor-standing conveyors
- Adhesive bonding
- Automotive components
- Metal decorating and coating
- Glass decorating
- Medical device marking and coating
- Electronic components
- Plastic decorating
Additional Resources
Excelitas Technologies is a leading developer of high-performance microwave-powered UV curing systems designed for industrial reliability and precision. Backed by over 140 years of innovation in photonic technology, Excelitas is known worldwide for its robust curing systems that integrate easily into automated workflows and support high-throughput manufacturing.
Customers also benefit from Excelitas’ ability to tailor solutions to even the most complex requirements. Our responsive technical support and easily accessible product resources ensure a smooth experience from integration to ongoing operation.
The F300 Series uses microwave energy to power electrodeless mercury vapor lamps, producing intense ultraviolet (UV) light for rapid and uniform curing. Unlike traditional arc lamps, microwave-powered UV lamps have no electrodes to degrade, resulting in longer operational life and stable performance.
Microwave UV curing systems like the F300 Series are primarily used in industrial settings for curing adhesives, coatings, and inks, particularly in applications requiring consistent UV intensity and high process speed. The F300 Series is compact enough for lab research, pilot lines, and small-scale production. It is compatible with the benchtop LC6 conveyor and the floor standing DRS 10/12 conveyor.
F300 Series UV curing systems are ideal for any manufacturing environment that requires reliable, repeatable curing performance with minimal maintenance. Their stable UV output, long lamp life, and fast warm-up make them a strong choice for:
- Bonding and sealing in electronics assembly
- Adhesive curing for medical devices
- UV coating on automotive interior and exterior components
- Ink and varnish curing in digital and flexographic printing
- Optical lens coating processes
Yes. Excelitas can customize the F300 Series to align with your needs. Options include lamp housing modifications, integral blower, tailored reflectors for targeted UV energy distribution or reduced heat, and a range of UV bulb wavelengths to match specific material or adhesive chemistries. Excelitas also supports the integration of the F300 Series with automation equipment and PLC systems.
The F300 Series offers several operational and engineering advantages:
- Stable UV Output: Maintains consistent intensity throughout lamp life.
- Longer Lamp Lifespan: Electrodeless design avoids electrode erosion, reducing maintenance.
- Fast Warm-Up: Instant-on capability improves throughput and energy efficiency.
- Uniform Curing: Optimized reflectors ensure even UV distribution across substrates.
- Low Maintenance: Designed for continuous operation in demanding environments.
These systems help manufacturers improve product quality, reduce downtime, and streamline production workflows.
