OmniCure LX500 UV LED MAX Heads
PART/ LED Max Heads

OmniCure LX500 LED UV MAX Heads

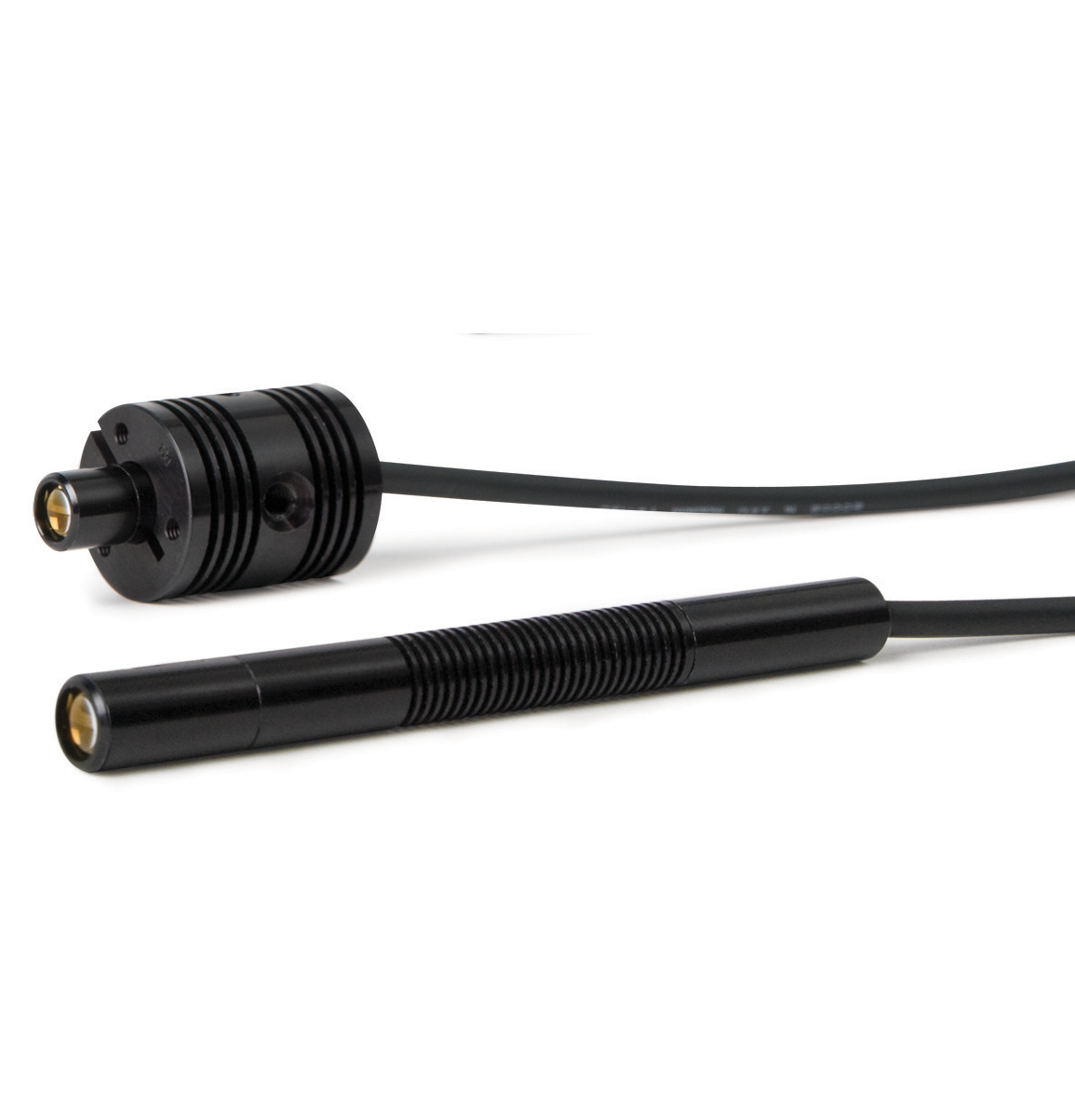

The OmniCure® UV LED MAX Heads are specially designed to provide faster UV curing rates, higher power efficiency and superior control with monitoring capabilities. Our UV LED MAX Heads provide superior thermal management by means of a copper core and optimized aluminum heat sink used to extract and dissipate internal heat generated by the LED, allowing enhanced air-cooling efficiency in even the most challenging manufacturing environment. The OmniCure LX500 MAX heads feature a connector designed for easier installation to the controller which locks in place for a secure connection.

Superior LED Irradiance & Flexibility for UV Spot Curing

Heads are offered in either a short or long style with multiple wavelengths to choose from (i.e. 365 nm, 385 nm, 400 nm) or a selection of replaceable focusing lenses to meet the spot size and irradiance level required for a specific application.

Note: Our previous generation LX400 UV LED MAX heads can also be used with the LX500 controller with the addition of an adapter to offer process integration flexibility for existing customers.

GENERAL SPECIFICATIONS

UV LED Light Wavelength

365 nm | 385 nm | 400 nm

Typical Peak Irradiance

14 | 16 | 9 W/cm² respectively with 3 mm lens*

Typical LED Lifetime

20,000 hours**

LED Temperature Monitoring

LED temperature monitoring and over temperature protection by patented Intelli-Lamp®  technology

LED Lifetime Monitoring

LED number of hours of operation monitored by patented
Intelli-Lamp technology

Cable Included with the Head

Length: 1 meter (Extension cables also available: 1 m, 3 m and
10 m)

Head Dimensions

Head outside diameter: 12 mm

Long head length: 125 mm (available in 365/385 nm only) • Short head length: 55 mm

Light Source

LED Class, Risk Group 3

Certifications & Safety Standards

RoHS compliant and meets CE requirements

Warranty

Guarantee of 10,000 hours or 3 years, whichever comes first.



































* Typical Maximum Irradiance Variation: +/- 20% (as specified by the LED device manufacturer)

** With 100% initial output at 25°C temperature and secured to standard installation clamp. This data is for reference only.

  • High irradiance at different wavelengths: Reduces manufacturing costs with faster curing times and higher power efficiency
    • 14 W/cm² (typical) at 365 nm
    • 16 W/cm² (typical) at 385 nm
    • 9 W/cm² (typical) at 400 nm
  • Ultra-cool UV LED heads: Long UV LED head lifetime, improved power efficiency and low cost of ownership
  • Patented Intelli-Lamp® technology: Maximizes UV LED head power efficiency, long-term reliability and lifetime
  • Locking HDMI Connector: Designed for easy installation

GENERAL SPECIFICATIONS

UV LED Light Wavelength

365 nm | 385 nm | 400 nm

Typical Peak Irradiance

14 | 16 | 9 W/cm² respectively with 3 mm lens*

Typical LED Lifetime

20,000 hours**

LED Temperature Monitoring

LED temperature monitoring and over temperature protection by patented Intelli-Lamp®  technology

LED Lifetime Monitoring

LED number of hours of operation monitored by patented
Intelli-Lamp technology

Cable Included with the Head

Length: 1 meter (Extension cables also available: 1 m, 3 m and
10 m)

Head Dimensions

Head outside diameter: 12 mm

Long head length: 125 mm (available in 365/385 nm only) • Short head length: 55 mm

Light Source

LED Class, Risk Group 3

Certifications & Safety Standards

RoHS compliant and meets CE requirements

Warranty

Guarantee of 10,000 hours or 3 years, whichever comes first.



































* Typical Maximum Irradiance Variation: +/- 20% (as specified by the LED device manufacturer)

** With 100% initial output at 25°C temperature and secured to standard installation clamp. This data is for reference only.

  • High irradiance at different wavelengths: Reduces manufacturing costs with faster curing times and higher power efficiency
    • 14 W/cm² (typical) at 365 nm
    • 16 W/cm² (typical) at 385 nm
    • 9 W/cm² (typical) at 400 nm
  • Ultra-cool UV LED heads: Long UV LED head lifetime, improved power efficiency and low cost of ownership
  • Patented Intelli-Lamp® technology: Maximizes UV LED head power efficiency, long-term reliability and lifetime
  • Locking HDMI Connector: Designed for easy installation
