pco.aquamatic

pco.aquamatic III

Enhance your imaging system with our liquid cooler pco.aquamatic III to lower sensor temperatures and minimize dark current noise for improved signal-to-noise ratio and image quality during extended exposures. Liquid cooling offers an elegant solution for applications sensitive to vibrations (originating from the fan for forced air cooling) by locally separating the pump system from the actual imaging equipment. The pco.aquamatic III ensures optimal cooling conditions for your demanding applications.

Contact Us Find a Distributor Buy Now at DigiKey

The pco.aquamatic III liquid cooling system is compatible with our pco.edge and pco.flim camera series. Components such as hoses and cooling liquid come included with the pco.aquamatic III system but are also available separately as spare parts if required.


Dimensions (height x width x length) 186.6 mm x 203 mm x 214 mm
Weight 4.2 kg (empty)
Material Steel
Color Black
Max. delivery height 2.2 m
Max. flow rate 32 l/h
Voltage 12 VDC
Max. power consumption 20 W
Power connector lumberg (1614_20)
Water inlet and outlet x G-1/8” thread
Water hose connectors NS212 coupling with non-spill valve

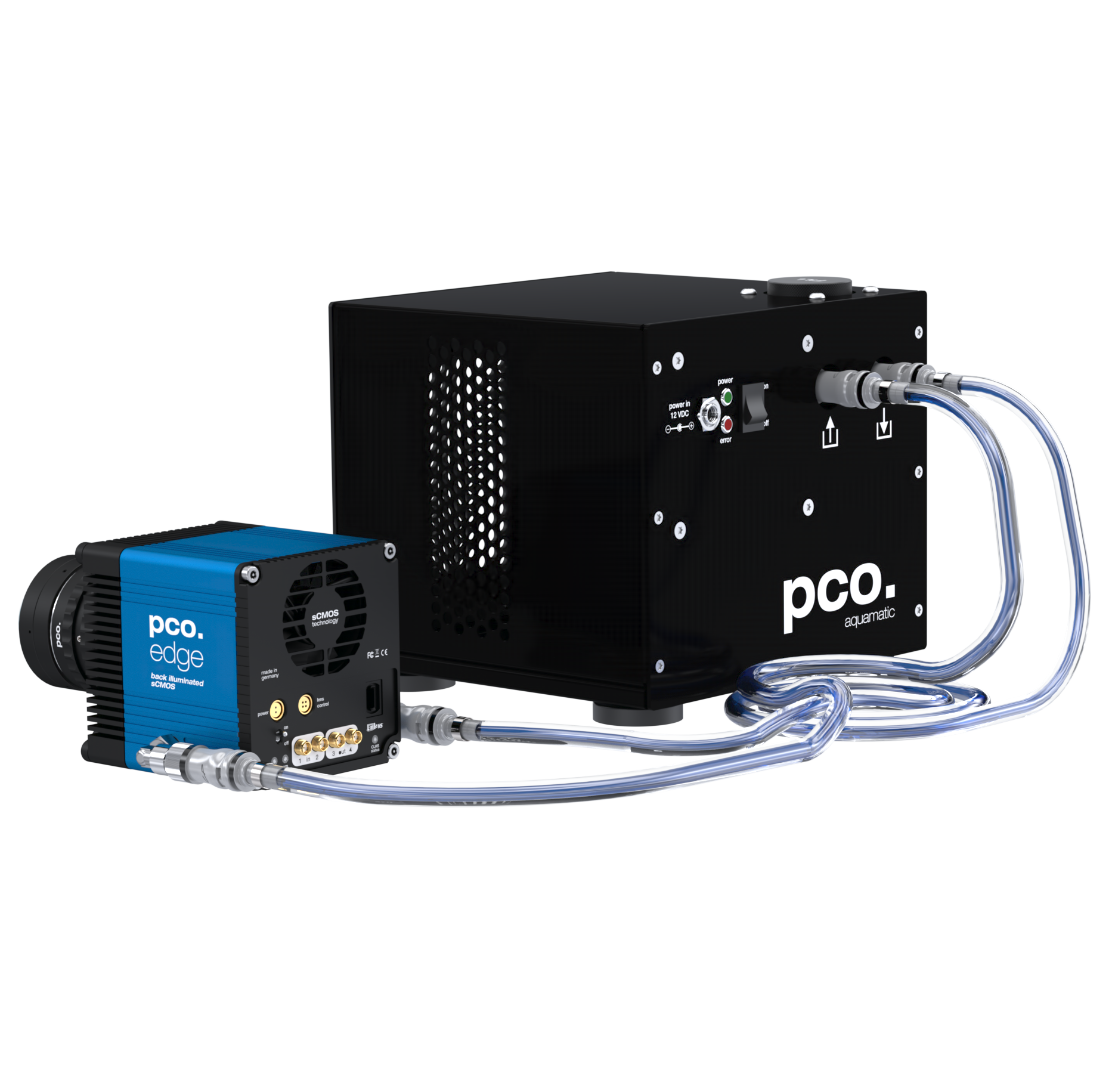

pco.aquamatic III equipped with camera - Front View

Dimensions (height x width x length) 186.6 mm x 203 mm x 214 mm
Weight 4.2 kg (empty)
Material Steel
Color Black
Max. delivery height 2.2 m
Max. flow rate 32 l/h
Voltage 12 VDC
Max. power consumption 20 W
Power connector lumberg (1614_20)
Water inlet and outlet x G-1/8” thread
Water hose connectors NS212 coupling with non-spill valve
