PART/ PE1000D-13F

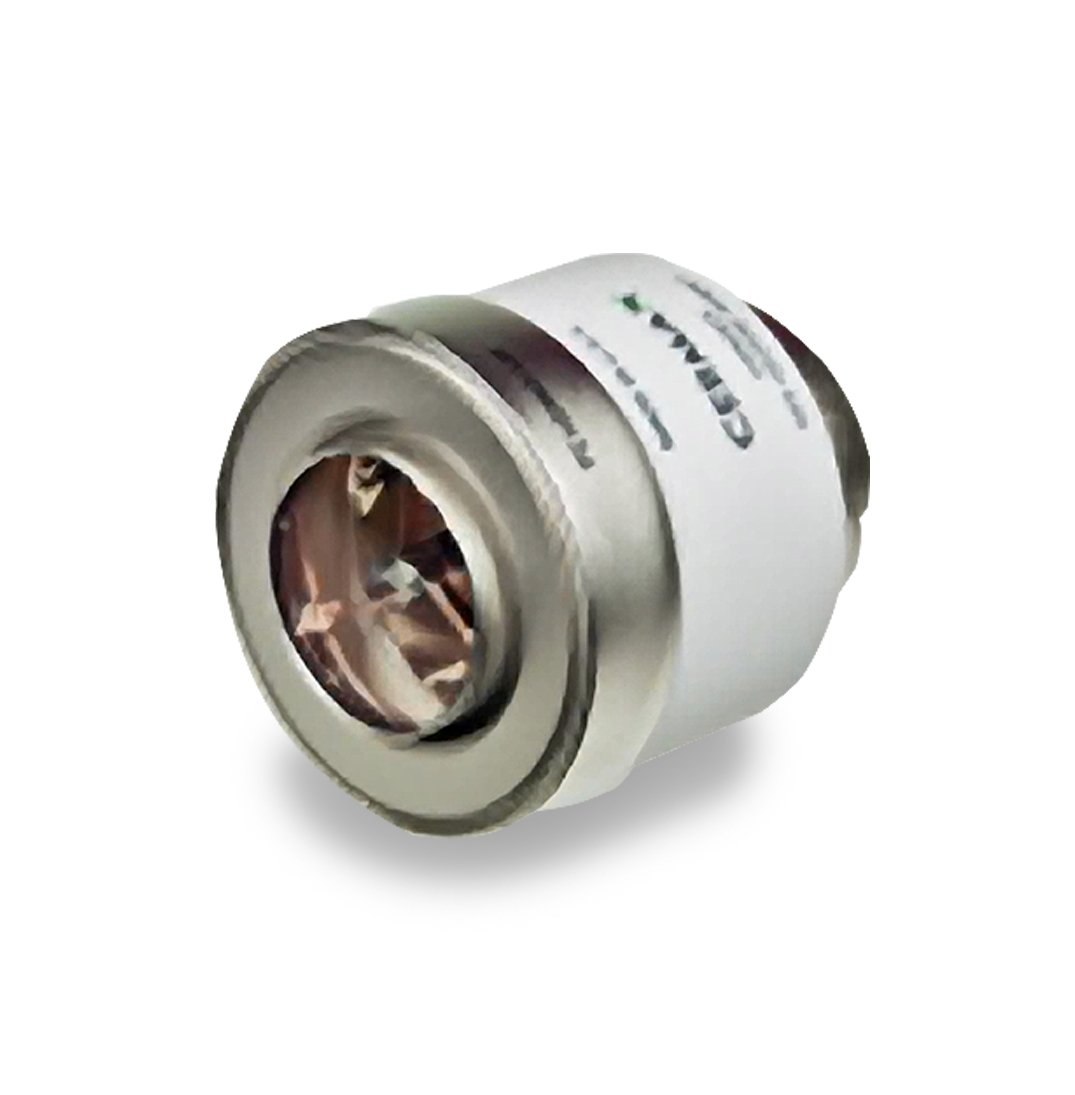

PE1000D-13F Xenon Ceramic Body Elliptical Lamp, 1000W
The 1000 Watt Cermax® Xenon lamp is a high intensity, high power lamp that maintains the broad spectrum, compactness and high robustness associated with Cermax products. Built with an elliptical reflector to provide a short focal distance, the lamp produces high intensity focused light with applications ranging from wafer inspection and machine vision to solar simulation and spotlights or beacons.
The PE1000D-13F features high-intensity illumination - 23,500 Lumens, with a power range of 800-1050 Watts. It has a broad spectral range with 5900 Kelvin color temperature, and a lamp lifetime of 1,000 hours.
| Reflector Type | Elliptical, f/1.3 |
| Body Type | Ceramic |
| Total Visible Output | 23500 Lumens |
| Power - Nominal | 1000 Watts |
| Power - Range | 800-1050 Watts |
| Current - Nominal | 50 Amps (DC) |
| Current - Range | 45-56 Amps (DC) |
| Ignition Voltage | 28 kilovolts (recommended minimum, system dependent) |
| Operating Voltage - Nominal | 20 Volts (DC) |
| Operating Voltage - Range | 15-24 Volts (DC) |
| Lifetime | 1000 hours typical |
| Temperature | 150° C (maximum) |
| Radiant Output | 245 Watts |
| UV Output (<390 nm) | 13 Watts |
| IR Output (>770 nm) | 135 Watts |
