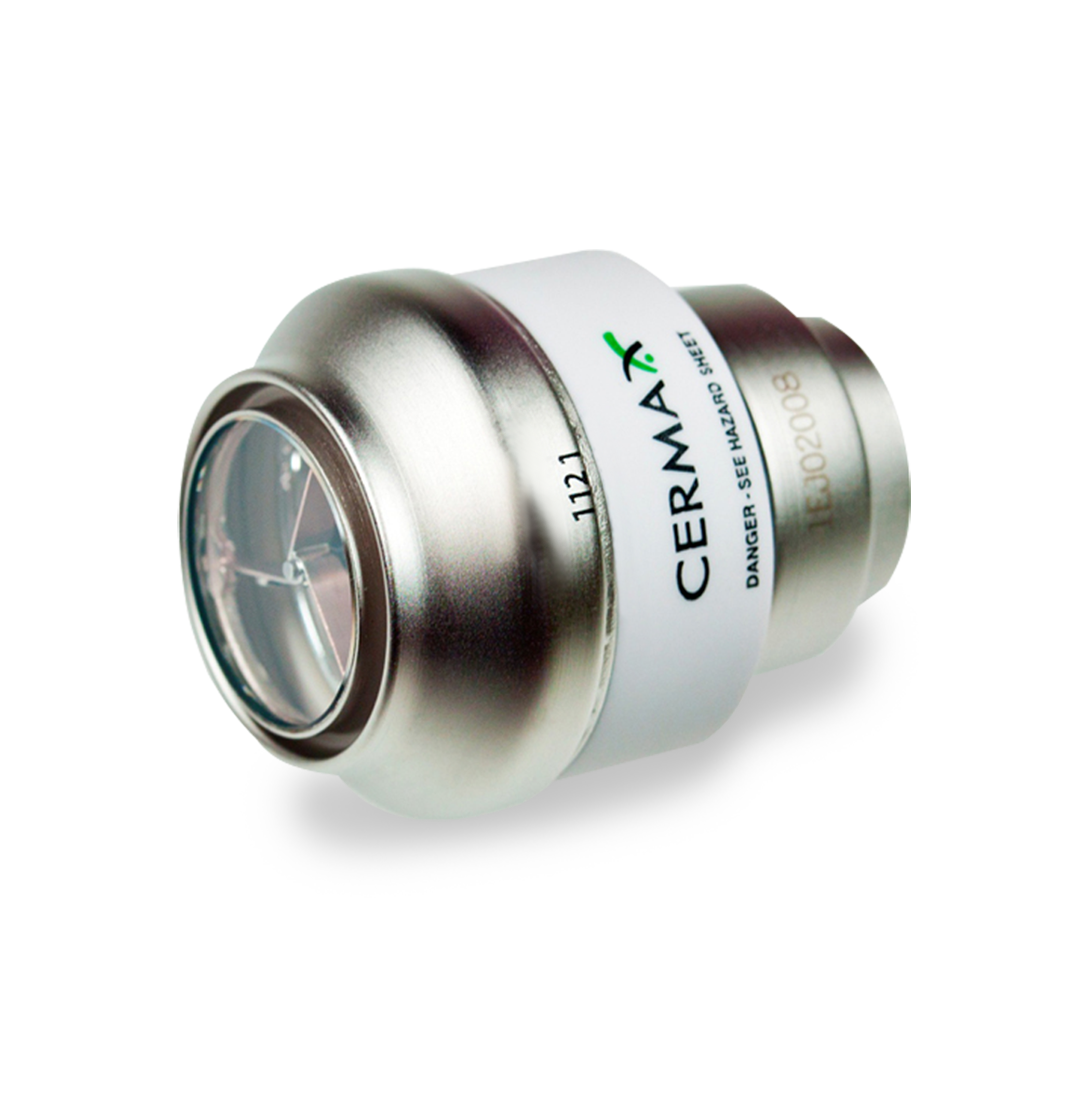

Cermax 500 Watt Elliptical Lamp
PART/ PE500C-13F

PE500C-13F Xenon Ceramic Body Elliptical Lamp, 500W

The boost in output from this 500 Watt Cermax® Xenon lamp makes this ideal for industrial applications with higher intensity requirements. The broad spectral output of the lamp is useful where accurate color rendition is needed or when specific spectral ranges are desired. Its robust design is perfect in less-than-ideal situations where quartz lamps typically fail.

The PE500C-13F features high-intensity illumination - 10,500 Lumens, with a power range of 350-525 Watts. It has a broad spectral range with 5,900 Kelvin color temperature, and a lamp lifetime of 1,000 hours.

Reflector Type: Elliptical, f/1.3



Body Type: Ceramic



Total Visible Output: 10,500 Lumens



Power - Nominal: 500 Watts



Power - Range: 350-525 Watts



Current - Nominal: 32 Amps (DC)



Current - Range: 25-35 Amps (DC



Ignition Voltage: 23 kilovolts (recommended minimum, system dependent)



Operating Voltage - Nominal: 15.5 Volts (DC)



Operating Voltage - Range: 14-16.5 Volts (DC)



Lifetime: 1000 hours typical



Temperature: 150° C (maximum)



Radiant Output: 112 Watts



UV Output (<390 nm): 5 Watts



IR Output (>770 nm): 65 Watts



Reflector Type: Elliptical, f/1.3



Body Type: Ceramic



Total Visible Output: 10,500 Lumens



Power - Nominal: 500 Watts



Power - Range: 350-525 Watts



Current - Nominal: 32 Amps (DC)



Current - Range: 25-35 Amps (DC



Ignition Voltage: 23 kilovolts (recommended minimum, system dependent)



Operating Voltage - Nominal: 15.5 Volts (DC)



Operating Voltage - Range: 14-16.5 Volts (DC)



Lifetime: 1000 hours typical



Temperature: 150° C (maximum)



Radiant Output: 112 Watts



UV Output (<390 nm): 5 Watts



IR Output (>770 nm): 65 Watts
