Phoseon FireLine FL400 UV LED Area Curing Systems

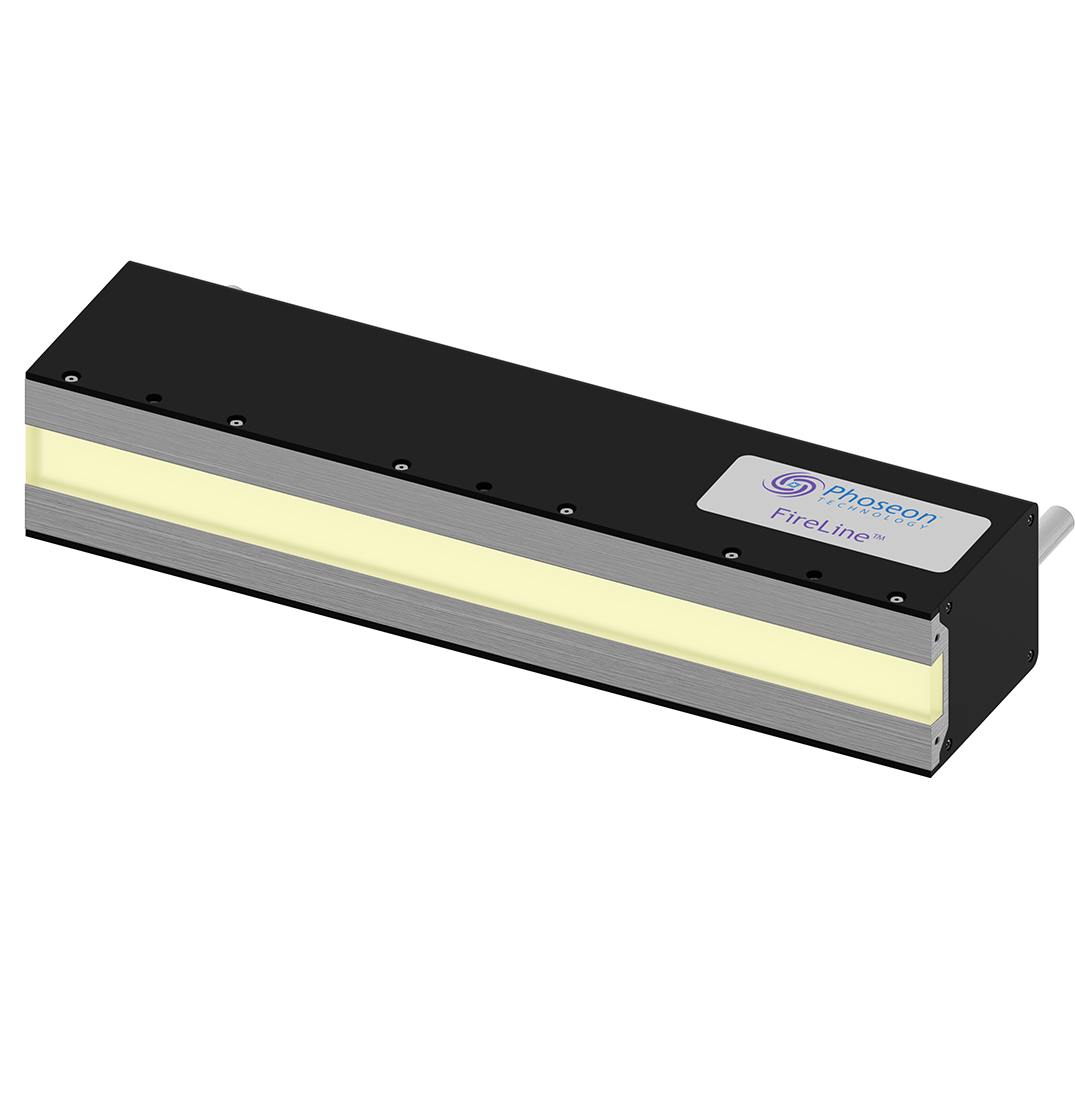

The FireLine™ FL400 UV LED Area Curing System is designed for the most challenging printing, coating, and adhesive curing application environments and now features enhanced performance. This UV LED solution is scalable, allowing for custom length options, and offers exceptional optical uniformity, ensuring consistent and reliable curing for demanding industrial applications. The powerful FireLine FL400 delivers a scalable, IP66-compliant solution designed for tasks that require high UV LED output.

The FireLine FL400 UV LED curing system offers versatile connection options with straight or barbed water fittings. It also features an enhanced window seal that protects against contaminants. The system is available in lengths ranging from 125mm to 350mm, making it suitable for large curing areas. These products are available with Modbus TCP protocols for high-speed data exchange and remote access.

Wavelength	385, 395, 405 nm
Peak Irradiance	24 W/cm²					20 W/cm²
Emitting Window (mm)	125x20	150x20	225x20	250x20	300x20	125x20	150x20	225x20	250x20	300x20
48V Power In (Max)	1604W	1925W	2888W	3209W	3850W	1514W	1817W	2726W	3028W	3634W
48V Power In (Max)	33A	40A	60A	67A	80A	32A	38A	57A	63A	76A
Chiller/Cooler Capacity	1315W	1579W	2368W	2631W	3157W	1242W	1490W	2235W	2483W	2980W
Chiller/Cooler Flow Rate	6LPM	8LPM	8LPM	10LPM	10LPM	6LPM	6LPM	6LPM	8LPM	8LPM
Pressure Drop (Typical)	0.16 Bar	0.31 Bar	0.38 Bar	0.61 Bar	0.62 Bar	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar
Pressure Drop (Typical)	2.4 psi	4.6 psi	5.5 psi	8.8 psi	9.1 psi	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi
DC Power Connector	3W3	3W3	5W5	5W5	5W5	3W3	3W3	5W5	5W5	5W5

Wavelength	385, 395, 405 nm
Peak Irradiance	16 W/cm²					12 W/cm²
Emitting Window (mm)	125x20	150x20	225x20	250x20	300x20	125x20	150x20	225x20	250x20	300x20
48V Power In (Max)	1211W	1454W	2180W	2423W	2907W	909W	1090W	1635W	1817W	2180W
48V Power In (Max)	25A	30A	45A	50A	61A	19A	23A	34A	38A	45A
Chiller/Cooler Capacity	993W	1192W	1788W	1987W	2384W	745W	894W	1341W	1490W	1788W
Chiller/Cooler Flow Rate	6LPM	6LPM	6LPM	8LPM	8LPM	6LPM	6LPM	6LPM	8LPM	8LPM
Pressure Drop (Typical)	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar
Pressure Drop (Typical)	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi
DC Power Connector	3W3	3W3	5W5	5W5	5W5	3W3	3W3	5W5	5W5	5W5

Wavelength	365 nm
Peak Irradiance	12 W/cm²
Emitting Window (mm)	125x20	150x20	225x20	250x20	300x20
48V Power In (Max)	909W	1090W	1635W	1817W	2180W
48V Power In (Max)	19A	23A	34A	38A	45A
Chiller/Cooler Capacity	745W	894W	1341W	1490W	1788W
Chiller/Cooler Flow Rate	6LPM	6LPM	6LPM	8LPM	8LPM
Pressure Drop (Typical)	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar
Pressure Drop (Typical)	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi
DC Power Connector	3W3	3W3	5W5	5W5	5W5

Peak Irradiance: 8 to 24 W/cm² at 385, 395, 405 nm

Phoseon FireLine FL400 Datasheet

Phoseon FireLine FL400 User Manual

Modbus TCP Communication Protocols Technical Note

Printing
Coatings
Adhesives

Wavelength	385, 395, 405 nm
Peak Irradiance	24 W/cm²					20 W/cm²
Emitting Window (mm)	125x20	150x20	225x20	250x20	300x20	125x20	150x20	225x20	250x20	300x20
48V Power In (Max)	1604W	1925W	2888W	3209W	3850W	1514W	1817W	2726W	3028W	3634W
48V Power In (Max)	33A	40A	60A	67A	80A	32A	38A	57A	63A	76A
Chiller/Cooler Capacity	1315W	1579W	2368W	2631W	3157W	1242W	1490W	2235W	2483W	2980W
Chiller/Cooler Flow Rate	6LPM	8LPM	8LPM	10LPM	10LPM	6LPM	6LPM	6LPM	8LPM	8LPM
Pressure Drop (Typical)	0.16 Bar	0.31 Bar	0.38 Bar	0.61 Bar	0.62 Bar	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar
Pressure Drop (Typical)	2.4 psi	4.6 psi	5.5 psi	8.8 psi	9.1 psi	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi
DC Power Connector	3W3	3W3	5W5	5W5	5W5	3W3	3W3	5W5	5W5	5W5

Wavelength	385, 395, 405 nm
Peak Irradiance	16 W/cm²					12 W/cm²
Emitting Window (mm)	125x20	150x20	225x20	250x20	300x20	125x20	150x20	225x20	250x20	300x20
48V Power In (Max)	1211W	1454W	2180W	2423W	2907W	909W	1090W	1635W	1817W	2180W
48V Power In (Max)	25A	30A	45A	50A	61A	19A	23A	34A	38A	45A
Chiller/Cooler Capacity	993W	1192W	1788W	1987W	2384W	745W	894W	1341W	1490W	1788W
Chiller/Cooler Flow Rate	6LPM	6LPM	6LPM	8LPM	8LPM	6LPM	6LPM	6LPM	8LPM	8LPM
Pressure Drop (Typical)	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar
Pressure Drop (Typical)	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi
DC Power Connector	3W3	3W3	5W5	5W5	5W5	3W3	3W3	5W5	5W5	5W5

Wavelength	365 nm
Peak Irradiance	12 W/cm²
Emitting Window (mm)	125x20	150x20	225x20	250x20	300x20
48V Power In (Max)	909W	1090W	1635W	1817W	2180W
48V Power In (Max)	19A	23A	34A	38A	45A
Chiller/Cooler Capacity	745W	894W	1341W	1490W	1788W
Chiller/Cooler Flow Rate	6LPM	6LPM	6LPM	8LPM	8LPM
Pressure Drop (Typical)	0.16 Bar	0.18 Bar	0.21 Bar	0.39 Bar	0.40 Bar
Pressure Drop (Typical)	2.4 psi	2.6 psi	3.1 psi	5.6 psi	5.8 psi
DC Power Connector	3W3	3W3	5W5	5W5	5W5

Peak Irradiance: 8 to 24 W/cm² at 385, 395, 405 nm

Phoseon FireLine FL400 Datasheet

Phoseon FireLine FL400 User Manual

Modbus TCP Communication Protocols Technical Note

Printing
Coatings
Adhesives
