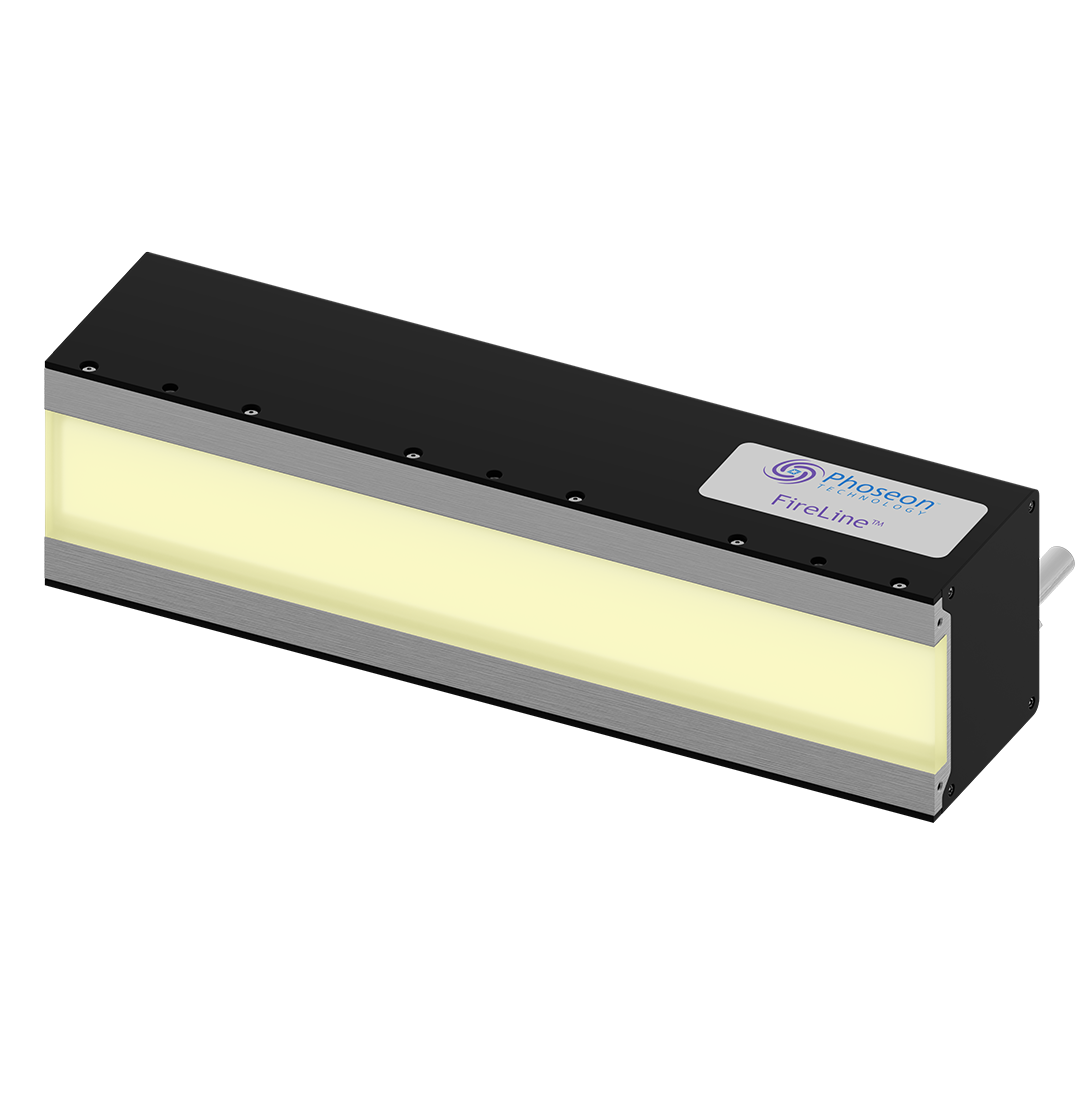

Phoseon FireLine FL440 UV LED Area Curing System

Phoseon FireLine FL440 UV LED Area Curing System

The FireLineā„¢ FL440 compliments the FireLine product series by delivering unparalleled total UV energy. This advanced system provides customers with a scalable, IP66-compliant solution that offers superior performance for curing applications requiring maximum UV output. This water-cooled UV LED curing system is ideal for applications requiring maximum UV power and exposure. The FireLine architecture allows for the system to be customized to various lengths based on printing requirements.

Featuring a 40mm-wide LED emitting window, the FireLine FL440 provides longer exposure times and delivers a greater dose of UV energy to ensure complete curing in single-pass applications. This enhances production speed by eliminating the need for multiple passes. The lamps are scalable to support custom length options and provide exceptional optical uniformity, ensuring consistent and reliable curing for even the most demanding printing applications. These products are available with Modbus TCP protocols for high-speed data exchange and remote access.

Ā  Ā  Ā
Wavelength 365 nmĀ  385, 395, 405nmĀ
Peak Irradiance 12 W/cm²  16 W/cm²
Emitting Window (mm) 125x40Ā  150x40Ā  225x40Ā  250x40Ā  300x40Ā  125x40Ā  150x40Ā  225x40Ā  250x40Ā  300x40Ā
48V Power In (Max)

1392WĀ

35AĀ

1670WĀ

42AĀ

2504WĀ

63AĀ

2743WĀ

69AĀ

3340WĀ

84AĀ

1600WĀ

33AĀ

1920WĀ

40AĀ

2880WĀ

60AĀ

3200WĀ

67AĀ

3840WĀ

80AĀ

Chiller/Cooler Capacity 1312WĀ  1575WĀ  2362WĀ  2625WĀ  3150WĀ  1312WĀ  1575WĀ  2362WĀ  2625WĀ  3150WĀ
Chiller/Cooler Flow Rate 4LPMĀ  6LPMĀ  6LPMĀ  8LPMĀ  8LPMĀ  4LPMĀ  6LPMĀ  6LPMĀ  8LPMĀ  8LPMĀ
Pressure Drop (Typical)

0.04 BarĀ

0.5 psiĀ

0.09 BarĀ

1.2 psiĀ

0.11 BarĀ

1.5 psiĀ

0.18 BarĀ

2.5 psiĀ

0.19 BarĀ

2.75 psiĀ

0.04 BarĀ

0.5 psiĀ

0.09 BarĀ

1.2 psiĀ

0.11 BarĀ

1.5 psiĀ

0.18 BarĀ

2.5 psiĀ

0.19 BarĀ

2.75 psiĀ

DC Power Connector 3W3Ā  5W5Ā  5W5Ā  5W5Ā  7W7Ā  3W3Ā  5W5Ā  5W5Ā  5W5Ā  7W7Ā

Ā

  • Peak Irradiance: 16 W/cm² at 385, 395, 405 nmĀ Ā

  • Peak Irradiance: 12 W/cm² at 365 nmĀ

  • Scalable architecture to enable custom lengthsĀ

  • Wide-emitting window delivers high dose for optimal curingĀ

  • High irradiance for high performance applicationsĀ

  • Exceptional optical uniformity to enable high quality curingĀ

  • Digital/analog control for ease of useĀ

  • Available with Modbus TCP communication protocol for high-speed data exchange and remote access

  • PrintingĀ

  • CoatingsĀ

  • Adhesives

Ā  Ā  Ā
Wavelength 365 nmĀ  385, 395, 405nmĀ
Peak Irradiance 12 W/cm²  16 W/cm²
Emitting Window (mm) 125x40Ā  150x40Ā  225x40Ā  250x40Ā  300x40Ā  125x40Ā  150x40Ā  225x40Ā  250x40Ā  300x40Ā
48V Power In (Max)

1392WĀ

35AĀ

1670WĀ

42AĀ

2504WĀ

63AĀ

2743WĀ

69AĀ

3340WĀ

84AĀ

1600WĀ

33AĀ

1920WĀ

40AĀ

2880WĀ

60AĀ

3200WĀ

67AĀ

3840WĀ

80AĀ

Chiller/Cooler Capacity 1312WĀ  1575WĀ  2362WĀ  2625WĀ  3150WĀ  1312WĀ  1575WĀ  2362WĀ  2625WĀ  3150WĀ
Chiller/Cooler Flow Rate 4LPMĀ  6LPMĀ  6LPMĀ  8LPMĀ  8LPMĀ  4LPMĀ  6LPMĀ  6LPMĀ  8LPMĀ  8LPMĀ
Pressure Drop (Typical)

0.04 BarĀ

0.5 psiĀ

0.09 BarĀ

1.2 psiĀ

0.11 BarĀ

1.5 psiĀ

0.18 BarĀ

2.5 psiĀ

0.19 BarĀ

2.75 psiĀ

0.04 BarĀ

0.5 psiĀ

0.09 BarĀ

1.2 psiĀ

0.11 BarĀ

1.5 psiĀ

0.18 BarĀ

2.5 psiĀ

0.19 BarĀ

2.75 psiĀ

DC Power Connector 3W3Ā  5W5Ā  5W5Ā  5W5Ā  7W7Ā  3W3Ā  5W5Ā  5W5Ā  5W5Ā  7W7Ā

Ā

  • Peak Irradiance: 16 W/cm² at 385, 395, 405 nmĀ Ā

  • Peak Irradiance: 12 W/cm² at 365 nmĀ

  • Scalable architecture to enable custom lengthsĀ

  • Wide-emitting window delivers high dose for optimal curingĀ

  • High irradiance for high performance applicationsĀ

  • Exceptional optical uniformity to enable high quality curingĀ

  • Digital/analog control for ease of useĀ

  • Available with Modbus TCP communication protocol for high-speed data exchange and remote access

  • PrintingĀ

  • CoatingsĀ

  • Adhesives
