Excelitas PYD 2792 SMD Dual-Channel DigiPyro Thermal IR detector
PART/ PYD 2792

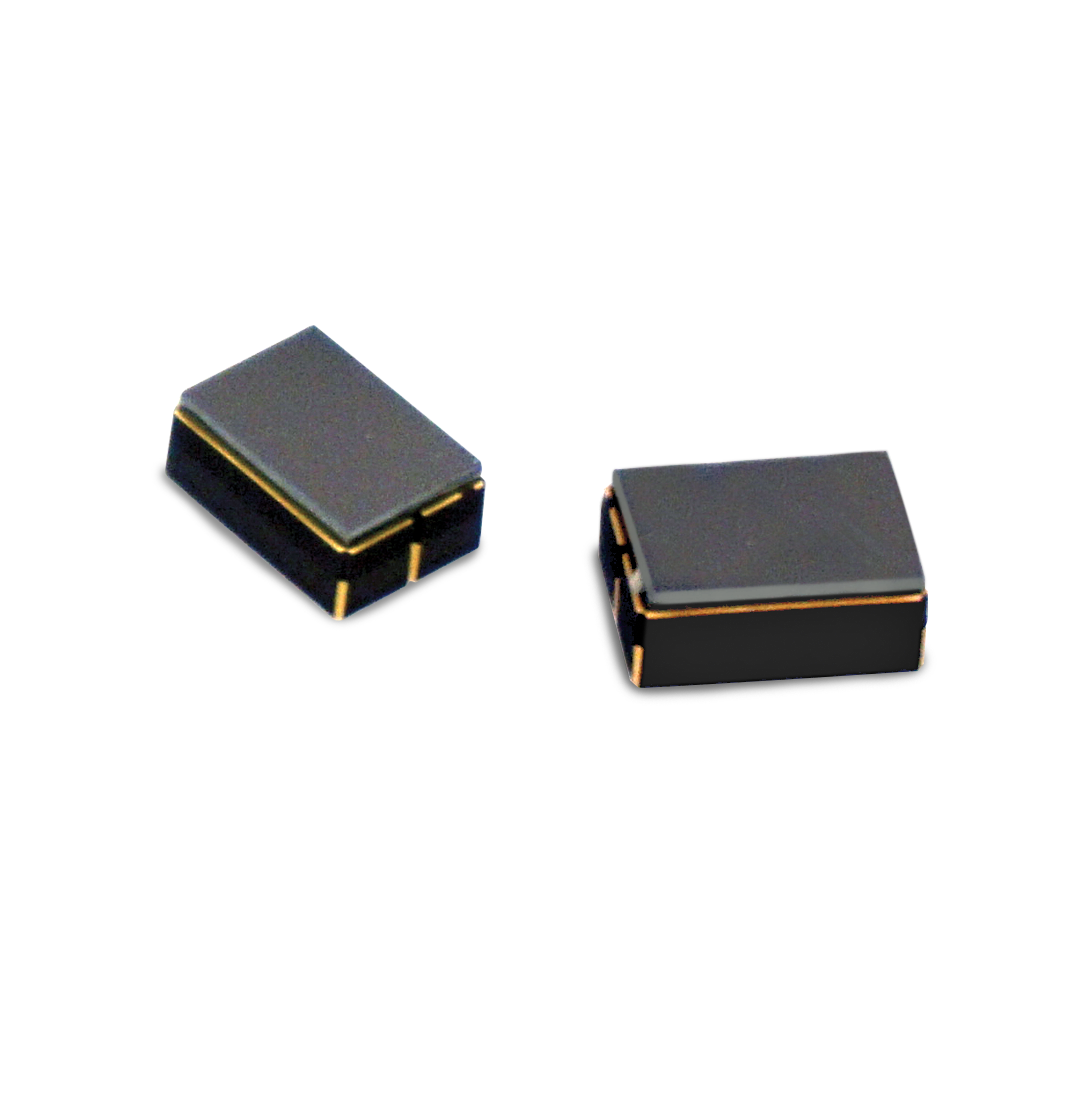

PYD 2792 Dual-Element SMD DigiPyro

The latest addition to our DigiPyro® Detector offering, this Dual-Element Pyrodetector features two standard elements in parallel connection designed into a compact SMD (surface mount) housing with optical window. In alignment with our innovative DigiPyro detectors family, this design streamlines integration to the host system with significantly reduced form factor and internal integrated circuitry to convert the element signals into a 14bit digital output.

Contact Us Find a Distributor

This Pyrodetector in SMD housing is part of the DigiPyro® family. An internal integrated circuitry converts the Element signals into a 14 bit digital output. In addition, an internal diode provides output related to the Pyro internal temperature. This makes the output signal into a 14 +14 bit signal. With its reduced voltage requirements, this device is well suited for battery operation in compact and mobile applications.

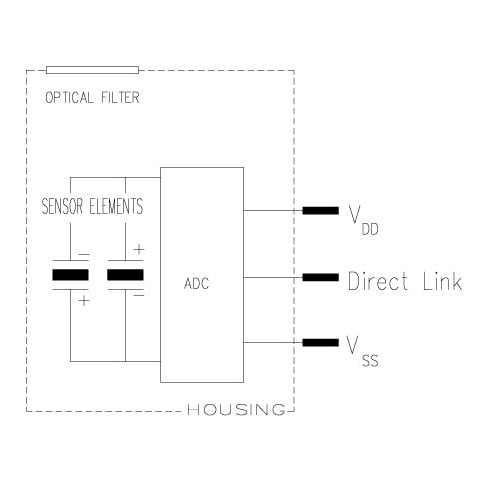

Excelitas PYD 2792 SMD Dual-Element DigiPyro wiring schematic

Data

  • Responsivity: 3.7 kV/W (typical)
  • Noise: 4 digits (typ), 12 digits(max)
  • Operation requirements: 1.8-3.6 V / 5 µA
  • Housing with optical window:  SMD , 7x5 mm
  • Field-of-view (horiz/vert): 146°/130°

Data

  • Responsivity: 3.7 kV/W (typical)
  • Noise: 4 digits (typ), 12 digits(max)
  • Operation requirements: 1.8-3.6 V / 5 µA
  • Housing with optical window:  SMD , 7x5 mm
  • Field-of-view (horiz/vert): 146°/130°
