Excelitas PYD 5731 Miniature Dual-Element DigiPyro
PART/ PYD 5731

PYD 5731 Miniature Dual-Element DigiPyro

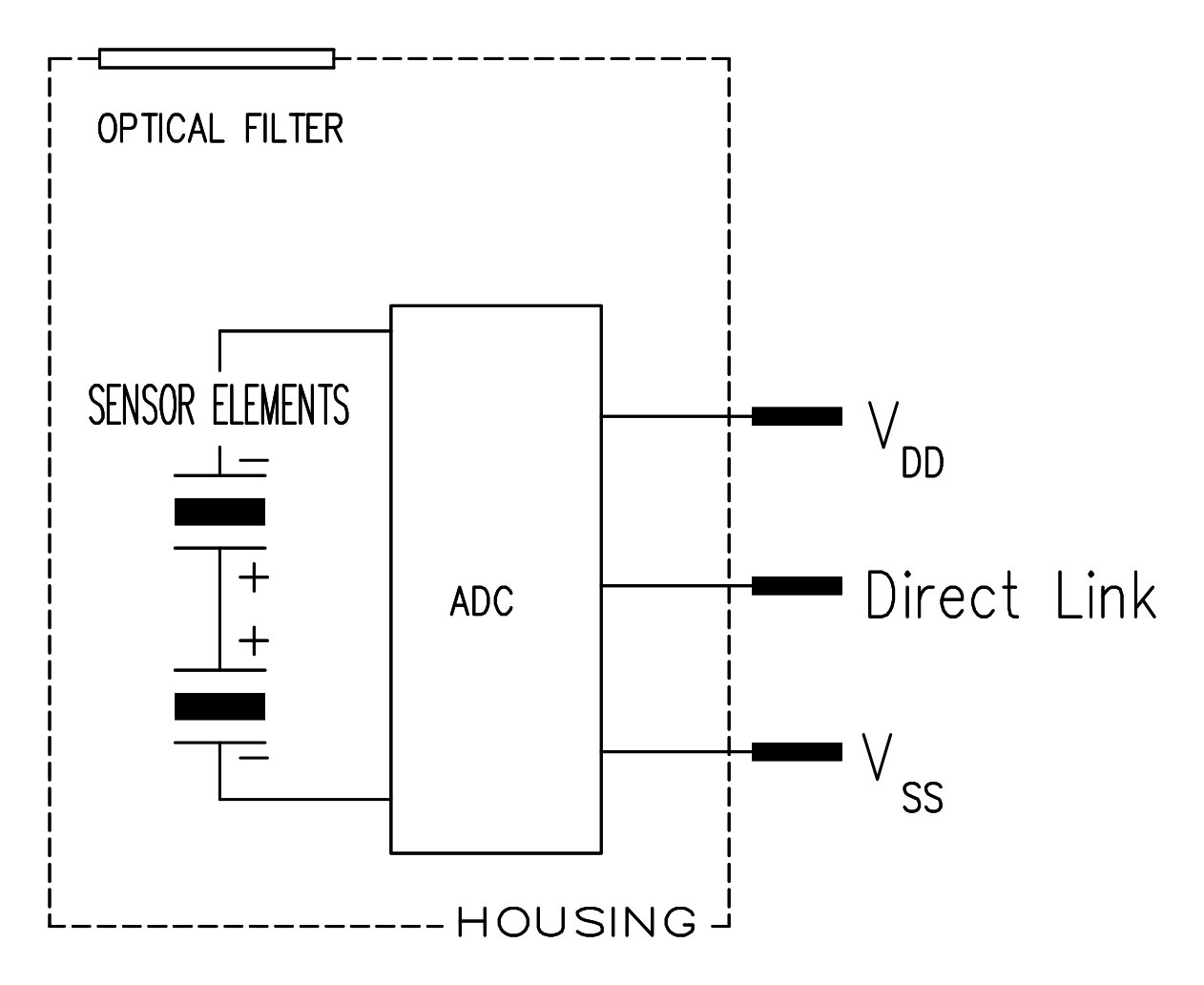

With the diameter of 4.7mm the PYD 5731 Miniature, Dual-Element DigiPyro® is one of the smallest designs in the Excelitas Pyrodetector portfolio. The PYD 5731 features two elements in a series connection within TO-46 Metal Housing and an optical window. This Detector is part of the DigiPyro family that feature internal integrated circuitry to convert the element signals into a 14-bit digital output.

This Pyrodetector features a miniaturized Dual-Element Pyro in TO-46 housing with 4.7mm diameter and 3.3 case height. Furthermore, with the PYD 5731 Excelitas extends the emerging DigiPyro® family to miniaturized detector designs. The PYD 5731 offers the same Direct Link interface as the regular PYD 1798 DigPyro.



The miniature housing, in conjunction with a reduced element size and spacing, enables customers to reduce the size of their optics and innovate more compact product designs.

Features

  • Integrated digitization
  • High responsivity ceramic pyroelectric elements
  • Dual detector with 1.4 × 0.4 mm2 elements
  • 99° Field-of-view
  • Miniature TO-46 metal housing for high EMI immunity
  • Best for advanced motion detection algorithms

Applications

  • Mid distance motion detection (with lens)
  • Energy saving applications
  • Intrusion alarms
  • Horizontal mounting applications



  • Responsivity: 11 kV/W (typical)
  • Noise: 10 digits (typ), 27 digits (max)
  • Operation requirements: 2.7-3.6 V / 10 µA
  • Housing with optical window: TO-46
  • Field-of-view (horiz/vert): 99°/88°



  • Responsivity: 11 kV/W (typical)
  • Noise: 10 digits (typ), 27 digits (max)
  • Operation requirements: 2.7-3.6 V / 10 µA
  • Housing with optical window: TO-46
  • Field-of-view (horiz/vert): 99°/88°
