VTD205KH - Si PD, SFH205K equivalent, TO-92, 7.41mm2

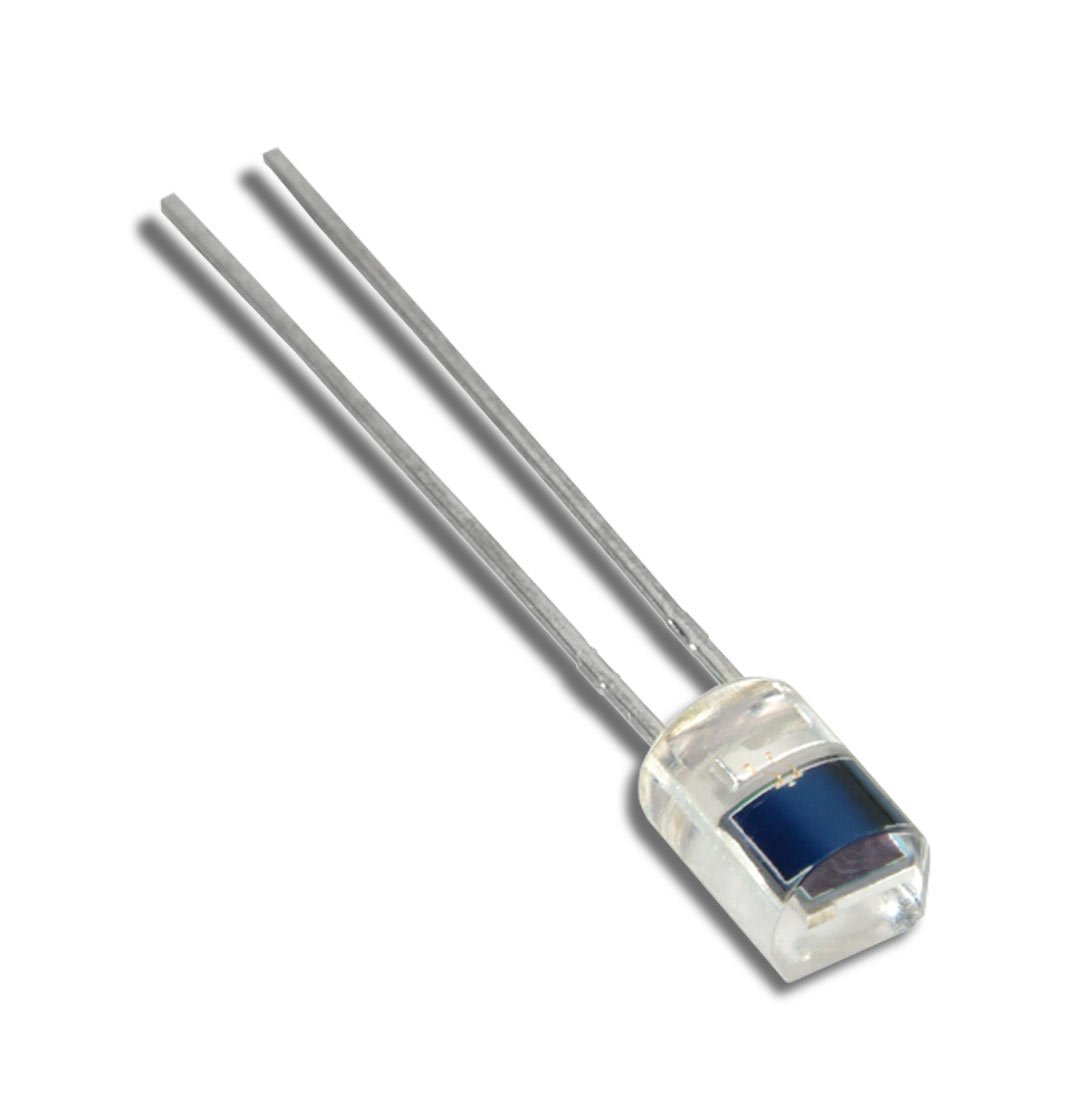

The VTD205KH is a silicon photodiode in TO-92 side-looker clear package and a SFH205K industry equivalent. This photodiode provides a low dark current, fast response and a wide field-of-view.
This silicon photodiode provdies a 7.41 mm2 active area designed for a spectral response between 400 nm and 1100 nm.
Our VTD Series are photodiodes which have been used in many applications as replacements for competitive devices. These photodiodes exhibits low dark current under reverse bias and a fast speed of response.
Features & Benefits:
- Visible to IR spectral range
- Peak wavelength: 925 nm
- Medium size active area
- Low dark current
- Fast response
- RoHS compliant
Applications:
- Coin counters
- Automotive
Active area = 7.41 mm2 active area
Short Circuit Current = Minimum 50 µA at 1000 Lux, 2850 K
Dark Current = Maximum 30 nA at 10 V Reverse Bias
Junction Capacitance = Typical 72 pF at 0V Bias
Rise/Fall time = Typical 20 ns, with 50 Ω load, 5 V Reverse bias, 850 nm
Spectral Range = 400 nm to 1100 nm
Peak Spectral Response = 925 nm
Sensitivity at peak Wavelength = Typical 0.60 A/W
Angular Response = ±60 Degrees at 50 % Response
