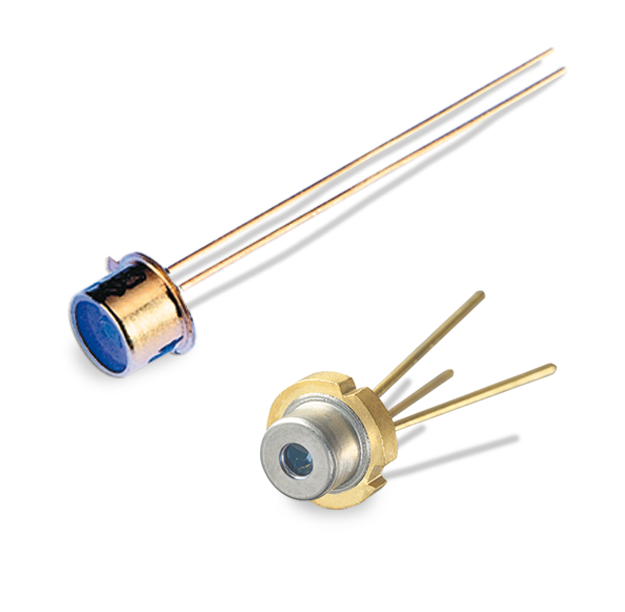

The PGA Series of high performance pulsed laser diodes offers a wide variety of configurations for the most demanding applications. With various hermetic metal-can packages, these Pulsed Laser Diodes (PLDs) are designed to outperform in harsh environments. Comprising of stripe widths as narrow as 75 µm and power levels up to 300 W, finding the right pulsed laser diode for your application has never been easier.
With decades of industry experience, Excelitas has established an outstanding reputation for providing advanced photonic solutions that consistently meet the needs of our OEM and end-user customers across the globe. Our comprehensive portfolio consists of highly sensitive, high-performance photonic detectors and pulsed laser diodes that contribute to advancing technology and innovation for our customers.
905nm Pulsed Semiconductor Laser Diodes are a specific type of diode that emits light in pulses rather than beams at a wavelength of 905 nm. These components generate high-intensity bursts of light that can range from nanoseconds to microseconds, depending on the design and intended application.
Excelitas’ PGA series of high-performance pulsed laser diodes offers a wide variety of configurations that meet the requirements of even the most demanding applications. Their unique characteristics make them suitable for applications that require intense bursts of laser energy or rapid switching, such as in light detection and ranging (LiDAR), range finding and laser spectroscopy.
Excelitas offers a broad range of 905nm Pulsed Semiconductor Laser Diodes through the PGA series, designed for easy integration within your specific application.
Learn more about the PGA series below:
PGAS1S03H - 905nm Single-Cavity 3 mils PLD - metal-packaged, high-efficiency 905 nm laser diode that comprises a single stack, single cavity chip with a 75 µm stripe width and provides 8 W at 10 A.
DPGAS1S03H - 905nm Dual-Cavity 3 mils PLD - comes in a single stack, dual cavity chip with a 75 µm stripe width, providing 16 W at 10 A when tested with a 100 ns wide pulse.
TPGAS1S03H - 905nm Triple-Cavity 3 mils PLD - has similar specifications to that of the DPGAS1S03H but comes in a single stack, triple cavity chip with a 75 µm stripe width, providing 24 W at 10 A tested with a 100 ns wide pulse.
QPGAS1S03H - 905nm Quad-Cavity 3 mils PLD - provides 31 W at 10 A with a single stack, quad cavity chip with a 75 µm stripe width.
PGAS1S06H - 905nm Single-Cavity 6 mils PLD - high-efficiency diode that comprises a single stack, single cavity chip with a 150 µm stripe width, which provides 15 W at 15 A, tested with a 150 ns wide pulse.
PGAS1S09H - 905nm Single-Cavity 9 mils PLD - comprises a single stack, single cavity chip with a 225 µm stripe width, which provides 22 W at 22 A, tested with a 150 ns wide pulse.
DPGAS1S09H - 905nm Dual-Cavity 9 mils PLD - comprises a single stack, single cavity chip with a 225 µm stripe width, which provides 50 W at 30 A, tested with a 100 ns wide pulse.
TPGAS1S09H - 905nm Triple-Cavity 9 mils PLD - comprises a single stack, triple cavity chip with a 225 µm stripe width, which provides 75 W at 30 A, tested with a 100 ns wide pulse.
QPGAS1S09H - 905nm Quad-Cavity 9 mils PLD - single stack, quad cavity chip with a 225 µm stripe width, which provides 100 W at 30 A, tested with a 100 ns wide pulse.
PGAS1S12H - 905nm Single-Cavity 12 mils PLD - a metal-packaged, high-efficiency pulsed laser diode that comprises a single stack, single cavity chip with a 300 µm stripe width, providing 30 W at 30 A tested with a 150 ns wide pulse.
PGAS1S16H - 905nm Single-Cavity 16 mils PLD - a metal-packaged, high-efficiency pulsed laser diode that comprises a single stack, single cavity chip with a 400 µm stripe width, providing 40 W at 40 A tested with a 150 ns wide pulse.
PGAS1S24H - 905nm Single-Cavity 24 mils PLD - a metal-packaged, high-efficiency pulsed laser diode that comprises a single stack, single cavity chip with a 600 µm stripe width, providing 60 W at 60 A tested with a 150 ns wide pulse.
PGAS2S03H - 905nm Triple-Cavity Two-Stack 3 mils PLD - a metal-packaged, high-efficiency pulsed laser diode that comprises a single stack, triple cavity chip with a 75 µm stripe width, providing 45 W at 10 A tested with a 100 ns wide pulse.
QPGAS2S03H - 905nm Quad-Cavity Two-Stack 3 mils PLD - a high-efficiency pulsed laser diode that comes in a metal package that comprises a dual-stack, quad cavity chip with a 75 µm stripe width, providing 62 W at 10 A tested with a 100 ns wide pulse.
TPGAS2S09H - 905nm Triple-Cavity Two-Stack 9 mils PLD - a high-efficiency pulsed laser diode that comes in a metal package that comprises a dual-stack, triple cavity chip with a 225 µm stripe width, providing 150 W at 30 A tested with a 100 ns wide pulse.
QPGAS2S09H - 905nm Quad-Cavity Two-Stack 9 mils PLD - a high-efficiency pulsed laser diode that comes in a metal package that comprises a dual-stack, quad cavity chip with a 225 µm stripe width, providing 200 W at 30 A tested with a 100 ns wide pulse.
QPGAS3S03H - 905nm Quad-Cavity Triple-Stack 3 mils PLD - a high-efficiency pulsed laser diode that comes in a metal package that comprises a triple-stack, quad cavity chip with a 75 µm stripe width, providing 90 W at 10 A tested with a 100 ns wide pulse.
QPGAS3S09H - 905nm Quad-Cavity Triple-Stack 9 mils PLD - a high-efficiency pulsed laser diode that comes in a metal package that comprises a dual-stack, quad cavity chip with a 225 µm stripe width, providing 300 W at 30 A tested with a 100 ns wide pulse.
Excelitas’ comprehensive laser diode portfolio offer reliability and robust performance in terms of delivery of power, pulse duration and repetition rate, which are qualities well-suited for the following applications:
For decades, Excelitas has been a consistent manufacturer and supplier of various laser diode solutions to our customers worldwide. We have consistently upheld the quality and dependability of our products while advancing our technology to ensure seamless integration into your applications. In cases where our customers are unable to find the right components bearing their required specifications, we are more than happy to collaborate closely and tailor a solution that perfectly matches their specific needs while ensuring highest quality, robustness and quick time-to-market. Get in touch with us today.
