905nm PLD in S package
PART/ DPGAS1S03H

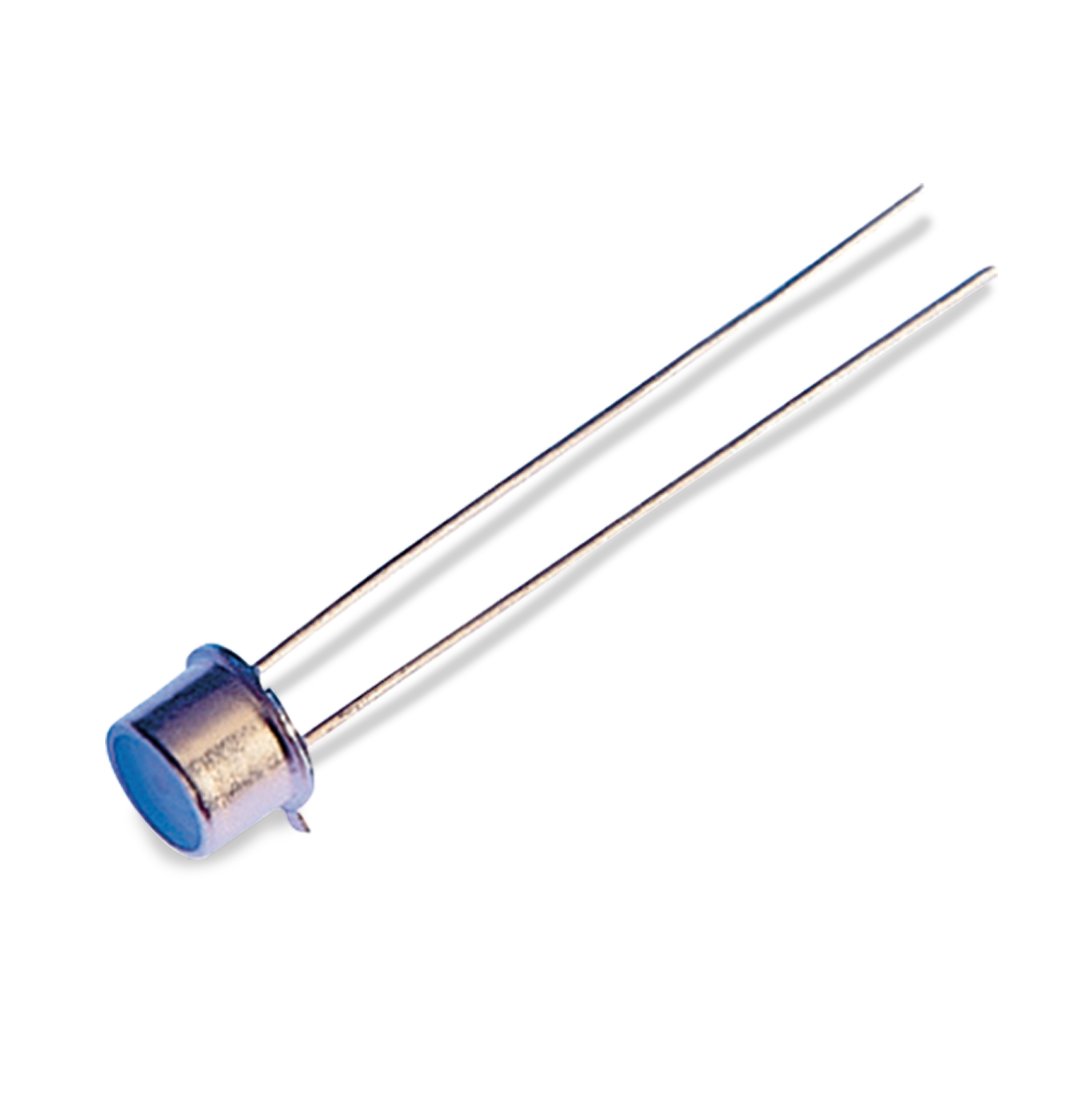

DPGAS1S03H - 905nm Dual-Cavity 3 mils PLD

The DPGAS1S03H is a metal packaged high efficiency 905 nm pulsed laser diode, comprised of a single stack, dual cavity chip with a 75 µm stripe width. It provides 16 W @ 10 A tested with a 100 ns wide pulse, and is offered in various other packages.

This multi-cavity 905 nm pulsed laser diode is designed in metal packaging for advanced range finding applications.

We offer a broad range of 905 nm lasers including multi-cavity monolithic structures with up to four active cavities per chip. This results in up to 100 W of peak optical output power. Physically stacking of up to three laser chips results in up to 300 W of peak optical power.

• 905 nm pulsed laser
• DPGA series: Double cavity chip series
• Range of single chip and stacked devices
• Multi cavity lasers concentrate emitting source size
• Quantum well structure
• High peak pulsed power
• Excellent power stability with temperature

• 905 nm pulsed laser
• DPGA series: Double cavity chip series
• Range of single chip and stacked devices
• Multi cavity lasers concentrate emitting source size
• Quantum well structure
• High peak pulsed power
• Excellent power stability with temperature
