X-Ray Power Supplies

The Excelitas family of high-voltage X-ray power supplies are highly regulated designs created for the demanding requirements of X-ray systems.  These power supplies provide high voltage for X-ray tube, filament power and closed-loop emission current control.  Some units run continuously at full power and others are designed for lower duty cycle applications that have high peak power demands.

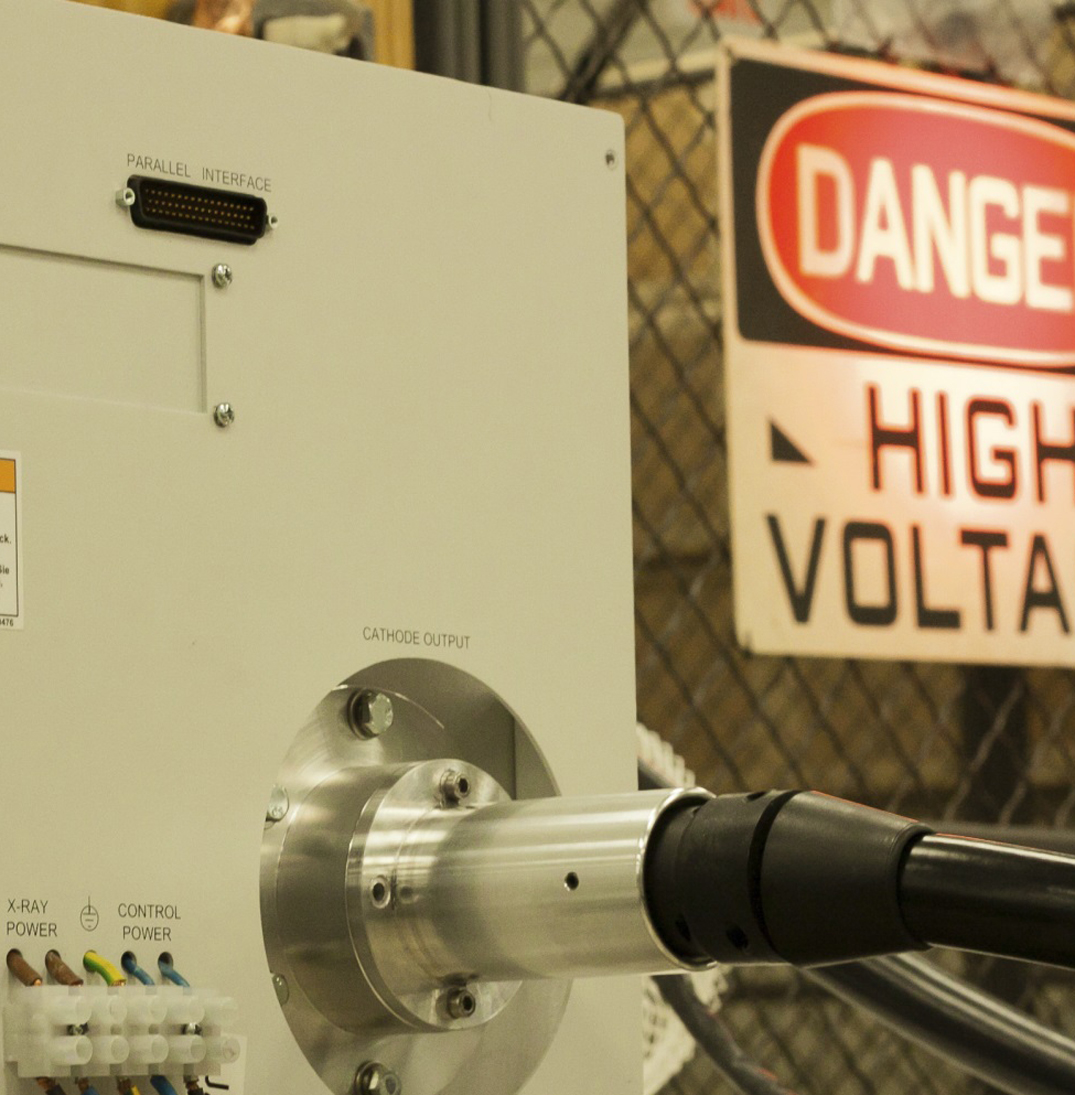

X-ray power supply under test

Product List

125kV 250mA X-Ray power supply
Part Number
125kV, 250ma X-Ray Power Supply

125kV, 250mA X-Ray Power Supply 1102502

1102502 series supply is a 125 kV/250 mA CT X-Ray PS is highly regulated Power Supply with high frequency power conversion technology used for all power supply functions. It is designed for a high-power rotating anode X-ray tube and produces -125 kV at 250 mA in a Standard Operational Mode, -130 kV at 10 mA in a Tube Conditioning Operational Mode.
XRSE 4kW Single Filament High Voltage Generator
Part Number
1101682-X

160kV, 25mA X-Ray Power Supply 1101682

The XRSE High-Voltage Power Supply is a highly regulated power supply designed for use in an X-ray system. The supply provides high voltage for the X-ray tube, filament power and closed-loop emission current control. The unit is designed to run continuously at full output. High-frequency power conversion technology is used for all power supply functions. Extensive internal interlocks and diagnostics are incorporated to provide reliable and safe operation. Excelitas also designs and manufacturers complete X-ray sources under the Omniblock® brand, containing the X-ray tube, power supply and integrated cooling system.
1101339-X Power Supply
Part Number
1101339-X

180kV, 16mA X-Ray Power Supply 1101339

The 180 kV/16 mA CT X-Ray PS is highly regulated Power Supply designed for use in an X-Ray computer tomography (CT) system. The unit is designed to run continuously at full output while mounted on a rotating gantry at speeds to 120 rpm up to 25 G. The high-voltage tank assembly is filled with oil for purposes of electrical insulation and cooling. Extensive internal interlocks and diagnostics are incorporated to provide safe and highly reliable operation.
